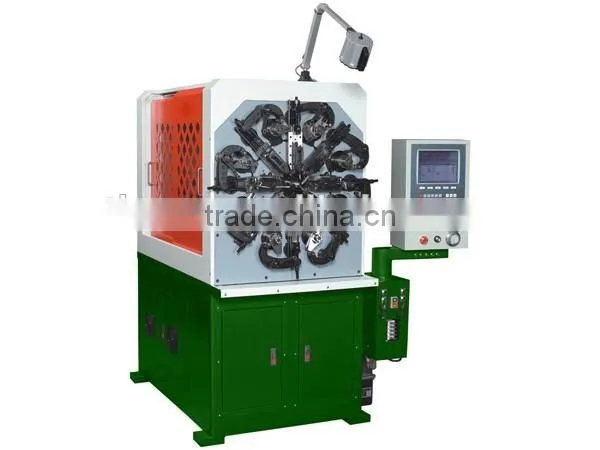

5-axis CNC Universal Spring Making Machine
USPK-525 USPK-540
Technical Parameter
USPK-525
Model | USPK-525 |
Axis Count | 5 axis |
Wire Size Range | φ0.2-2.5mm |
Max Outside Diameter | φ65mm |
Max Feeding Speed | 120m/min |
Max Wire Feeding Length | Unlimited |
Wire Feeding Wheel Count | 2 pairs |
Wire Feeding Servo Motor | 2.9kw |
Cam Servo Motor | 2.9kw |
Wire Rotation Servo Motor | 2.9kw |
Quill Servo Motor | 1.0kw |
Spinner Servo Motor | 0.75kw |
Dimension(LxWxH) | 1440x1000x1650mm |
Weight | 1500kg |
Power AC | 3-380V AC 50Hz |
USPK-540
Model | USPK-540 |
Axis Count | 5 axis |
Wire Size Range | φ1.2-4.0mm |
Max Outside Diameter | φ65mm |
Max Feeding Speed | 72m/min |
Max Production Rate | 60pcs/min |
Feeding Motor SGMGV-44A | 3.8kw |
Quill Motor SGMGV-15A | 1.0kw |
Wire Rotation Motor SGMGV-44A | 3.8kw |
Cam Motor SGMGV-13A | 3.8kw |
Spinner Motor SGMGV-09A | 1.0kw |
Dimension(LxWxH) | 2400x1500x1800mm |
Weight | 2500kg |
Power AC | 3-380V AC 50Hz |
Performance and Feature

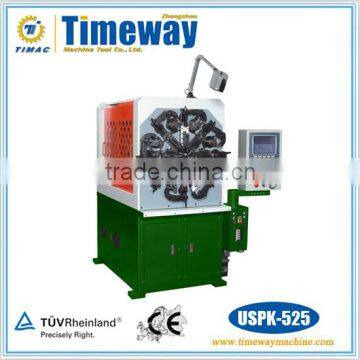

USPK-525
- USPK-525 five Axis CNC Versatile Spring Rotating Forming Machine adopts TaiWan CNC control system and Janpan Yaskawa Servo Motor to control the feeding system and Cam system synchronously .
- It has total 5 axis,the Cam axis,Feeding axis,Quill Rotary axis,the Wire rorary axis and the Spinner axis.
- This machine is suitable for making various Compression spring, Extension spring, single(double) torsion spring, Tower shaped compression spring, Flat wire spring, and any kind wire forming.

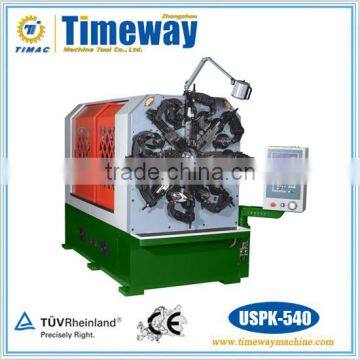

USPK-540
- USPK-540 five axis CNC spring forming machine, referred to as the 5 axis machine, the standard process of wire diameter is 1.2-4.0mm, mainly used for processing various spring, compression spring, torsion spring, single (double) flat wire spring, shaped spring and complex product line forming.
- USPK-540 type five axis computer spring machine, using the Taiwan computer program control, adopts the advanced Japanese industrial servo motor, imported high precision bearing and high quality alloy panels, through the CNC code can be respectively on the wire feeding system and cam drive system of synchronous control, can achieve precise 24 hours of operation.
Other Spring Machine(Universal Spring Machine)
SPK-30 SPK-40
USPK-540 USPK-40

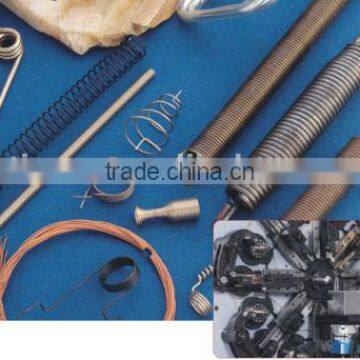

Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
