Eight Axes CNC High Efficiency Spring Bending Machine

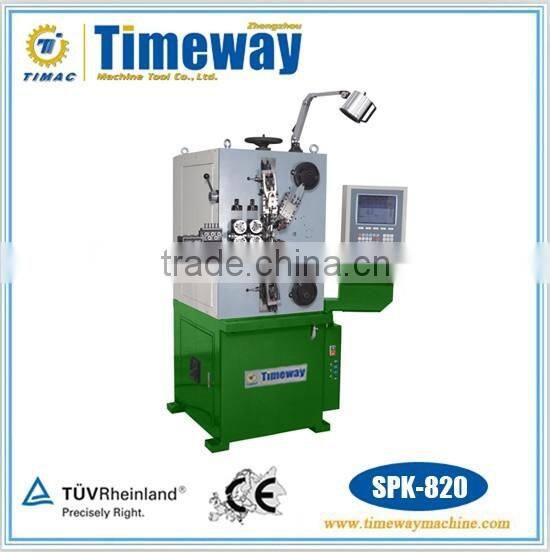

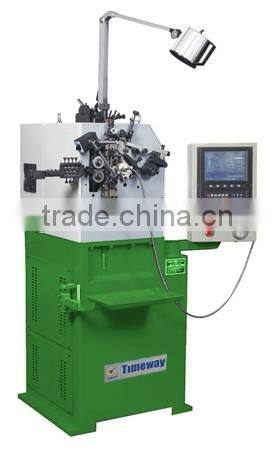

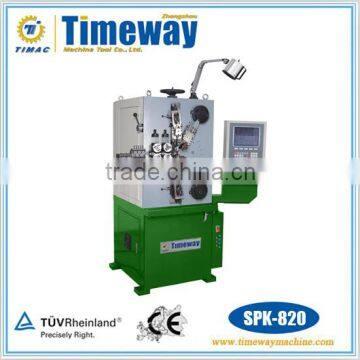

SPK-820 SPK-610
Technical Parameter
Model | SPK-820 | SPK-610 |
Number Of Axis | 8 Axis | 6 Axis |
Wire Size Range | φ0.4-2.0mm | φ0.1-1.0mm |
Max Outside Diameter | φ50mm | φ20mm |
Max Pitch Of Spring | 33mm | 30mm |
Max Feeding Speed | 300m/min | 300m/min |
Spring Index | 3 | 3 |
Feeding Roller Pairs | 2 Pairs | 1 Pairs |
Feeding Servo Motor | 1.8kw | 1.0kw |
Cutter Servo Motor | 0.6kwx2 | 0.4kwx2 |
Cam Servo Motor | 0.4kwx2 | 0.2kwx2 |
Pitch Servo Motor | 0.2kw | 0.1kw |
Mandrel Moving Up-down Motor | 0.75kw | - |
Mandrel Return Servo Motor | 0.4kw | - |
Power AC | 3-380VAC | 3-380VAC |
Dimension (LxWxH) | 900x1100x1700mm | 640x702x1531mm |
Weight | 610kg | 400kg |
Performance and Feature
- This is a machine especially for making compression spring.
- It is new in design, stable in operation. Precise in the products it make.
- The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
- With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
- With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate.
Other Spring Machine
SPK-30 SPK-40
SPK-660 SPK-8

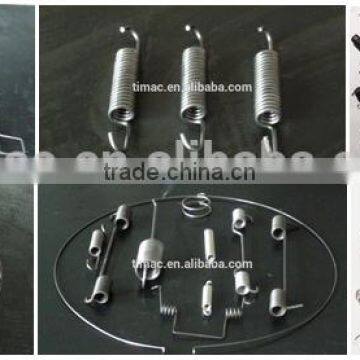

Workpiece Sample

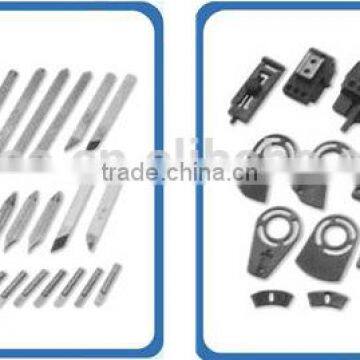

Spring Tool

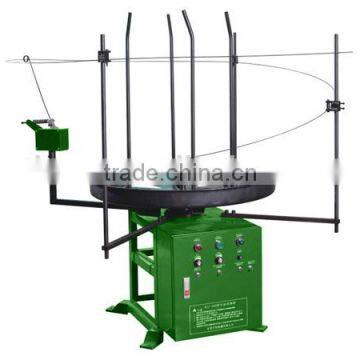

Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
