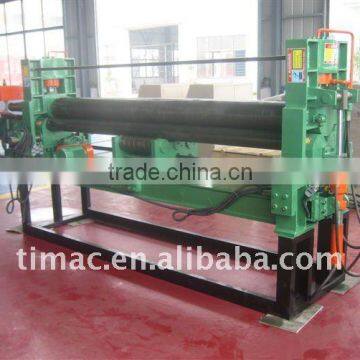

Upper Roller Universal 3 Rollers Plate Bending Machine

Upper Roller Universal 3 Rollers Plate Bending Machine thumbnail-1
Upper Roller Universal 3 Rollers Plate Bending Machine photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
UTR-8x1500, UTR-6x2000, UTR-9x2500, UTR-10.5x3000
Machine Type:
Roller-Bending Machine
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TIMAC
Model Number UTR-8x1500, UTR-6x2000, UTR-9x2500, UTR-10.5x3000
Machine Type Roller-Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services Other, Prebending
Certification ISO 9001:2000

Upper Roller Universal 3 Rollers Plate Bending Machine



Features:
1. Superior product precision:
     The unique bending craft, High accurate end pre-bending, does not have the clearance angle bending continuously,
2. Man-machine conversation control interface, highly effective intelligent operation
3. Physical bending craft software, man-machine conversation window, bending process automatic compensation.
4.Rich bending shape
    Have the different shapes such as O,U,multistage R and so on.

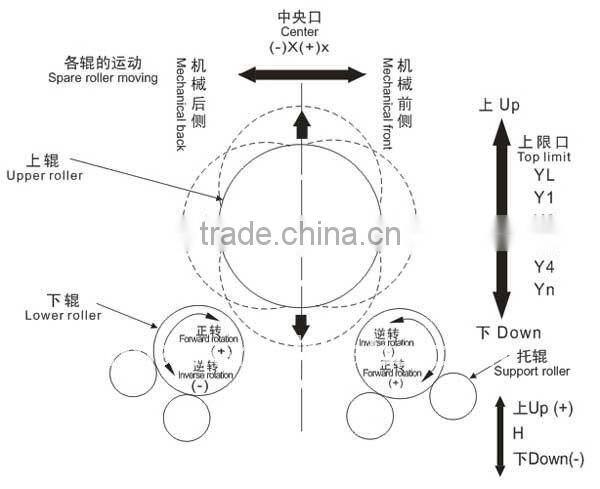

Upper roller universal 3 rollers plate bending machine



Model Upper roller press Max. plate thickness Max. plate width Upper roller diameter Lower roller diameter Distance between two roller centers Motor power(kw)
(Tons) Prebend Middle   (mm) (mm) (mm) (mm) Driving motor Hydraulic motor Moving motor
(mm) (mm)
UTR-8x1500 25 6 8 1500 175 125 160 3 2.2 0.75
UTR-6x2000 25 4.5 6 2000 195 125 160 3 2.2 0.75
UTR-8.5x1500 30 6.5 8.5 1500 185 125 160 3 2.2 0.75
UTR-7.5x2000 30 5.5 7.5 2000 205 125 160 3 2.2 0.75
UTR-10x1500 37 8 10 1500 205 135 180 4 2.2 0.75
UTR-8.5x2000 37 6.5 8.5 2000 220 135 180 4 2.2 0.75
UTR-8x2500 37 5.7 8 2500 235 135 180 4 2.2 0.75
UTR-11x1500 45 9 11 1500 215 135 180 4 2.2 0.75
UTR-10x2000 45 7.5 10 2000 235 135 180 4 2.2 0.75
UTR-9x2500 45 6.5 9 2500 245 135 180 4 2.2 0.75
UTR-11x2000 55 9 11 2000 245 145 200 5.5 4 0.75
UTR-10.5x2500 55 8 10.5 2500 255 145 200 5.5 4 0.75
UTR-9.5x3000 55 7 9.5 3000 275 145 200 5.5 4 0.75
UTR-12x2000 65 10 12 2000 250 145 200 5.5 4 0.75
UTR-11.5x2500 65 9 11.5 2500 265 145 200 5.5 4 0.75
UTR-10.5x3000 65 8 10.5 3000 280 145 200 5.5 4 0.75
