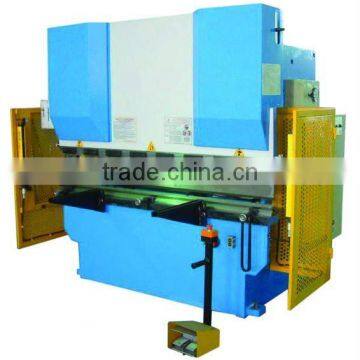

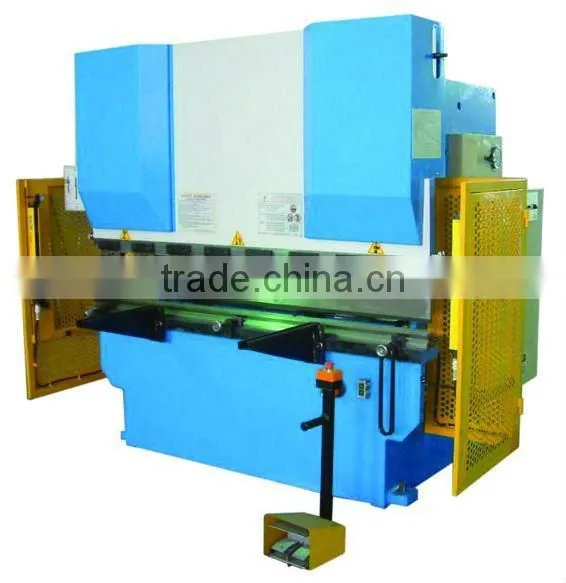

(CNC) Hydraulic Press Brake HPB-63/3200, HPB-125/4000, CPB-160/6000

(CNC) Hydraulic Press Brake HPB-63/3200, HPB-125/4000, CPB-160/6000 thumbnail-1
(CNC) Hydraulic Press Brake HPB-63/3200, HPB-125/4000, CPB-160/6000 photo-1
US$ 9,990 - 999,990 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
HPB-63/3200, HPB-125/4000, CPB-160/6000, CPB-700/7000, ......
Machine Type:
Press Brake
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TIMAC
Model Number HPB-63/3200, HPB-125/4000, CPB-160/6000, CPB-700/7000, ......
Machine Type Press Brake
Raw Material Sheet / Plate Rolling
Material / Metal Processed Other, Steel
Power Other, Hydraulic, CNC
Automation Automatic

(CNC) Hydraulic Press Brake



* The press brake adoption whole steel welded structure, and it has enough intensity and rigidity.

* The RAM stroke and the back gauge can be automatically adjusted by CNC controller.

* A hydraulic system is used for the machine.

* A feeding valve is used to speed up the RAM travel to save energy.

* The operations of the machine are realized by the hydraulic valves.

* A gear pump is used to reduce the noise of the machine, which can achive the environmental standard.

 * The dies are made of carbon steel, which have good rigidity and durable, and they are equipped with adjusting wedges of high precision.

* The CNC system can auto calculate the bending angle.

* The CNC system can also realize alarming function, which can avoid overload and damage to machine.



Model Nominal pressure Length of working table Distance between uprights Throat depth Ram stroke Motor power
KN mm mm mm mm kw
40/2200 400 2200 1700 200 100 4
40/2500 400 2500 1900 200 100 4
50/2500 500 2500 1900 250 100 4
50/3200 500 3200 2500 250 100 4
63/2500 630 2500 1900 250 120 5.5
63/3200 630 3200 2500 250 120 5.5
80/3200 800 3200 2500 250 120 5.5
80/4000 800 4000 3000 250 120 5.5
100/2500 1000 2500 1900 320 120 7.5
100/3200 1000 3200 2500 320 120 7.5
100/4000 1000 4000 3000 320 120 7.5
100/5000 1000 5000 4000 320 120 7.5
125/2500 1250 2500 1900 320 120 7.5
125/3200 1250 3200 2500 320 120 7.5
125/4000 1250 4000 3000 320 120 7.5
125/5000 1250 5000 4000 320 120 7.5
160/3200 1600 3200 2500 320 200 11
160/4000 1600 4000 3000 320 200 11
160/5000 1600 5000 4000 320 200 15
160/6000 1600 6000 4800 320 200 15
200/3200 2000 3200 2600 320 200 15
200/4000 2000 4000 3100 320 200 15
200/5000 2000 5000 4000 320 200 15
200/6000 2000 6000 4800 320 200 15
250/3200 2500 3200 2600 400 250 18.5
250/4000 2500 4000 3200 400 250 18.5
250/5000 2500 5000 4000 400 250 18.5
300/4000 3000 4000 3300 400 250 22
300/5000 3000 5000 4000 400 250 22
300/6000 3000 6000 5800 400 250 22
400/5000 4000 5000 4000 400 250 30
400/6000 4000 6000 4800 400 250 30
500/6000 5000 6000 4800 400 300 37
600/7000 6000 7000 5600 400 300 45
700/7000 7000 7000 5600 400 300 45
