Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > Electric 3-IN-1 Combina of Shear, Brake & Roll Machine

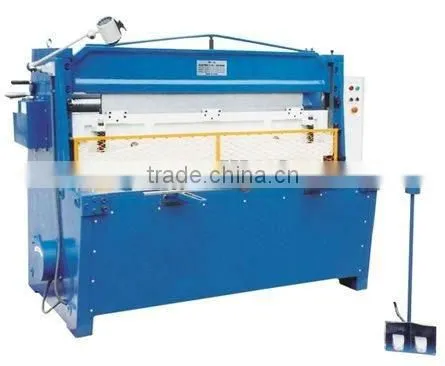

Electric 3-IN-1 Combina of Shear, Brake & Roll Machine
US$ 5,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
E3-IN-1/2040
Machine Type:
Roll Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ESR1300X2.5 Electric Slip Roll MachineNegotiableMOQ: 5 Sets -
Hydraulic Hose Crimping MachineUS$ 4,000 - 5,500MOQ: 1 Set
-
Three Rollers Asymmetric Rolling MachineUS$ 6,990 - 999,990MOQ: 1 Set
-
Upper Roll Universal Three Rollers Rolling MachineUS$ 9,990 - 999,990MOQ: 1 Set
-
W24Y-500 HYDRAULIC SECTION BENDERNegotiableMOQ: 1 Set
Brand Name
TIMAC
Model Number
E3-IN-1/2040
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Aluminum
Power
Other, Electric
Automation
Automatic
Extra Services
Buffing / Polishing
Certification
ISO 9001:2000
Specifications
Shear Brake Roll Combination Machine1) Max. shearing width:1320/2040mm
2) Max. shearing thickness:3mm
3-IN-1 combination shearing and press brake and Slip roll Machine
Feature:
Combination machine of shear,brake & roll. |
1) For shearing, lt can achieve single stroke and continuous stroke processing function. |
| 2) For bending, there are three funtion:Jogging single stroke and continuous stroke. |
3) For rolling there are two function; Jogging and continuous stroke. |
| 4) This machine is the ideal equipment for sheett-metal working. |
Parameter:
| Model | Unit | E3-IN-1/1320 | E3-IN-1/2040 |
| Max. shearing thickness | mm | 3 | 3 |
| Max. shearing width | mm | 1320 | 2040 |
| Shearing angle | 2° | 2° | |
| Number of stroke | per min | 30 | 30 |
| Back-gauge range | mm | 450 | 450 |
| Height of worktable | mm | 760 | 760 |
| Max. bending thickness | mm | 2 | 2 |
| Max. bending width | mm | 1320 | 2040 |
| Max. rolling thickness | mm | 3 | 3 |
| Max. rolling width | mm | 1500 | 2100 |
| Min. rolling dia. | mm | 90 | 120 |
| Motor power | kw | 3 | 4 |
| N.W./G.W. | kg | 2300/2800 | 3500/3800 |
| Packing size | cm | 254x145x197 |
