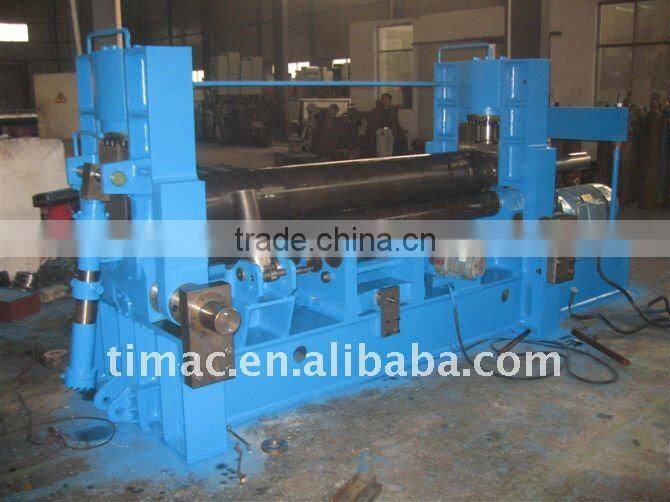

Upper Roller Universal 3 Rollers Plate Rolling Machine

Specifications

1. Upper roller universal plate rolling machine
2. Prebending function
3. Taper rolling
4. Hydraulic type
5. CNC available

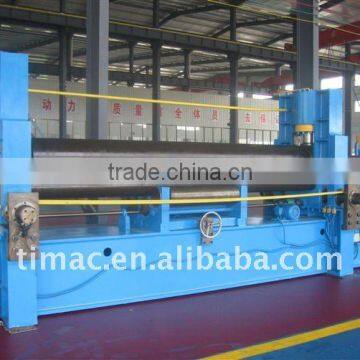

Upper Roller Universal 3 Rollers Plate Rolling Machine

Features:
1. Superior product precision:
     The unique bending craft, High accurate end pre-bending, does not have the clearance angle bending continuously,
2. Man-machine conversation control interface, highly effective intelligent operation
3. Physical bending craft software, man-machine conversation window, bending process automatic compensation.
4.Rich bending shape
    Have the different shapes such as O,U,multistage R and so on.





Model	Upper roller press	Max. plate thickness		Max. plate width	Upper roller diameter	Lower roller diameter	Distance between two roller centers	Motor power(kw)
	(Tons)	Prebend	Middle	(mm)	(mm)	(mm)	(mm)	Driving motor	Hydraulic motor	Moving motor
		(mm)	(mm)
UTR-15x2000	75	12	15	2000	255	150	245	7.5	4	1.1
UTR-14x2500	75	10	14	2500	270	150	245	7.5	4	1.1
UTR-13x3000	75	9	13	3000	290	150	245	7.5	4	1.1
UTR-17x2500	100	13	17	2500	300	165	270	15	5.5	1.5
UTR-15x3000	100	11	15	3000	325	165	270	15	5.5	1.5
UTR-20x2500	130	16	20	2500	330	180	300	15	5.5	2.2
UTR-18x3000	130	14	18	3000	350	180	300	15	5.5	2.2
UTR-22x2500	160	18	22	2500	360	200	330	18.5	7.5	2.2
UTR-20x3000	160	16	20	3000	375	200	330	18.5	7.5	2.2
UTR-18x3500	160	14	18	3500	390	200	330	18.5	7.5	2.2
UTR-24x2500	190	21	24	2500	380	220	360	22	7.5	4
UTR-22x3000	190	19	22	3000	400	220	360	22	7.5	4
UTR-19x3500	190	16	19	3500	410	220	360	22	7.5	4
UTR-29x2500	230	25	29	2500	410	235	380	30	11	4
UTR-27x3000	230	21	25	3000	425	235	380	30	11	4
UTR-25x3500	230	21	25	3500	440	235	380	30	11	4
UTR-33x2500	270	28	33	2500	430	250	400	30	11	4
UTR-30x3000	270	25	30	3000	450	250	400	30	11	4
UTR-28x3500	270	23	28	3500	470	250	400	30	11	4
UTR-25x4000	270	20	25	4000	490	250	400	30	11	4
UTR-36x2500	320	30	36	2500	460	260	420	37	15	5.5
UTR-32x3000	320	28	32	3000	480	260	420	37	15	5.5
UTR-28x3500	320	25	28	3500	500	260	420	37	15	5.5
UTR-26x4000	320	22	26	4000	520	260	420	37	15	5.5
UTR-39x2500	380	35	39	2500	500	275	460	45	22	5.5
UTR-35x3000	380	32	35	3000	510	275	460	45	22	5.5
UTR-32x3500	380	28	32	3500	530	275	460	45	22	5.5
UTR-30x4000	380	25	30	4000	550	275	460	45	22	5.5
UTR-43x2500	430	40	43	2500	520	290	500	55	22	7.5
UTR-38x3000	430	35	38	3000	540	290	500	55	22	7.5
UTR-36x3500	430	30	36	3500	560	290	500	55	22	7.5
UTR-32x4000	430	28	32	4000	580	290	500	55	22	7.5



                                                                  With Taper rolling attachment
