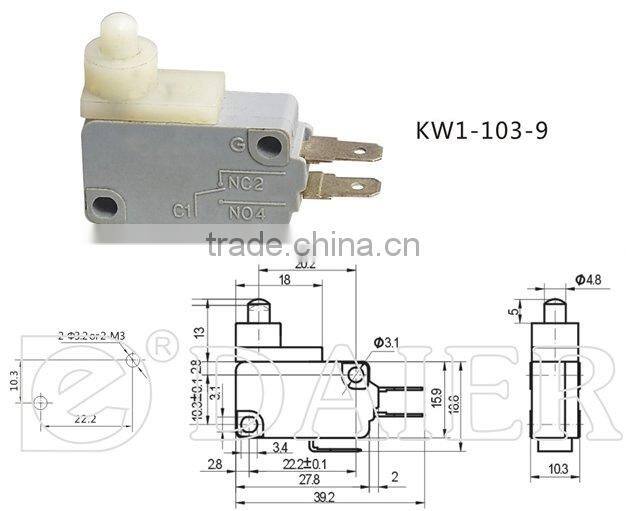

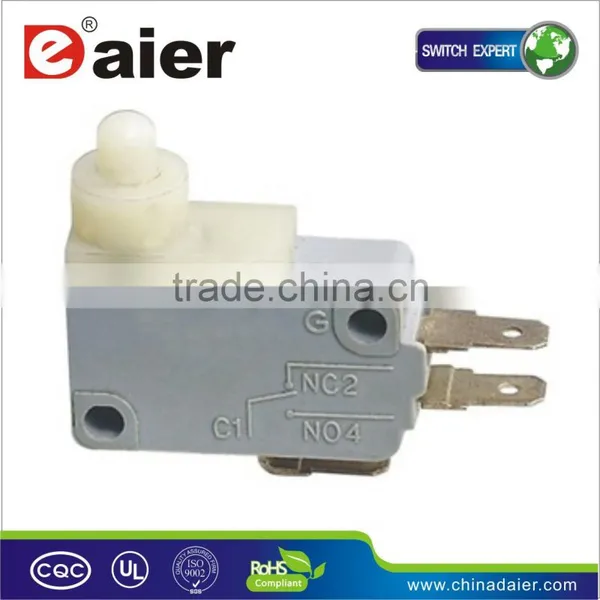

Micro switch highly KW1-103-9
micro switch highly
A.KW1-103-9
B.10A,125/250VAC
C.16A 125/250VAC
D.Certification:CE,CQC
- The Main Thchnology Performane
Item | Value | |
Operating speed | 0.1mm-1m/s(related with actuator) | |
Operating frequency | Mechanical 60 cycles/min; Electrical 25cycles/min | |
Insulation resistance | ≥100 MΩ(500Vdc) | |
Contact resistancy | ≤30 mΩ(initial value) | |
Test voltage | Between terminals of the same polarity
| AC 1000V,50/60Hz,1min
|
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts
| AC 3750V,50/60Hz,1min
| |
Vibration resistance
| 10~55Hz,1.5mm Double amplitude
| |
Shock resistance
| Malfunction:300/s² (approx.30)max
| |
life | Mechanical≥1,000,000cycles Electrical≥100,000cycles
| |
Safety approvals
| CE,CQC
| |
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
- PAYMENT AND SHIPMENT
Paypal,T/T,Westernunion,MoneyGram ,or other method.
Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.
---We often ship item in 5 business days.
- FEEDBACK
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback .
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Why choose us?
Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
