Specifications
micro switch t1251.With Arc lever
2.KW1-103-5
3.16A 125/250VAC
4.Certification:CE,CQC

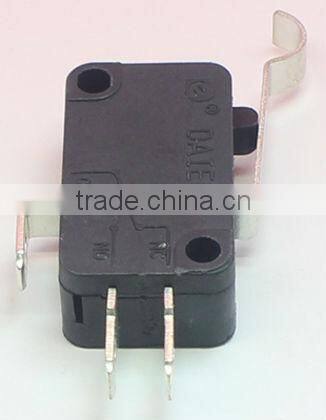

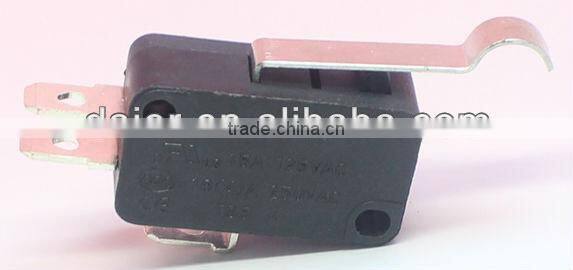

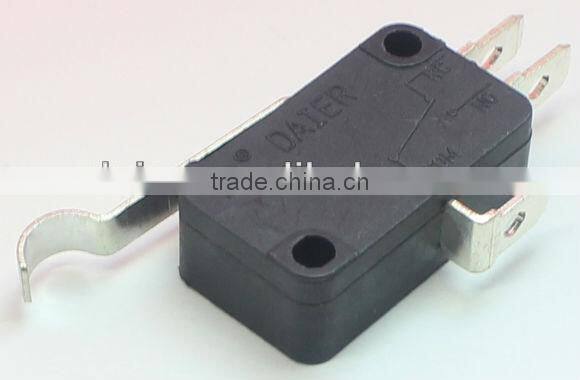

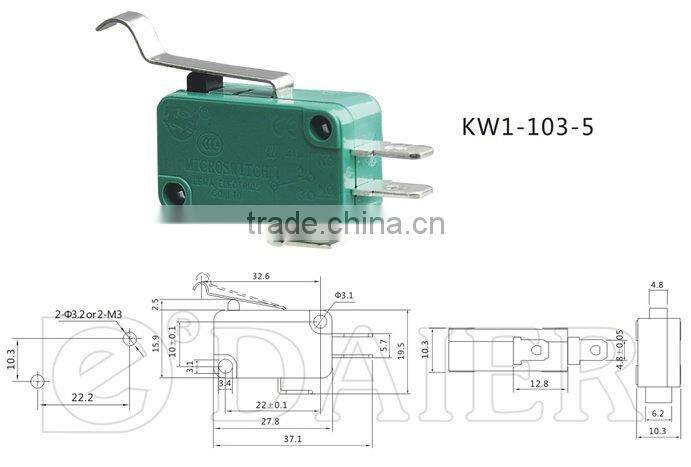

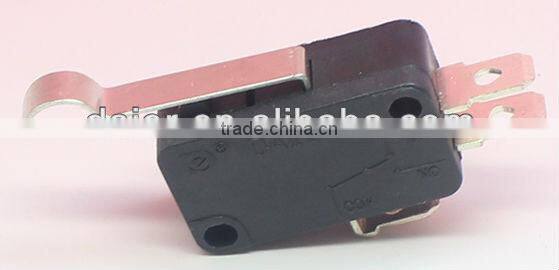

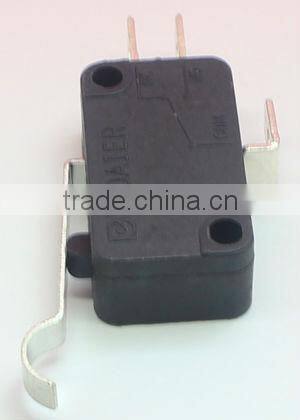

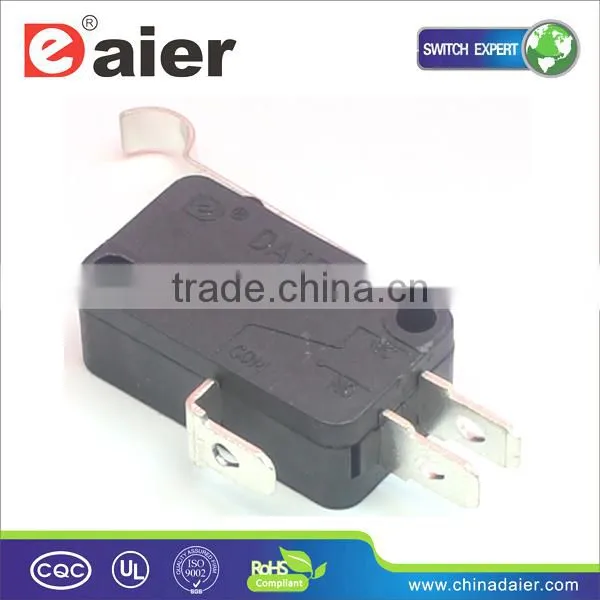

Micro switch t125 KW1-103-5
micro switch t125
1.With Arc lever
2.KW1-103-5
3.16A 125/250VAC
4.Certification:CE,CQC
- The Main Thchnology Performane
Item
Value
Operating speed
0.1mm-1m/s(related with actuator)
Operating frequency
Mechanical 60 cycles/min;
Electrical 25cycles/min
Insulation resistance
≥100 MΩ(500Vdc)
Contact resistancy
≤30 mΩ(initial value)
Test voltage
Between terminals of the same polarity
AC 1000V,50/60Hz,1min
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts
AC 3750V,50/60Hz,1min
Vibration resistance
10~55Hz,1.5mm Double amplitude
Shock resistance
Malfunction:300/s²
(approx.30)max
life
Mechanical≥1,000,000cycles
Electrical≥100,000cycles
Safety approvals
CE,CQC
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
- PRODUCT SHOW
- CERTIFICATIONS
- PRODUCING DEPARTMENTS
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
- PAYMENT AND SHIPMENT
Paypal,T/T,Westernunion,MoneyGram ,or other method.
Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.
---We often ship item in 5 business days.
- FEEDBACK
We greatly appreciate your positive feedback and will do the same.
Please kindly contact us before you decide to leave any neutral or negative feedback .
We will try our utmost to help you solve the problem. Your information for us will be protected strictly.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
