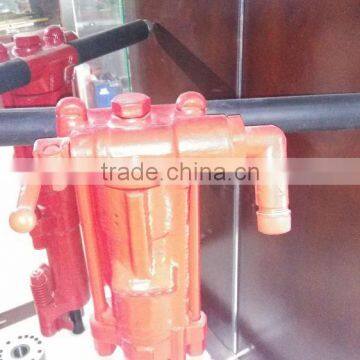

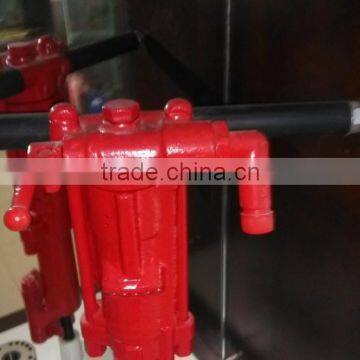

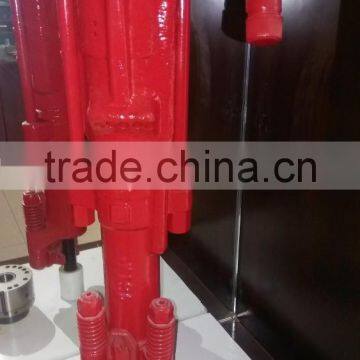

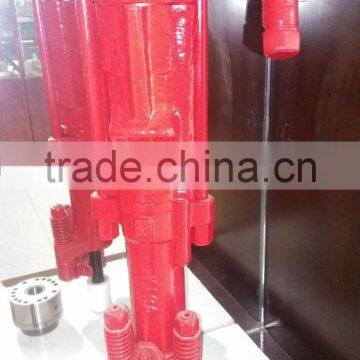

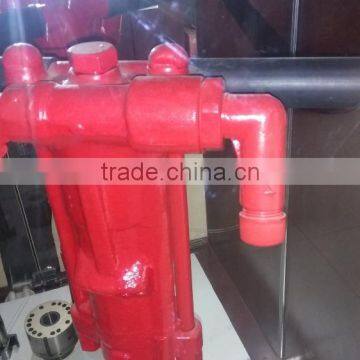

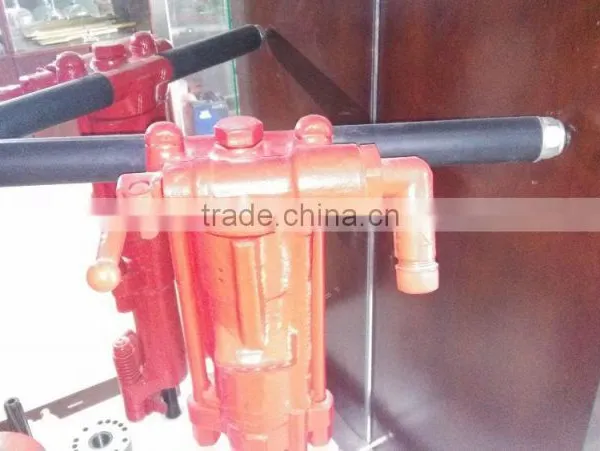

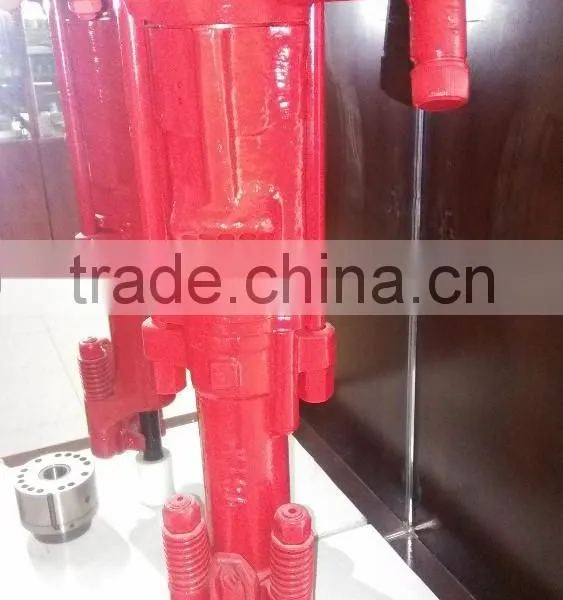

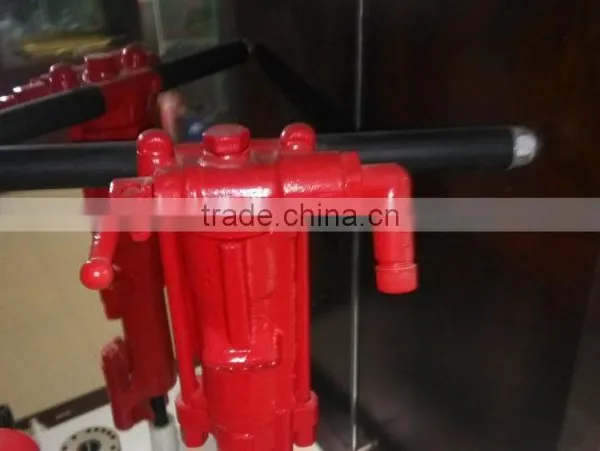

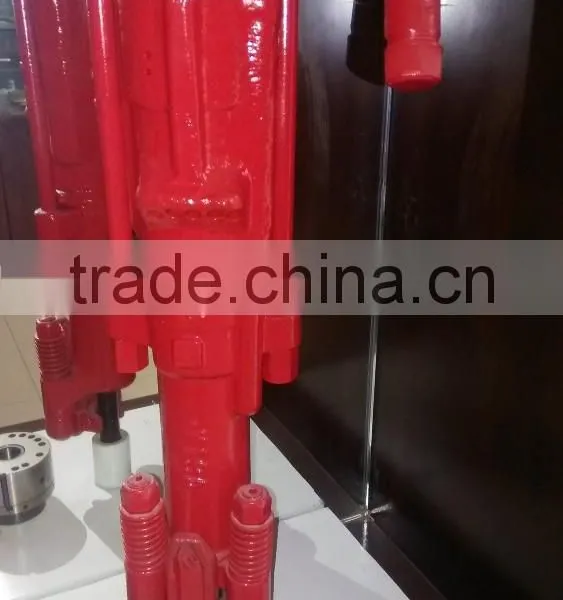

YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Pneumatic Rock Drill
US$ 200 - 400
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, wind
Power Type:
Other, wind
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill MachineUS$ 200 - 400MOQ: 1 Set -
YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer - Hydraulic Rock DrillUS$ 200 - 400MOQ: 1 Set
-
Factory OUTLET /// 2015 Hot Sale - Good Quatily YT27 Rock Drilling Rig - Hand Hammer Rock DrillUS$ 200 - 400MOQ: 1 Set
-
2015 Hot Sale Good Quatily YT27 Rock Drilling Machine With Air LegUS$ 200 - 400MOQ: 1 Set
-
Factory OUTLET /// 2015 Hot Sale - Good Quatily YT27 Hand Hammer Rock Drill - Rock Drilling MachineUS$ 200 - 400MOQ: 1 Set
Condition
New
Type
Other, wind
Power Type
Other, wind
Place of Origin
Hebei, China
Brand Name
GuanTong
Model Number
YT27
Usage
Other, rock drilling
Voltage
/
Power(W)
75.5J
Dimension(L*W*H)
668*248*202 mm
Weight
27kg, 27KG
Certification
CE
Warranty
6 monthes
After-sales Service Provided
Overseas third-party support available
Pneumatic Rock Drill
>>> We're Factory OUTLETS
2015 hot sale - Good quatily YT27 hand hammer rock drill - Rock Drilling Machine Manufacturer
Product Description
YT27 air leg rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in area:
- Quarries ///
- Railway Construction ///
- Water Conservancy Project ///
- National Defence Project Facility ///
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation, it can also use in the trolley without Air-leg.
Technical Data
| S.N. | Item | Specification | Unit |
| 1 | Weight | 27 | KG |
| 2 | Outside dimension(L×W×H) | 668*248*202 | MM |
| 3 | Cylinder diameter | 80 | MM |
| 4 | Piston Stroke | 60 | MM |
| 5 | Impact Energy | ≥75.5 | J |
| 6 | Impact frequency | ≥36.7(0.63Mpa) /// ≥39(0.5Mpa) | HZ |
| 7 | Air consumption | ≤83.3(0.63Mpa) /// ≤57(0.5Mpa) | L/S |
| 8 | Working Pressure | 0.5-0.63 | Mpa |
| 9 | Working water pressure | 0.3 | Mpa |
| 10 | Air pipe inner diameter | 25 | MM |
| 11 | Water pipe inner diameter | 13 | MM |
| 12 | Rock drill hole diameter | 34-45 | MM |
| 13 | Max Drilling Depth | 5 | M |
| 14 | Shank Size | 22*108 | MM |
| FY250A Oil Lubricator | |||
| 15 | Weight | 1.2 | ML |
| 16 | Oil Reserve | 0.25 | KG |
| FT160A Air Leg | |||
| 17 | Length | 1668 | MM |
| 18 | Advance Length | 1338 | MM |
| 19 | Cylinder diameter | 65 | MM |
| 20 | Weight | 17 | KG |

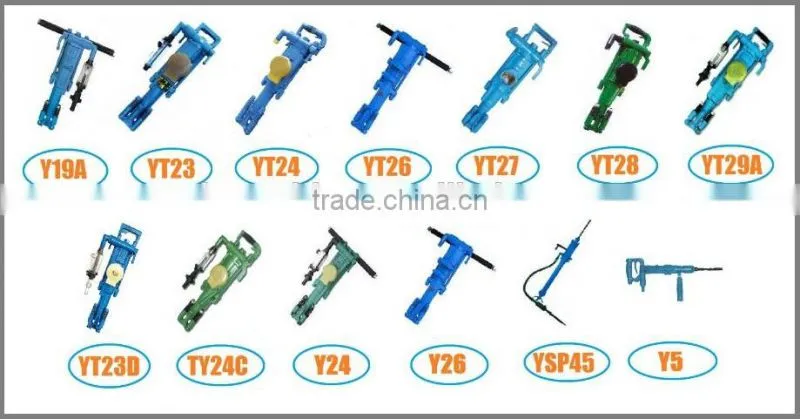

Other Models for Choose:

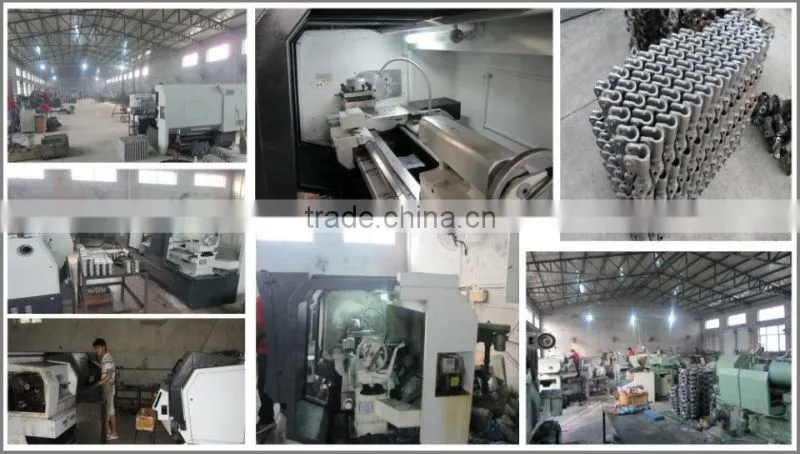

Workshop Photos

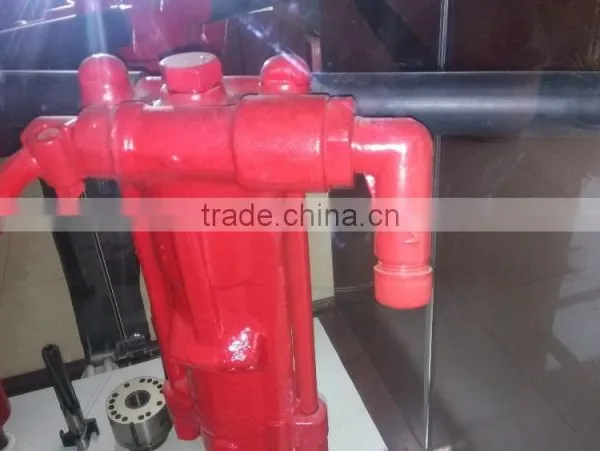

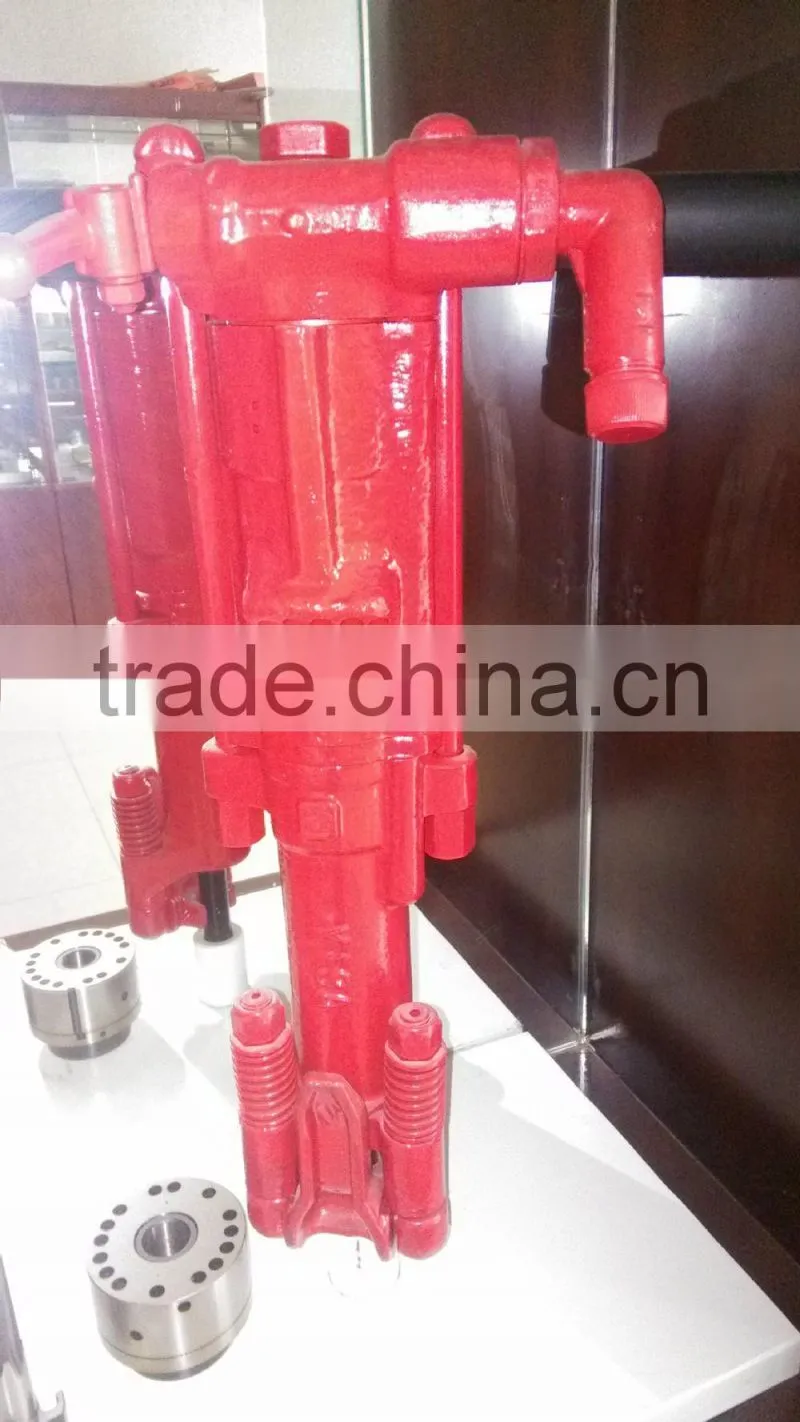

Detailed Images

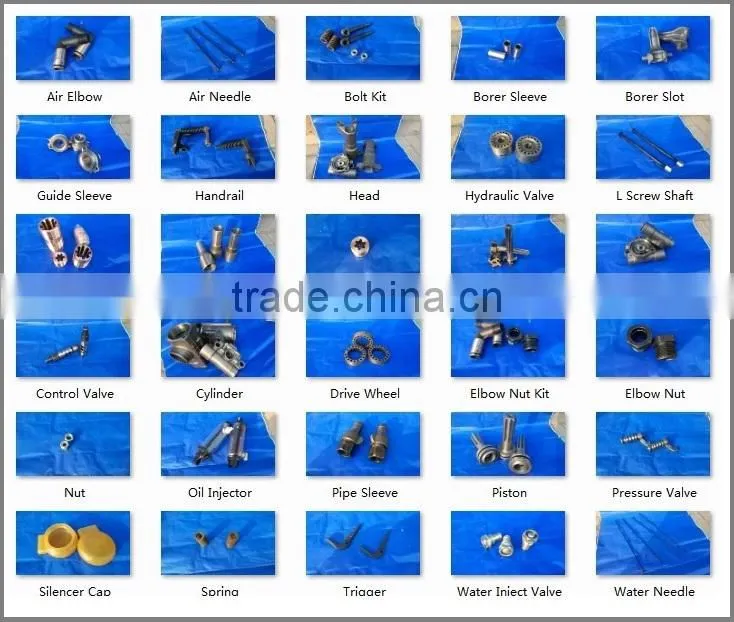

Spare Parts

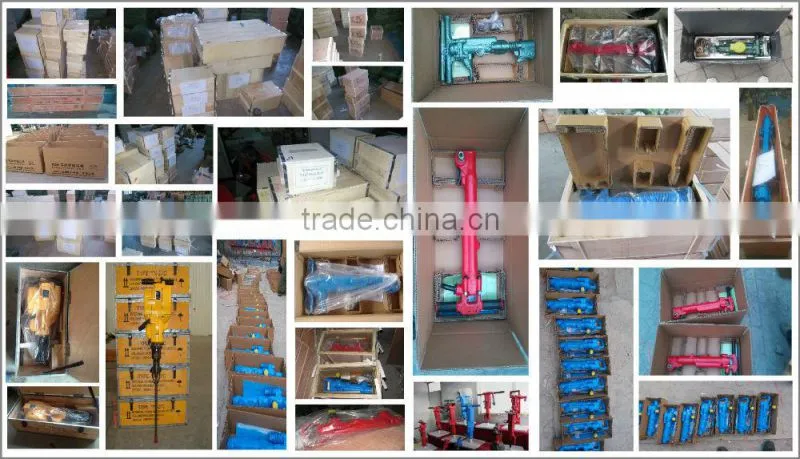

Packaging & Shipping
Packing:
We use standard packing PLYWOOD case for export order; Pallet, Carton Box, Nyloon Bag is also used for extra consideration if needed.
Shipping:
The main markets of South Asia, Middle East, South America, Russia and Africa is our successed area.
