US$ 200 - 400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, wind
Power Type:
Other, wind
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, wind
Power Type Other, wind
Place of Origin Hebei, China
Brand Name GuanTong
Model Number YT27
Usage Other, rock drilling
Voltage /
Power(W) 75.5J
Dimension(L*W*H) 668*248*202 mm
Weight 27kg, 27KG
Certification CE
Warranty 6 monthes
After-sales Service Provided Overseas third-party support available

Mini Rock Drill Machine

>>> We're Factory OUTLETS

2015 hot sale - Good quatily YT27 hand hammer rock drill - Rock Drilling Machine Manufacturer



YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine



Product Description



 YT27 air leg rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes and other drilling works in area:



  • Quarries ///
  • Railway Construction ///
  • Water Conservancy Project ///
  • National Defence Project Facility ///



When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation, it can also use in the trolley without Air-leg.



Technical Data



S.N.ItemSpecificationUnit
1Weight27KG
2Outside dimension(L×W×H)668*248*202MM
3Cylinder diameter80MM
4Piston Stroke60MM
5Impact Energy≥75.5J
6Impact frequency≥36.7(0.63Mpa) /// ≥39(0.5Mpa)HZ
7Air consumption≤83.3(0.63Mpa) /// ≤57(0.5Mpa)L/S
8Working Pressure0.5-0.63Mpa
9Working water pressure0.3Mpa
10Air pipe inner diameter25MM
11Water pipe inner diameter13MM
12Rock drill hole diameter34-45MM
13Max Drilling Depth5M
14Shank Size22*108MM
 FY250A Oil Lubricator
15Weight1.2ML
16Oil Reserve0.25KG
 FT160A Air Leg
17Length1668MM
18Advance Length1338MM
19Cylinder diameter65MM
20Weight17KG

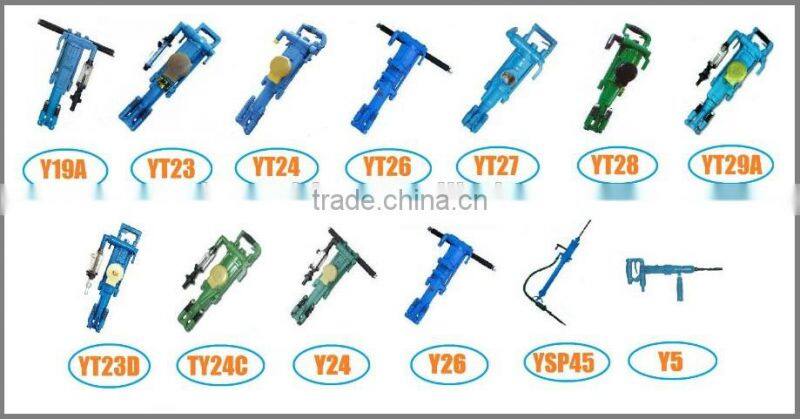

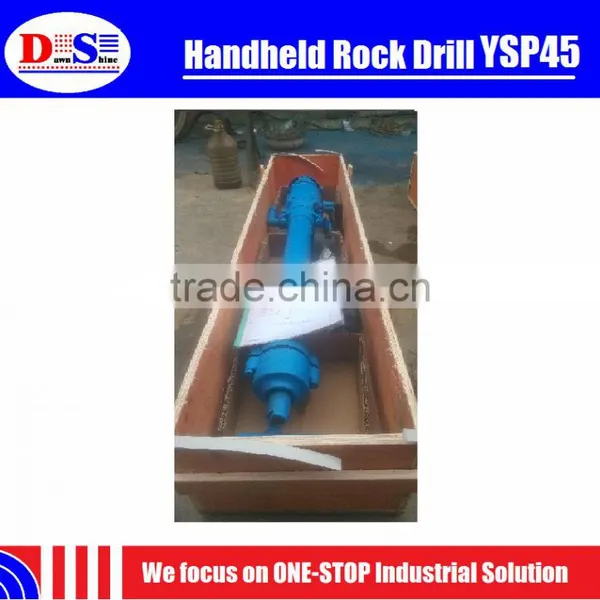

Other Models for Choose:



YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine

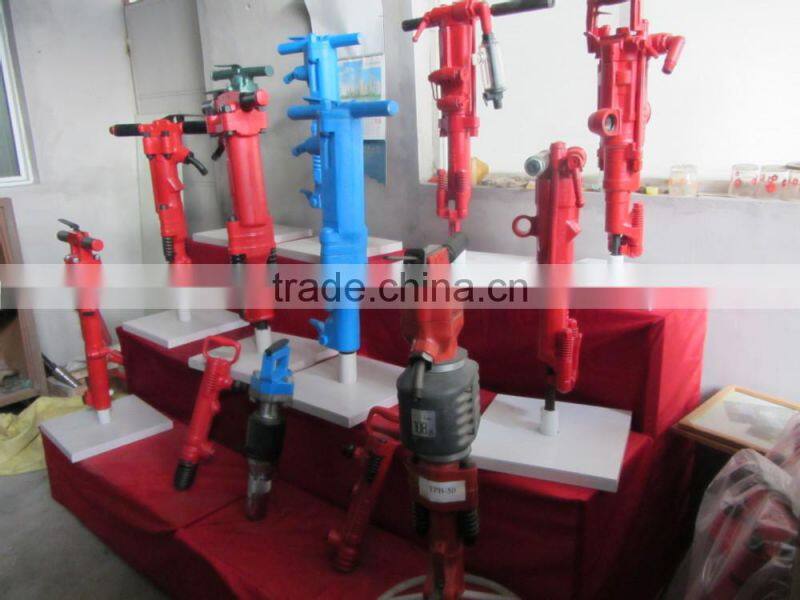

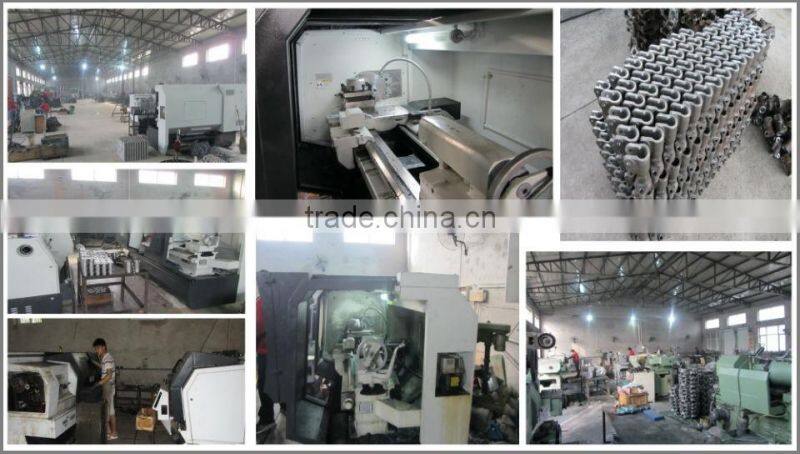

Workshop Photos

YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine

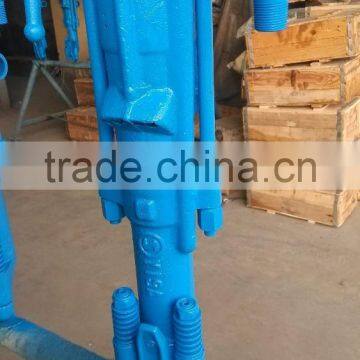

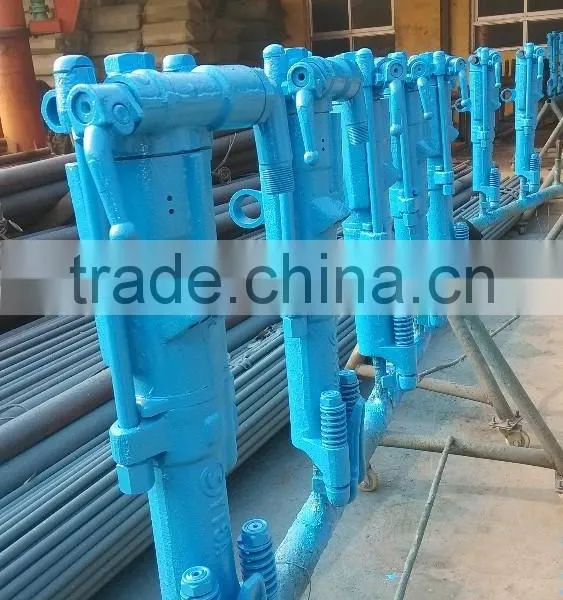

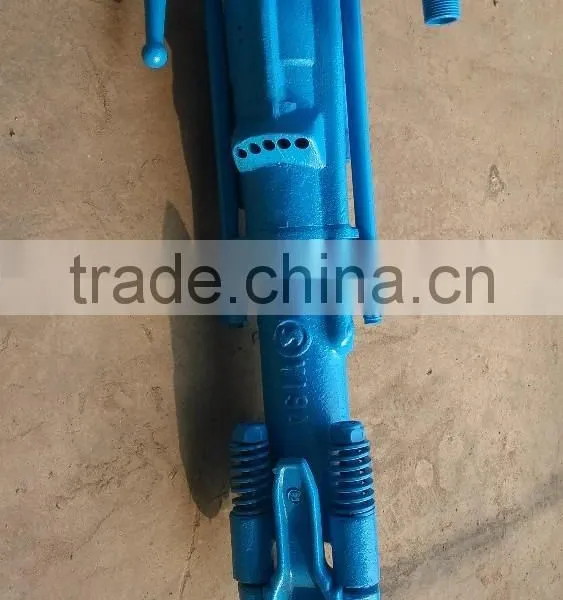

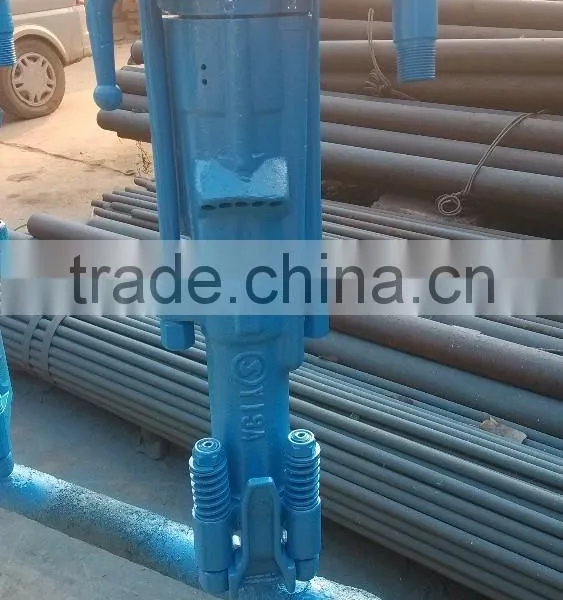

Detailed Images

YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine

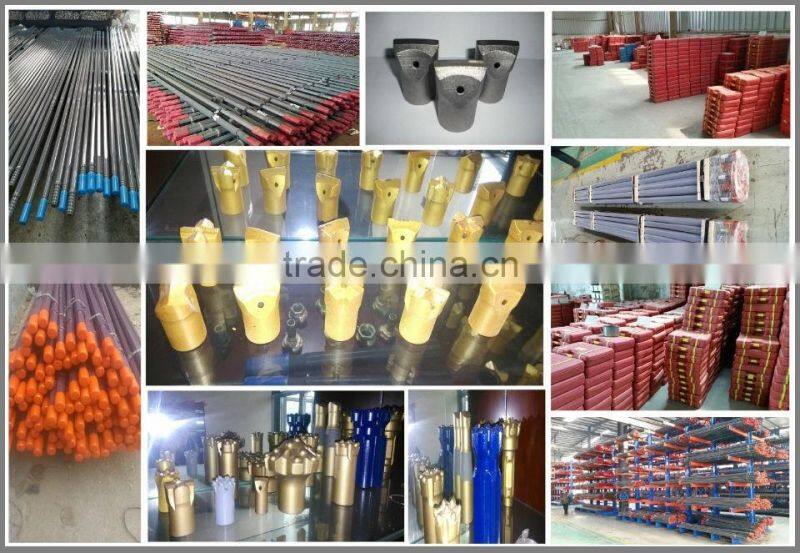

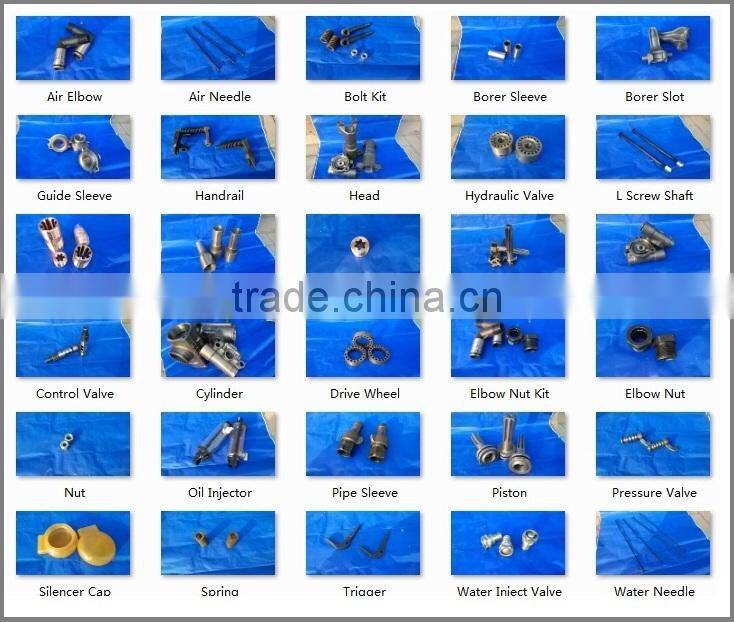

Spare Parts

YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine

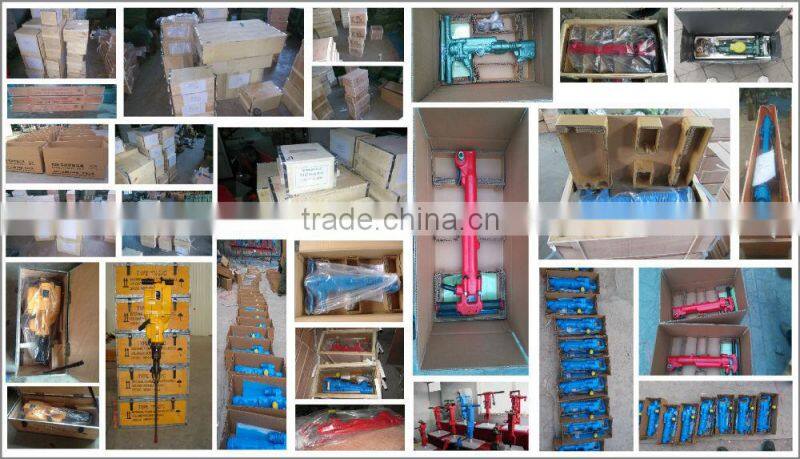

Packaging & Shipping

Packing:

We use standard packing PLYWOOD case for export order; Pallet, Carton Box, Nyloon Bag is also used for extra consideration if needed.



Shipping:

The main markets of South Asia, Middle East, South America, Russia and Africa is our successed area.

 YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine

Why Choose Us

 YT27 Rock Drill /// Factory OUTLET /// Mining Rock Drilling Rig - Hand Hammer Hydraulic Rock Drill - Mini Rock Drill Machine
