2015 hot sale good quatily YT27 rock drilling machine with air leg
YT27 rock drilling machine with air leg Specifications
YT27 Specifications :
| Weight | 27 | KG |
| Outside dimension(L×W×H) | 668*248*202 | MM |
| Cylinder diameter | 80 | MM |
| Piston Stroke | 60 | MM |
| Impact Energy | ≥75.5 | J |
| Impact frequency | ≥36.7(0.63Mpa) ≥39(0.5Mpa) |
HZ |
| Air consumption | ≤83.3(0.63Mpa) ≤57(0.5Mpa) |
L/S |
| Working Pressure | 0.5-0.63 | Mpa |
| working water pressure | 0.3 | Mpa |
| Air pipe inner diameter | 25 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-45 | MM |
| Max Drilling Depth | 5 | M |
| Shank Size | 22*108 | MM |
| FY250A Oil Lubricator | ||
| Weight | 1.2 | ML |
| Oil Reserve | 0.25 | KG |

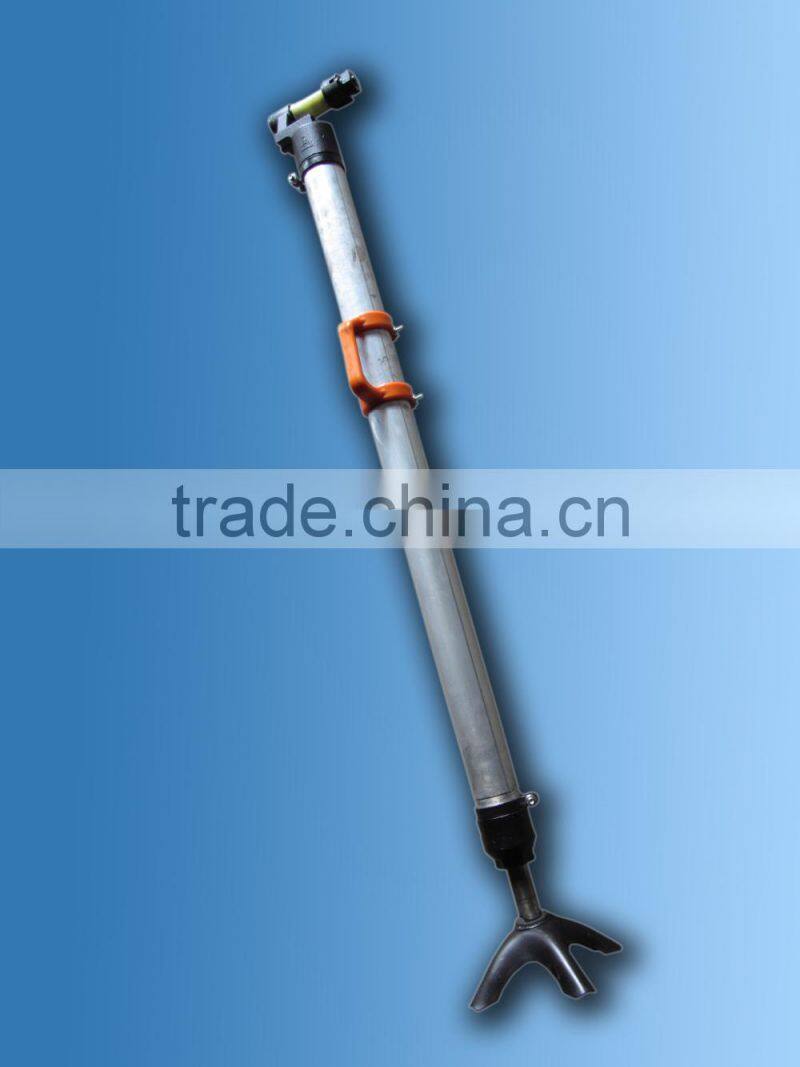

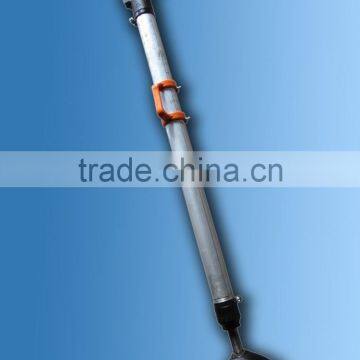

| FT160A Air Leg | ||
| Length | 1668 | KG |
| Advance Length | 1338 | MM |
| Cylinder diameter | 65 | MM |
| Weight | 17 | MM |

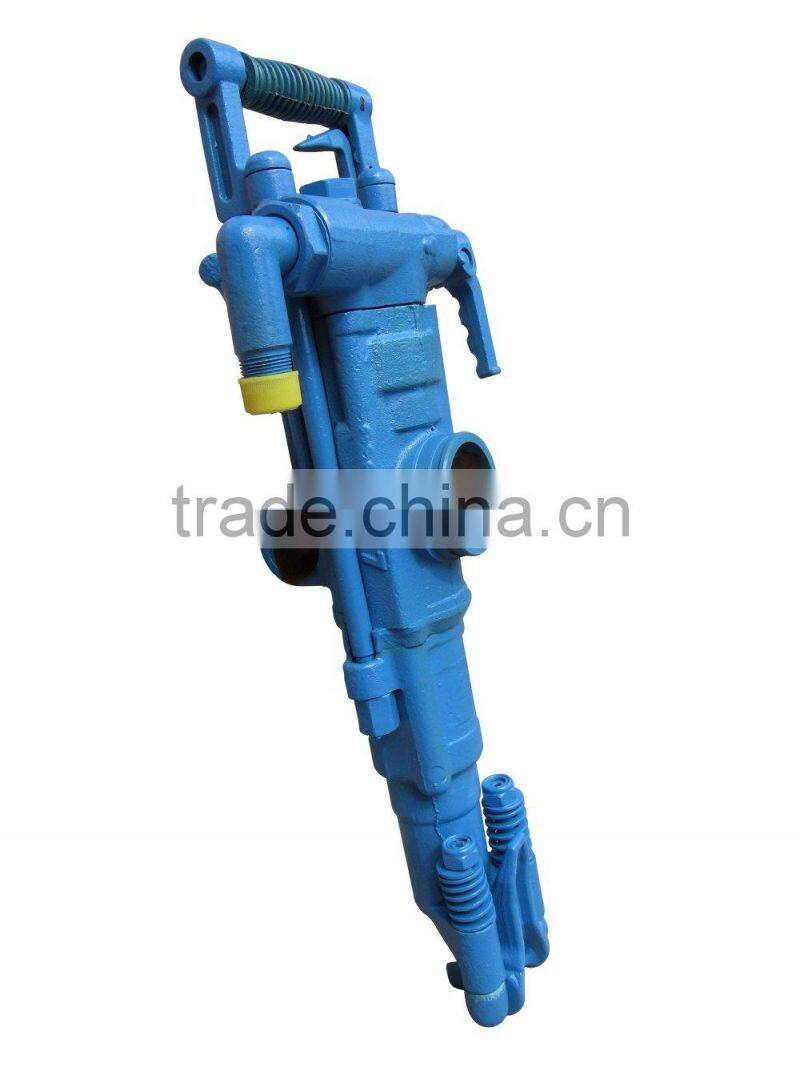

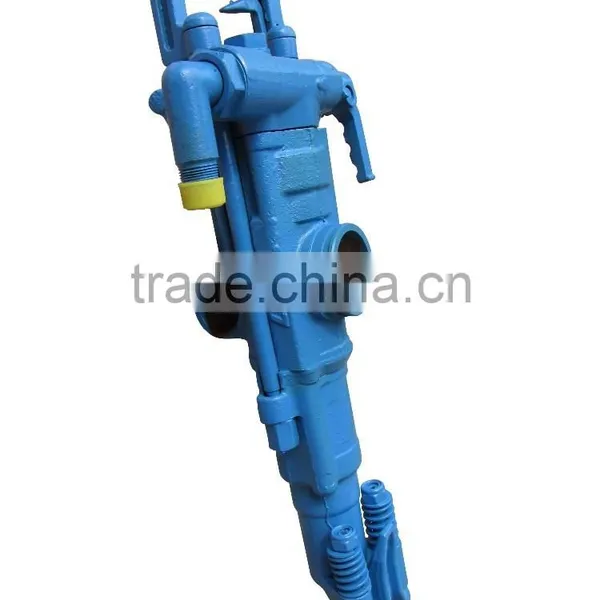

YT27 air leg rock drill is a kind of high efficiency air leg rock drill machine.It is mainly used for blasting holes
and other drilling works in a quarries,
railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B
Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,
it can also use in the trolley without Air-leg.
YT2
7 rock drilling machine

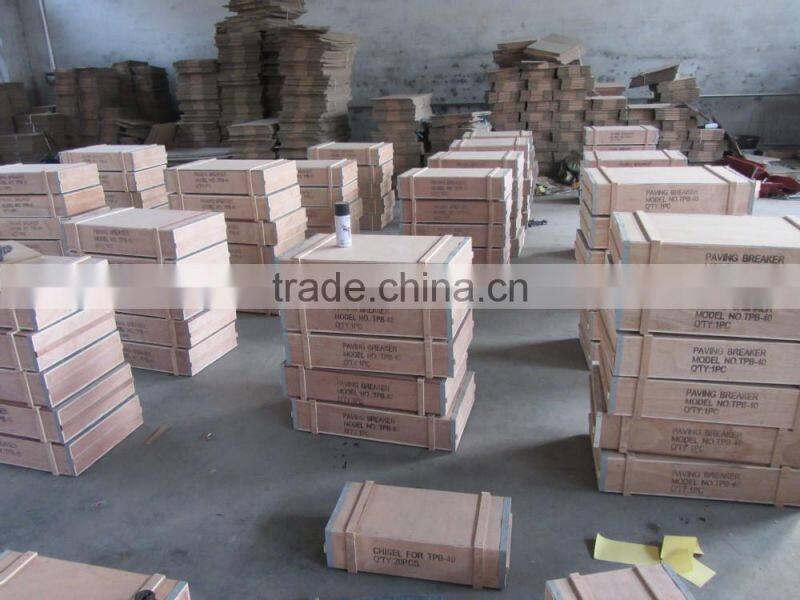

rock drill machine packing :
Use carton case or plywood case for rock drill
Delivery Detail:7 days after receive the payments for rock drill

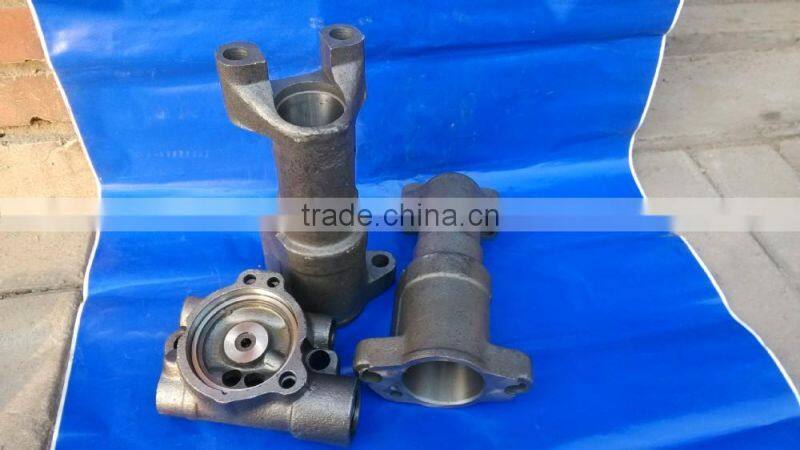

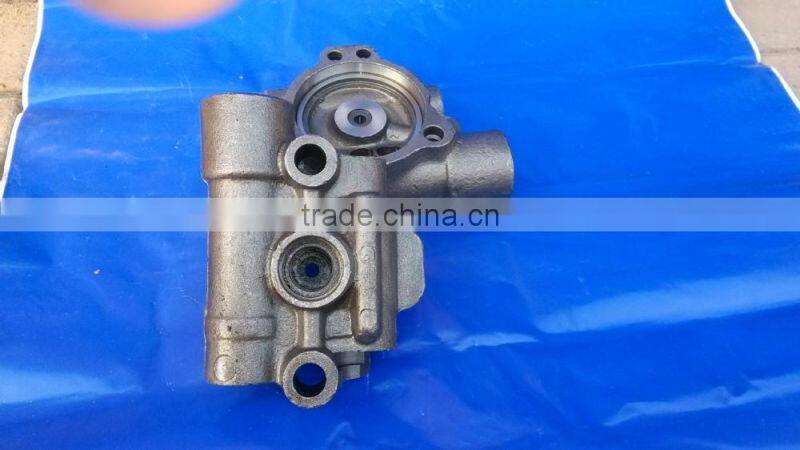

YT27 rock drilling machine parts details
|
|
|
|
|
Pusher leg rock drill/Pneumatic jack leg drill YT27 is a high efficienc rock drilling equipment.
It is widely used in rock drilling. It's important to coal mining, railway, traffic, water conservancy and so on. According to the different space, it can be used with FY250 oiler and FT160A (FT160B,FT160C,FT170) air leg,
it also can be fixed on Drill carriage and drilling frame
|
YT27 rock drilling machine FAQ. Frequently Asked Questions | |
|
|
sale manager
Jack Cao
Mobile : +8615731603960(wechat & whatsapp )
skype :jeff.cao6
1. More Than 10 years specialized in rock drill machine and drill tools. 75% of our products are export to Russia, Ukraine, India, Pakistan,
South Africa, Malaysia, Philippine, Brazil, Peru, Chile, Mexico and so on.
2. We provide 3 years warranty .
3. As for the packing, we use two-double carton inner packing and special wooden case out packing.
4. If you have any questions, we will reply and solve within 24 hous.
