Cutting Torch

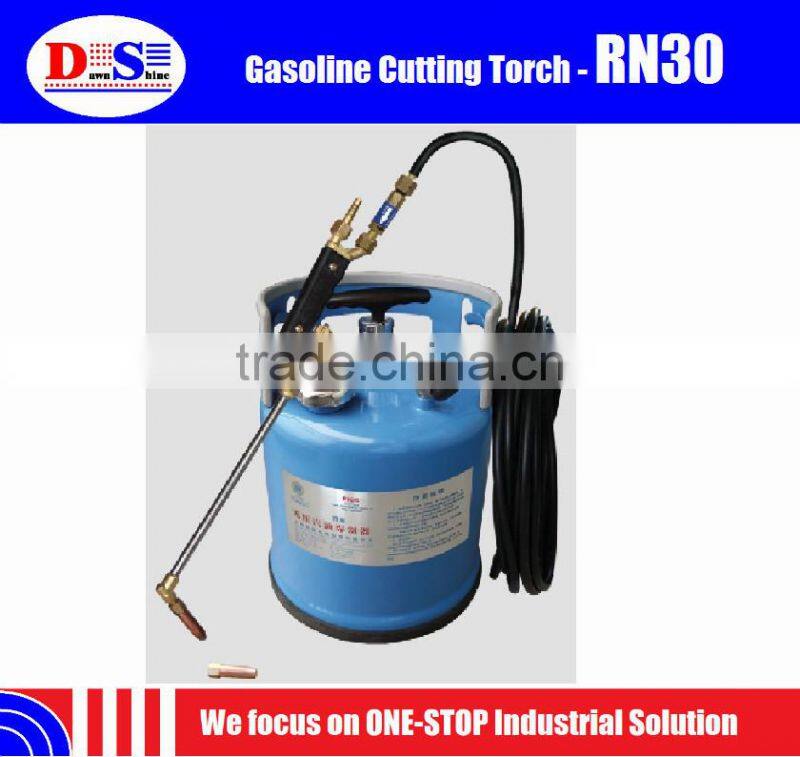

Cutting Thickness 30~300mm - Revolution Design - Gasoline + Oxygen - 80% cost saving - Gasoline Cutting Torch
Energy Saving Comparing Table (e.g. 200mm Steel Plate)
|
Fuel Type |
Price Level |
Daily Consumption |
Annual Consumption (258 days) |
Pre-heat Process |
Cutting Process |
Acetylene |
$15.57/bottle |
3 bottles |
$12,051.18 |
Fast |
Fast |
LPG |
$13.93/bottle |
1.5 bottles |
$5,390.91 |
Slow |
Slow |
Gasoline |
$1.24/L |
8.6L |
$2,751.32 |
Fast |
Fast |
Remarks: above mentioned calculation is based on China domestic market; the value shall be different for other countries depend on the fuel price.
HOW DOES IT WORK?
The principle is simple: nonpressurized tank of petrol is sucked in and mixed with oxygen in a simple burner injector.
There is consequently a matter that light up. Flame stability is immediately good therefore it is not necessary to
preheat the burner as necessary for some gasoline products (eg blowtorch, stoves, burners, etc.). It is lever-
controlled type designed mainly for American & European users.
IS IT SAFE?
The design is based on non-pressure working theory, which makes it the SAFEST steel cutting torch ever made. So there’s no possibility of
explosion under pressureless working condition. Any gasoline leakage can be found and stopped immediately
because gasoline is odorous Furthermore, the gas tank is also anti-explosion type to ensure 100% safe of the
operator.
NOT SURE IF IT MEET MY WORKING CONDITIONS?
l Cutting steel up to a thickness of 300 mm;
l 10 sizes of cutting nozzles for different cutting thickness
l Multilayer cutting steel ( 25 x 10 mm plate to another)
l "Burn" in steel up to 250 mm
l Welding up to 5 mm thick steel
l Full tank 10 liters Weight 15 kg
l Minimum heat affected area cut
l Very clean cuts; Almost no slag
l Up to 100% faster cutting steel;
l 10M gasoline hose & 10M oxygen hose
l Due to constantly cooling nozzle aerosol nozzles are virtually indestructible
l Cutting torches length from 350 mm to 1000 mm
l There is no possibility of re-ignition of gasoline
l Usually use from - 40 °C to + 40 °C;
l temperature of cutting flame: 2800-3000 °C
l No special regulations for storage or transport
l Daily availability of fuel anywhere in the world (Natural GAS 91, 95, 98. etc)
l Simply filling the tank at the gas station or a canister
l No paying rent for fuel tank (tank forever and your property is not subject to official revisions)
l Gasoline consumption is minimal: 0.7L per hour cutting steel, ie 100 mm thickness per tank working 14 hours!
l The consumption of oxygen is the same as in the other methods or somewhat lower
