Container Crane Cost

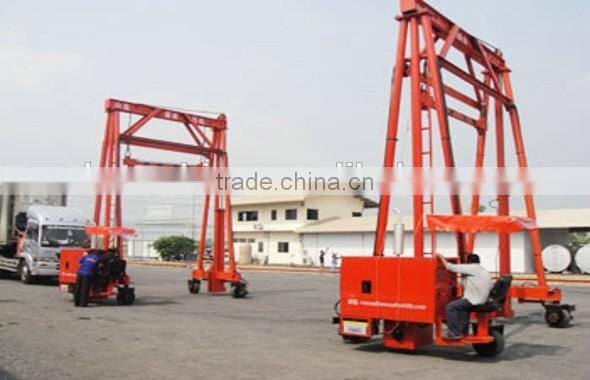

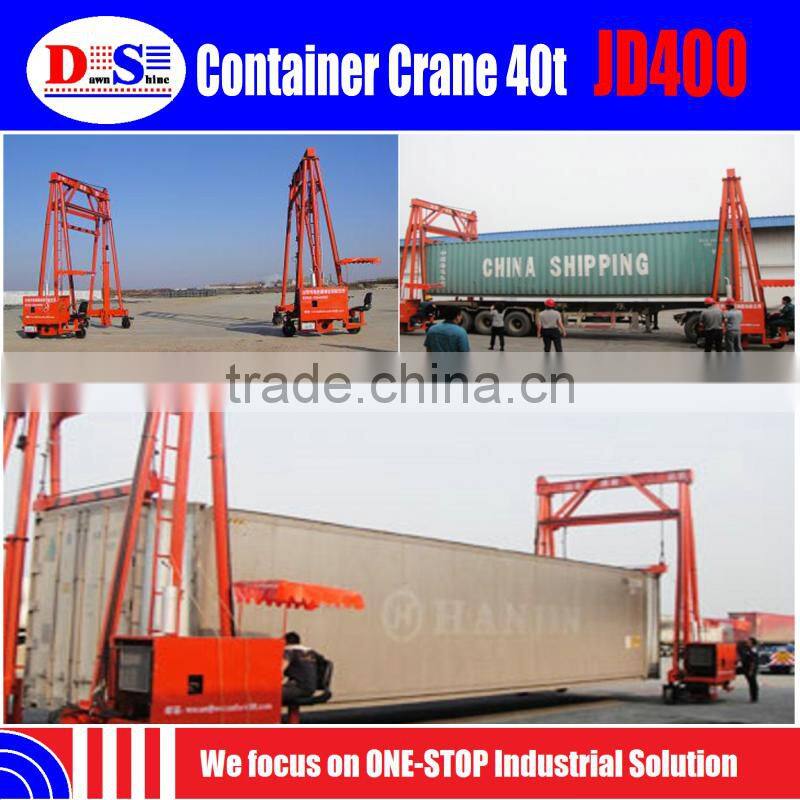

JD400 Sea Port Shipyard Gantry Container Crane Mobile Container Crane Cost
|
1. JD400 container crane is a kind of lowest work cost crane of container, special suit for container platform.
2. This crane adopt multicylinder diesel engine for power source with low noise and shake.
3. Lifting & travel are hydraulic system; travel is driven by hydraulic motor.
4. Lifting adopt the cylinder with a diameter of 200mm, the lifting capacity is great and the system hydraulic pressure is low; lifting & dropping are reposefully and safely, the handling efficiency is great.
5. The two main parts are independent movable mast with two-wheel driven and four-wheel steering, can rotate 90°most, could steer and translation of any angle.
6. The turning radius is small, so easy to operate, suit hanging of many kind of containers.
7. The crane should work on smooth & hard field, it is superior in quality and moderate in price. |
MODEL |
JD400 | JD400A | JD400H(JD600) | |
Load capacity |
40T | 40T | 60T | |
| Max.lifting height | 1980mm | 1980mm | 1980mm | |
| Max.lifting speed | 0.03m/s | 0.03m/s | 0.03m/s | |
| Total weight | 9.3T | 9.8T | 11.5T | |
| Engine power/Raoate speed | 37/2650kw/r/min | 37/2650kw/r/min | 37/2650kw/r/min | |
| Engine model | 490BG(Four-cylinder engine) | |||
| Max.torque/Rotate speed | ≥148/1800-1900N.m/r/min | ≥148/1800-1900N.m/r/min | ≥148/1800-1900N.m/r/min | |
| Max.travel speed | 1.5Km/h | 1.5Km/h | 1.5Km/h | |
| Diameter of lifting cylinder | 203mm | 203mm | 232mm | |
| Diameter of Steering cylinder | 75mm | 75mm | 75mm | |
| Torque of hydraulic motor | 949Nm | 1633Nm | 1755Nm | |
| Rotate speed of hydraulic motor | 6~400r/min | 4~400r/min | 250r/min | |
| Diameter of drive wheel | 450mm | 500mm | 600mm | |
| Min.under-clearance | 75mm | 55mm | 102mm | |
| Dimensions | Overrall length | 4900mm | 4900mm | 4900mm |
| Overrall width | 2550mm | 2550mm | 2550mm | |
| Overrall height | 6500mm | 6500mm | 6500mm | |
