Product Overview
Assembled with 3 pieces of 192mm×192mm LED modules, the EPLD-S-01 features an IP65-rated painted 304 stainless steel enclosure. It is purpose-built for information display on large port machinery, engineering locomotives and hoisting equipment.
Core Advantages
Strong Anti-interference: Ethernet communication with excellent electromagnetic compatibility (EMC), adapts to complex industrial on-site environments
Durable Build: 304 stainless steel chassis with black or custom finish, robust for long-term outdoor use
High Visibility: Ultra-bright outdoor LED modules with wide viewing angle and glare-free display, clear even in strong sunlight
Easy Installation: Independent wiring compartment enables flexible and convenient wiring & mounting
Harsh Environment Adaptable: Fully sealed anti-vibration structure, IP65 protection against water, dust and vibration
Reliable & Low-maintenance: Built-in self-diagnosis with automatic power-on self-test for stable operation and quick fault checking
Key Specifications
| Parameter | Details |
|---|---|
| Power Supply | AC220V±10%, 50Hz |
| Pixel Pitch | 10mm |
| Brightness | ≥4000 cd/m² |
| Viewing Angle | >120° |
| Max. Viewing Distance | >50m |
| Communication | Ethernet (≤100m transmission) |
| Rated Power (full brightness) | |
| Operating Temperature | -30℃ ~ +70℃ |
| Protection Rating | IP65 |
| Service Life | ≥100,000 hours |
| Enclosure Material | Painted 304 stainless steel |
| Reference Weight | 13kg |
Typical Applications

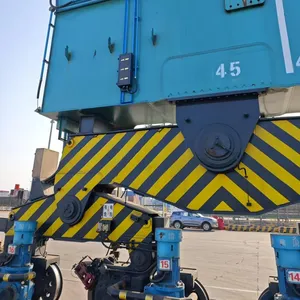

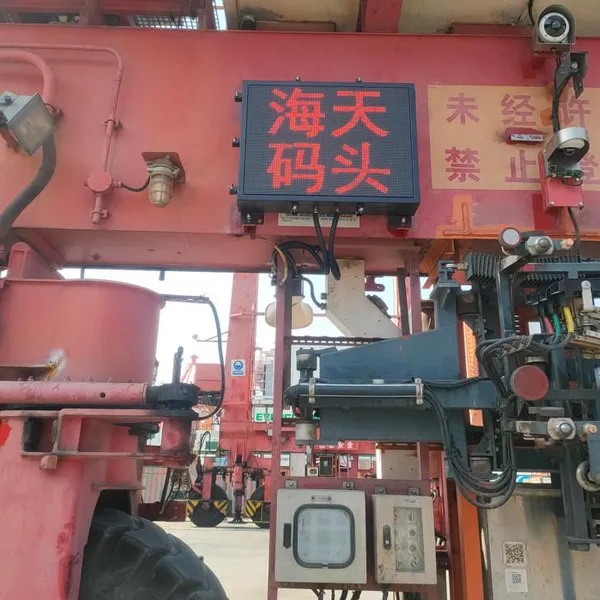

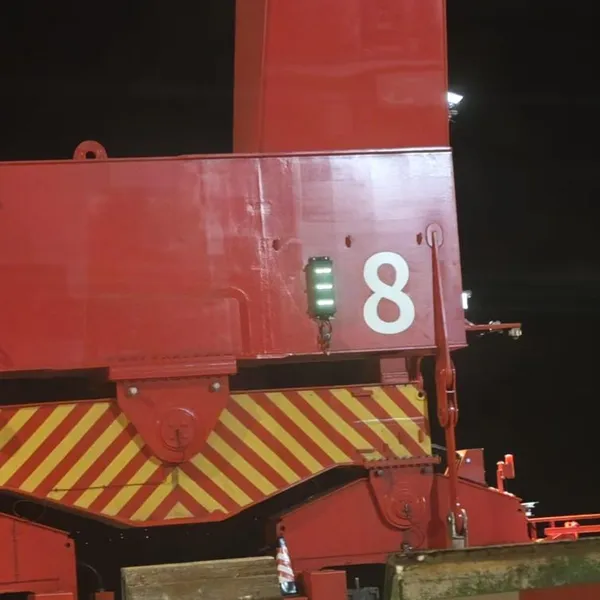

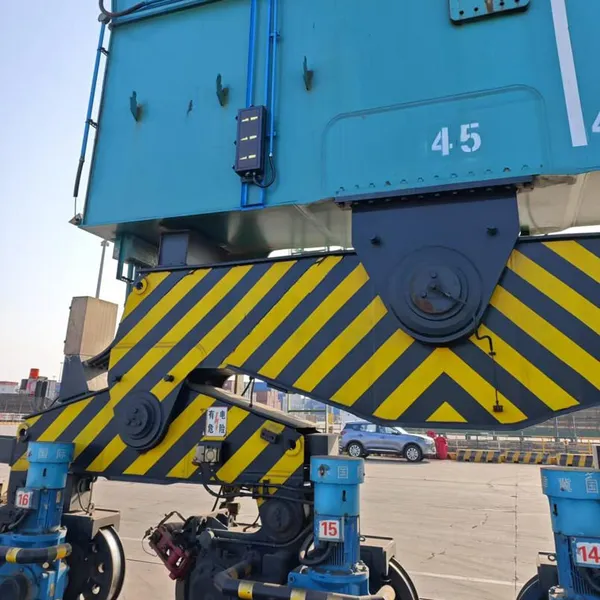

STS cranes, RTG cranes, engineering locomotives, hoisting machinery, port yard positioning guidance systems
