Container Crane Cost

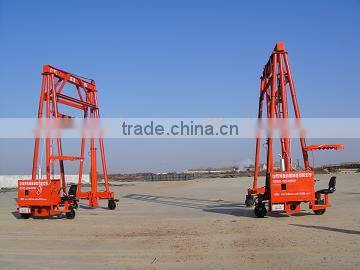

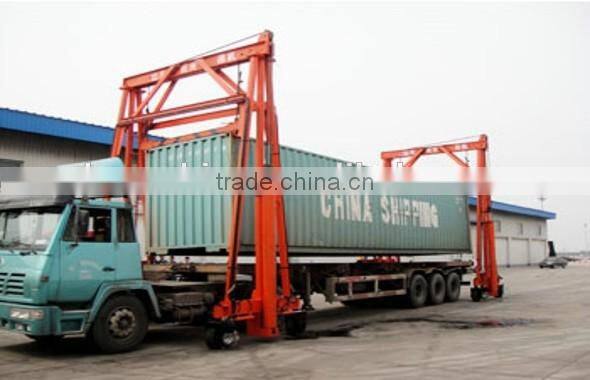

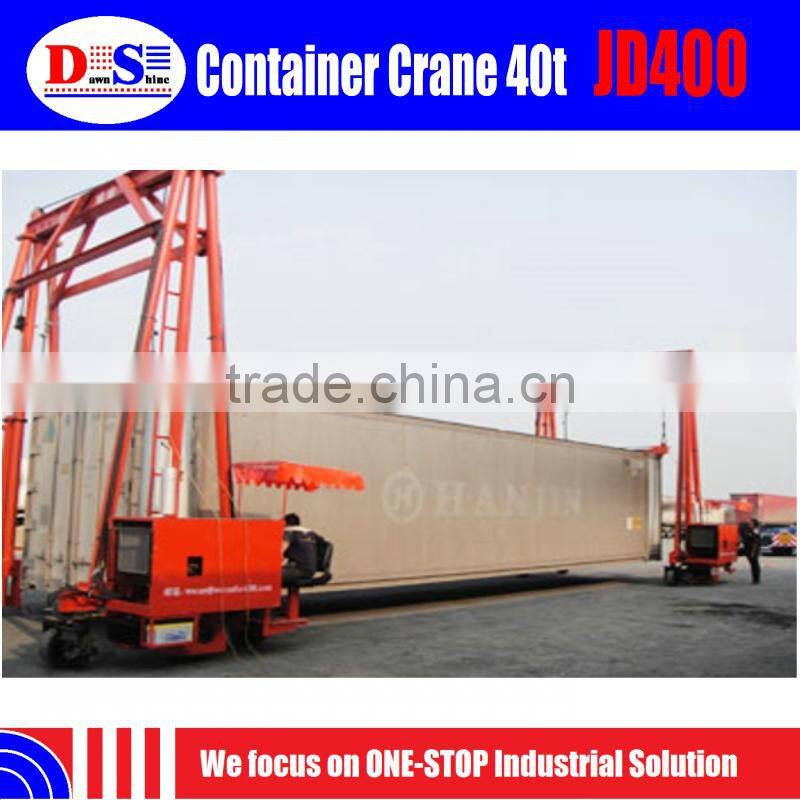

40t Small Container Crane for Sale China Container Gantry Crane JD400
|
JD400 container crane is a kind of lowest work cost crane of container, special suit for container platform.
This crane adopt multicylinder diesel engine for power source with low noise and shake.
Lifting & travel are hydraulic system; travel is driven by hydraulic motor.
Lifting adopt the cylinder with a diameter of 200mm, the lifting capacity is great and the system hydraulic pressure is low; lifting & dropping are reposefully and safely, the handling efficiency is great.
The two main parts are independent movable mast with two-wheel driven and four-wheel steering, can rotate 90°most, could steer and translation of any angle.
The turning radius is small, so easy to operate, suit hanging of many kind of containers.
The crane should work on smooth & hard field, it is superior in quality and moderate in price. |
| Model | JD400 | |
| Rated capacity | kg | 40tons |
| Dimensions | ||
| Overall length | mm | 4900 |
| Overall width | mm | 2550 |
| Overall height | mm | 6500 |
| Max. Lifting height | mm | 1980 |
| Performance | ||
| Max. Speed | m/s | 0.03 |
| Total weight | kg | 9300 |
| Engine | ||
| Engine model | China 490BPG engine | |
| Power | kw | 40 |
| Rated speed | rpm | 2650 |
| Displacement | L | 2.67 |
| No. of cylinder | 4 | |
