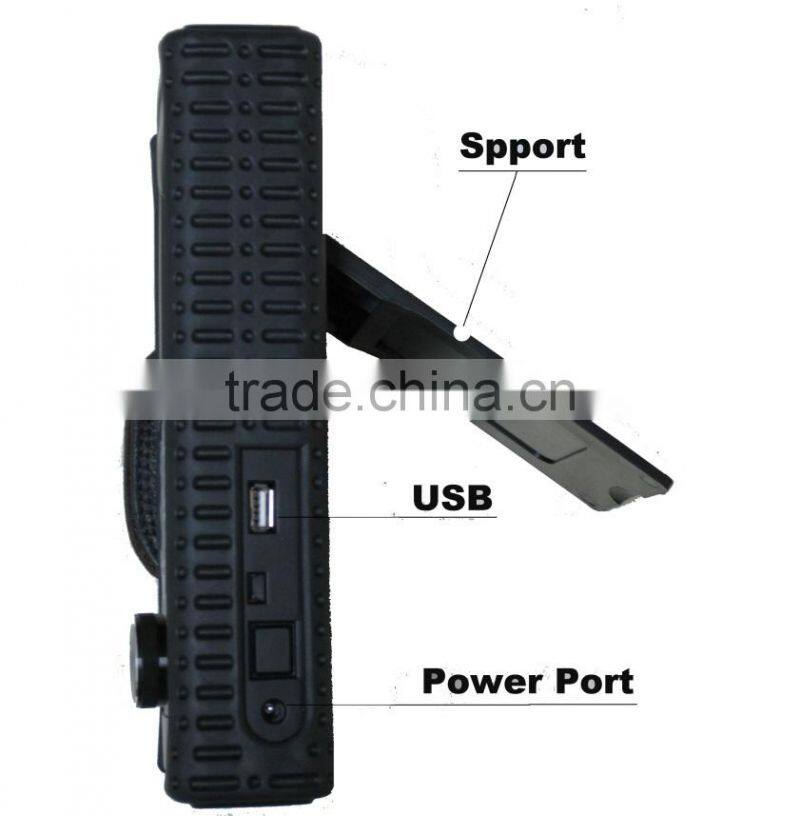

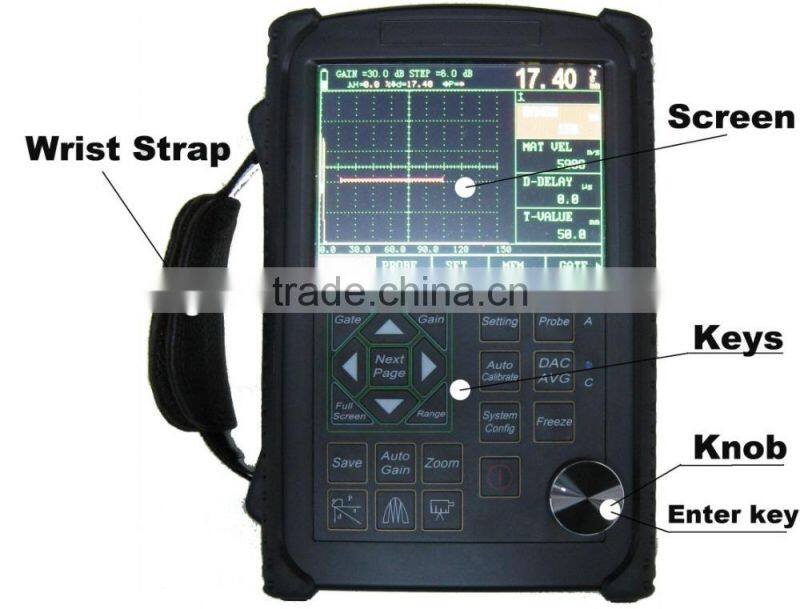

KUT800 Ultrasonic Flaw Detector
Key Feature:
u The two hole test method: automatic calibration value K, frontier, zero, material velocity;
u 100 independent detection channels, free storage, playback 300 A sweep waveform and data (can be expanded according to the needs of users);
u DAC, AVG curves and can be sectioned, sampling point is not restricted, and can make correction and compensation;
u Automatic recording inspection process, and can be dynamic playback;
u Oblique angle probe (K) automatic calculation;
u Two detection methods: peak, edge;
u Three kinds of probe mode: single, double, penetration;
u High sampling rate, low noise;
u Echo frequency analysis.
u Five-range repetition frequency settings
Auxiliary function:
u Automatic gain, echo envelope, peak memory function to improve the detection efficiency;
u Automatic display of the defect echo location (Depth-d, level-p, distance-s, amplitude-H);
u Free switching of three scales (Depth-d, level-p, distance-s,);
u Angle and the K value of two input methods;
u Gate alarm;
u In both Chinese and English operation interface.
Technical parameter:
Title |
Technical Data |
The scanning range (mm): |
0~10000 |
Horizontal linear error |
≤ 0.1% |
Vertical linearity error: |
≤ 3%; |
Flaw detection sensitivity: |
≥ 62dB (deep 200mm φ 2 flat-bottomed hole) |
Dynamic range: |
≥ 32dB |
Resolution: |
≥ 40dB |
Frequency range: |
0.5 ~ 20 (MHz) |
Gain control (dB): |
0 ~ 130 |
Material velocity:(m/s) |
100 ~ 20000 |
Echo suppression: |
0 ~ 80% |
Working temperature: (℃) |
-27 ~ 70 |
Dimensions: (mm) |
225*170*50 |
Weight (Kg): |
1.8 |
Standard Configuration
List of standard configurations
Designation |
Quantity |
Main unit |
1 |
1.5A/9V power adapter |
1 |
probe connecting cable |
2 |
Carrying case |
1 |
Instruction manual |
1 |
Straight probe |
10mm 4MHz (One) |
Angle probe |
8×9 60°4MHz (One) |
Communication software for PC |
1 set |
