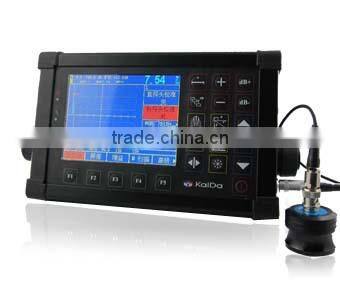

KUT500 Ultrasonic Flaw Detector
Overview
This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.
When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.
Performance Features
l Automated calibration of transducer Zero Offset and/or Velocity ;
l Automated gain,Peak Hold and Peak Memory;
l Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,);
l Automated switch three staff gauge ((Depth d,level p,distance s);
100 independence setup, any criterion can be input freely, we can work in the scene without test block;
l Big memory of 300 A graph.
l Gate and DAC alarm;Acoustic-Optical alarm;
l RS232/USB port,communication with pc is easy;
l The embeded software can be online updated;
l Li battery, continue working time up to 10 hours;
l Display freeze;
l Automated echo degree;
l Angles and K-value;
l Lock and unlock function of system parameters;
l Electronic clock calendar ;
l Two gates setting and alarm indication;
l High-speed capture and very low noise;
l DAC,AVG ; Solid metal housing;
l Automated calculate the size of the flaw with w ide bottom type in AVG function.
l AWS D1.1;
l 6dB DAC functions;
l Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
l Powerful pc software and reports can be export to excel;
Measuring Range and Measuring Error
Range of scanning: 0 mm ~6000 mm
Resolution for scanning: 0.1mm (2.5mm ~100mm) 1mm (100 mm ~5999mm)
Range of gain: 0dB ~100 dB
D-Delay: -20µs~+3400µs
P-Delay: 0µs~99.99µs
Sound speed : 1000 m/s~15000m/s
Operation Environment
Temperature: -10℃~50℃
Humidity: 20%~90%RH
Free of strong magnetic field and corrosion.
Power supply
Li battery 7.4V 4800mAh
Overall Dimension and Weight
Overall dimension: 240mm×150mm×50mm
Weight: 1.6kg
Technical Parameters
Designation | Technical Data | |
Range of scanning (mm) | Range of scanning (mm):0~6000 Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000 Adjusting step: 0.1mm(2.5 mm~99.9mm),1mm(100mm~6000mm) | |
D-delay (ms):-20~+3400 Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600, 700,800,900,1000,1500,2000,2500,3000,3400. Adjusting steps: 0.1(-20ms~999.9ms),1(1000ms~3400ms) |
| |
P-delay:0.0~99.99 Adjusting steps: 0.01 |
| |
MTLVEL:1000~15000 7 fixed levels: 2260,2730,3080,3230,4700,5920,6300,12000 Adjusting steps: 1 |
| |
Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| |
0.5~15 |
| |
0~100 Adjusting step: 0.0,0.1,0.5,1,2,6,12 |
| |
0%~80% of screen height, step: 1% |
| |
Vertical linear error is not more than 3% |
| |
Not more than 0.2% in the scanning range |
| |
≥62 dB |
| |
≥34dB |
| |
Three modes, i.e. forbidden wave, loss wave and auto |
| |
Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
| |
300 A-Scan images (including setting of instrument)
|
| |
RS232/USB |
| |
mm/inch |
| |
Li battery 7.4V 4800mAh |
| |
Input 100V~240V/50Hz~60Hz Output 9VDC/1.5A |
| |
-10℃~50℃ |
| |
20%~90% |
| |
BNC / LEMO |
| |
240×150×50 |
| |
1.6 |
| |
Standard Configuration
Table 1.1 List of standard configurations
Designation | Quantity |
Main unit | 1 |
1.5A/9V power adapter | 1 |
probe connecting cable | 2 |
Carrying case | 1 |
Instruction manual | 1 |
Straight probe | 10mm 4MHz (One) |
Angle probe | 8×9 60°4MHz (One) |
Options
Table 1.2 List of options
Designation | Quantity |
Serial cable | 1 (9 pin) |
Communication software for PC | 1 set |
