Laizhou Weiyi-Ultrasonic Flaw Detector KUT650
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weiyi
Model Number:
KUT650
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
Weiyi
Model Number
KUT650
After-sales Service Provided
No overseas service provided

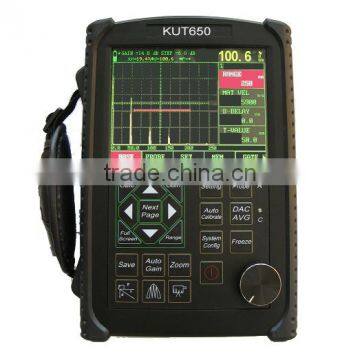

KUT650 Ultrasonic Flaw Detector
- Automated calibration,Automated gain
- DAC,AVG,TCG,B scan,AWS
- High-speed capture and very low noise
- Solid metal housing
- high contrast viewing of the waveform from bright
- Powerful pc software and reports can be export to excel
Features
- Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,);
- Automated switch three staff gauge ((Depth d,level p,distance s);
- Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
- Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
- 6dB DAC functions;
- Standards of test for DAC is saved.
500 independence setup, any criterion can be input freely, we can work in the scene without test block;
- Big memory of 1000 A graph
- Automated gain and gain scan;
- Peak Hold and Peak Memory;
- B scan;
- AWS D1.1
- Automated make video of test process and play; use USB flash disk,the length of video is unlimited.
- Powerful pc software and reports can be export to excel;
- Li battery, continue working time up to 10 hours;
- The embeded software can be online updated;
Other assistant function
- Display freeze;
- Automated echo degree;
- Angles and K-value;
- Lock and unlock function of system parameters;
- Electronic clock calendar ;
- Two gates setting and alarm indication;
- Gate and DAC alarm;
Specifications
Title |
Parameter |
Title |
Parameter |
Measuring Range(mm) |
0 ~ 10000 |
Measurement Mode |
Single,Dual,Thru |
Vertical Linearity Error |
≤3% |
Reject |
0~80% |
Horizontal Linearity Error |
≤0.1% |
Pulse Displacement(μs) |
-20 ~ +3400 |
Sensitivity Leavings |
≥62dB |
Zero(μs) |
0.0 ~ 99.99 |
Dynamic range |
≥34dB |
Port Type |
BNC / LEMO |
Resolving Power |
≥36dB |
Operating Temperature (℃) |
-20~50 |
Frequency Range(MHz) |
0.5 ~ 15 |
H×W×D(mm) |
240×156×50 |
Gain(dB) |
0 ~ 120 |
Weight(kg) |
1.0(with battery) |
Material Velocity(m/s) |
1000 ~ 15000 |
|
|
