SYJ-400 CNC Cutting/Dicing Saw

SYJ-400 CNC Cutting/Dicing Saw thumbnail-1
SYJ-400 CNC Cutting/Dicing Saw thumbnail-2

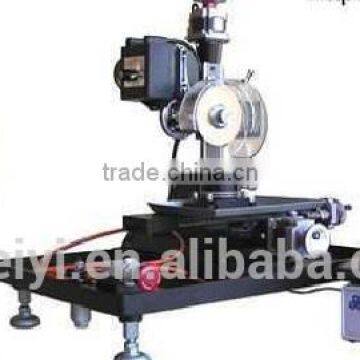

SYJ-400 CNC Cutting/Dicing Saw photo-1

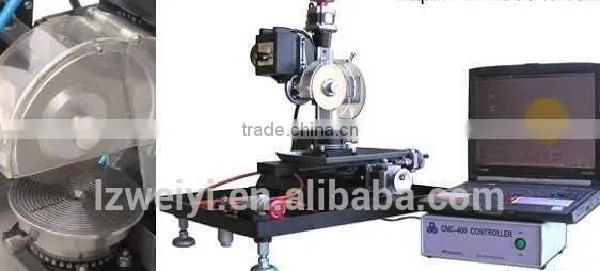

SYJ-400 CNC Cutting/Dicing Saw photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
weiyi
Model Number:
SYJ-400 CNC Cutting/Dicing Saw
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name weiyi
Model Number SYJ-400 CNC Cutting/Dicing Saw

SYJ-400 CNC Cutting/Dicing SawSYJ-400 CNC Cutting/Dicing Saw

Detail



Model:

SYJ-400 CNC Cutting/Dicing Saw

Brief Introduction:

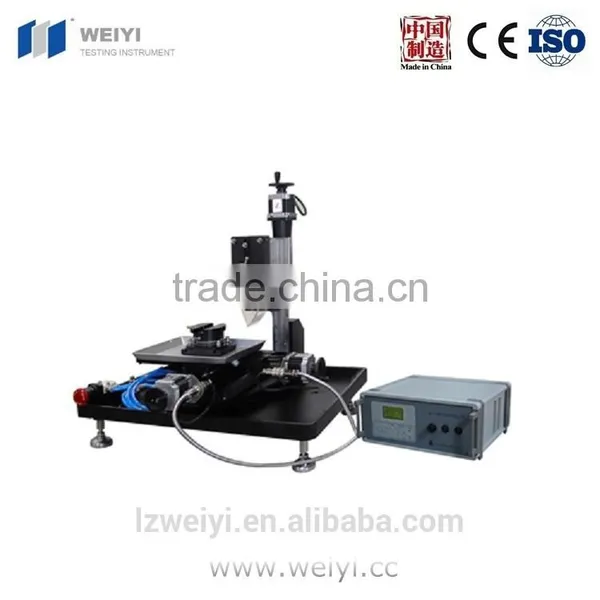

SYJ-400 CNC Cutting/Dicing Saw is a CE certified cutting saw, designed from the manufacture of precision computerized milling and grinding machine. Main motor, adjustable speed box, lead screw, hand wheel, lead rail, stepping motor are imported from US. It can be used for cutting and dicing all kinds of materials, depth can reach to 25mm. The machine is completely controlled by computer, accuracy is 0.01mm, providing a full MTI operating program, or single board machine operating program, can be programed by customer, automatic cut. Sample flatform can rotate 360°, equipping with one cross mount vise, one vacuum chuck.

Main

Feature:

SYJ-400 CNC Cutting/Dicing Saw:High precision processing, program is flexible and diversified, easy to operate.

Technical

Parameter:

1. 0.5HP high torque DC motor, Stepless speed adjust:0-3000RPM,Voltage:110V-220V
2. X=230mm, Y=130mm, Z=110mm(Max. travel distance).PC control stepping motor moving resolution:0.0025mm, Position accuracy:0.01mm.
3. Equip with one precision sample platform(Dia:80mm), can turn 360° , cutting angle tolerance:+ /-0.5 .

4. Dia. precision vacuum pump:100mm
5. Blade clamps(3 set):Φ90mm, Φ62mm, Φ42mm

6. Cutting depth:50mm

Specification:

Size:580×560×660mm  Weight:39kg

Standard Accessories:

1.

Electroplating diamond blade :    Φ100×12.7×0.4mm

2pcs



2.

Full sintered Diamond Blade:Φ100×12.7×0.35mm

1pc



3.

Vacuum pump

1set



4.

Cross mount vise

1set



5.

Aluminum Plate

2pcs



6.

Steel plate for holding sample

2pcs



7.

Blade clamps

3set



8.

Wax

4pcs



9.

Resin ceramic block

2pcs





Optional Accessories :

1. Edge sintered Diamond Blade:150×12.7×0.40mm

2. Dicing diamond blade

3. TW-0.5C Vacuum pump

4. Water-proof cover

Product Purpose:

Used for cutting crystal, ceramic, glass, rock, metal samples.

Standard package

Standard package( shock absorption and  moisture proof)
