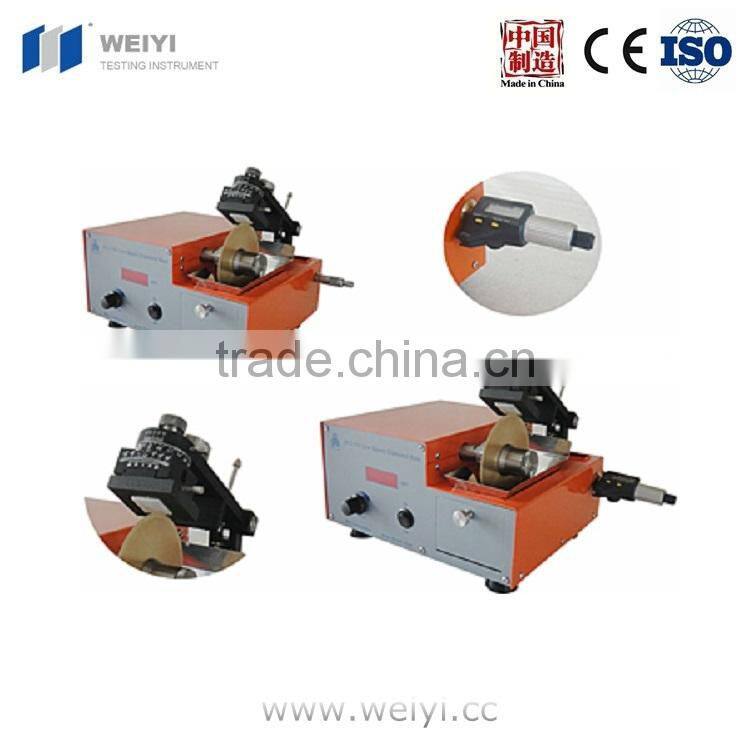

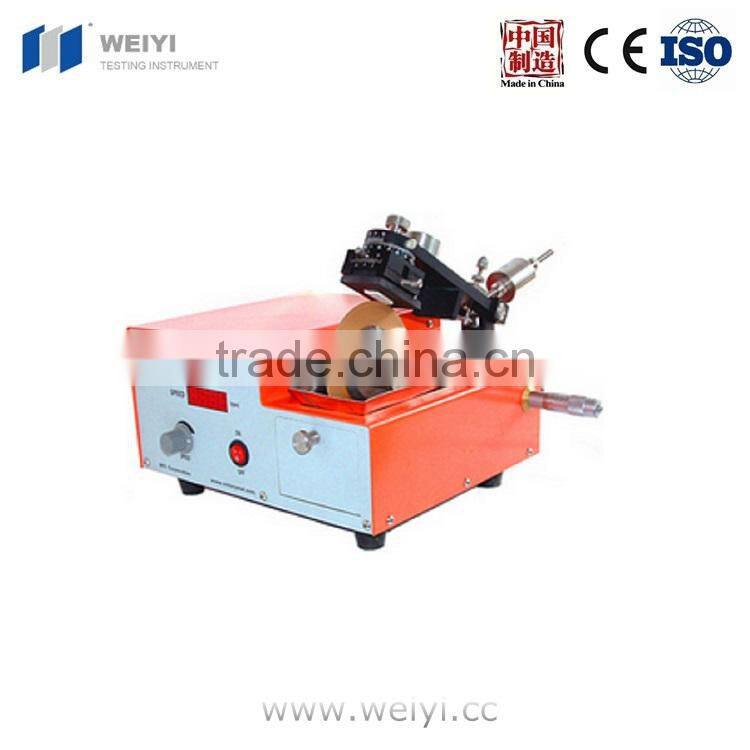

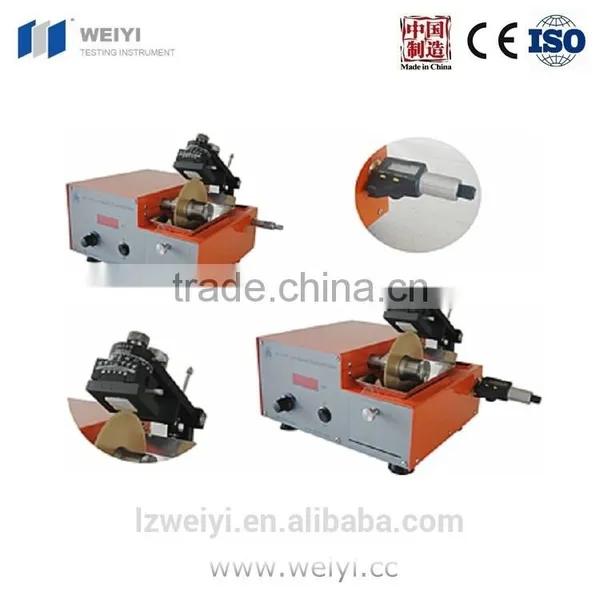

SYJ-150 Precision Cutting Machine

SYJ-150 Precision Cutting Machine thumbnail-1
SYJ-150 Precision Cutting Machine thumbnail-2
SYJ-150 Precision Cutting Machine photo-1
SYJ-150 Precision Cutting Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WEIYI
Model Number:
SYJ-150
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name WEIYI
Model Number SYJ-150
After-sales Service Provided Overseas service center available

SYJ-150 precision cutting machineSYJ-150 precision cutting machine

Detail





Model:

SYJ-150 Low Speed Diamond Saw

Brief Introduction:

SYJ-150 Low Speed Diamond Saw is CE certified, used to precision cut the material samples for researching. Such as crystal, ceramic, glass, rock, mineral, refractory materials, PCB board, metal, building materials, plastic samples etc.



Main

Feature:

Used for precision cutting the material samples, high torque, running steady, can cut the thickness of various materials(0.1mm). Suitable for samples' follow-up thinning, polishing and various operation.

Technical

  Parameter:

1. Speed range:20-600RPM stepless speed adjust

2. Voltage:AC 110V/220V
3. Position accuracy:0.01mm(Mechanical and digital display, digital display should be purchased in selection)
4. Two dimension, angle adjustable:spinning 360°
5. Travel distance:50mm(Fine adjustment travel distance 25mm)
6. Max dia. wafer blade:100mm(4 inch)
7. Automatic shut off:allowed unattended
8. Digital display axis RPM

Specification:

Size:360×260×260mm  Weight:17.5kg

Standard Accessories:

1

Adjustment sample holder

1set

2

Mini-vise





1 pc



3

O-ring of driving Motor

2 pcs



4

Full sintered diamond blade(Φ100mm×12.7mm×0.35mm)

1 pc



5

 Electroplating diamond blade(Φ100mm×12.7mm×0.4mm)

2 pcs



6

Sic blade(Φ100mm×12.7mm×0.4mm)

10 pcs



7

Al2O3 blade(Φ100mm×12.7mm×0.4mm)

10 pcs

8

Resin ceramic block(50mm×50mm×12mm)

2 pcs

9

Aluminum plate (25mm×50mm×7mm)

2 pcs

10

High quality wax bulks for samples bounding

2 pcs

11

Blade clamps(Φ62mm, Φ46mm, Φ35mm)

3 set



Optional Accessories :

1. Sintered diamond Blade:Φ100mm×12.7mm×0.33mm
2. Electroplating diamond blade:Φ100mm×12.7mm×0.4mm
3. Sic blade:Φ100mm×12.7mm×0.4mm
4. Al2O3 blade:Φ100mm×12.7mm×0.4mm


SYJ-150 precision cutting machineSYJ-150 precision cutting machine
