JAC 15000 Liter Water Truck

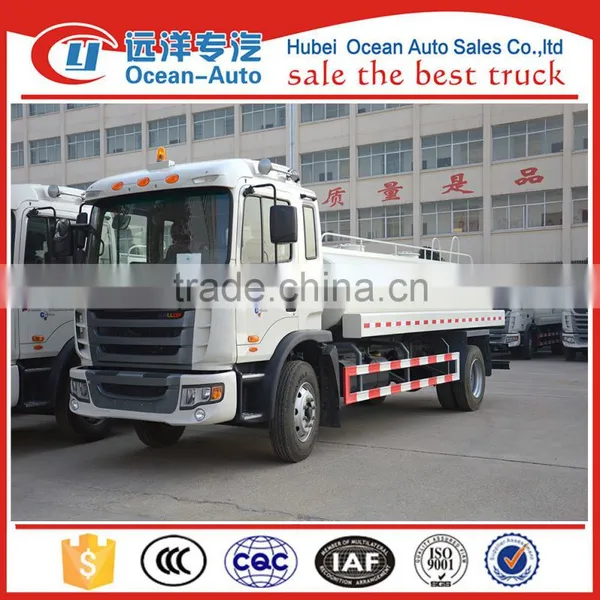

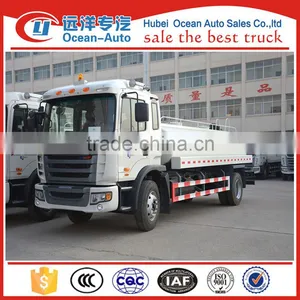

JAC 15000 Liter Water Truck photo-1

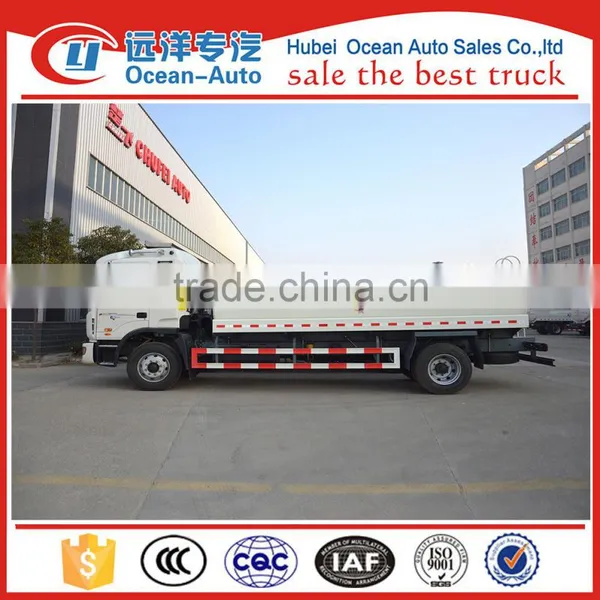

JAC 15000 Liter Water Truck photo-2

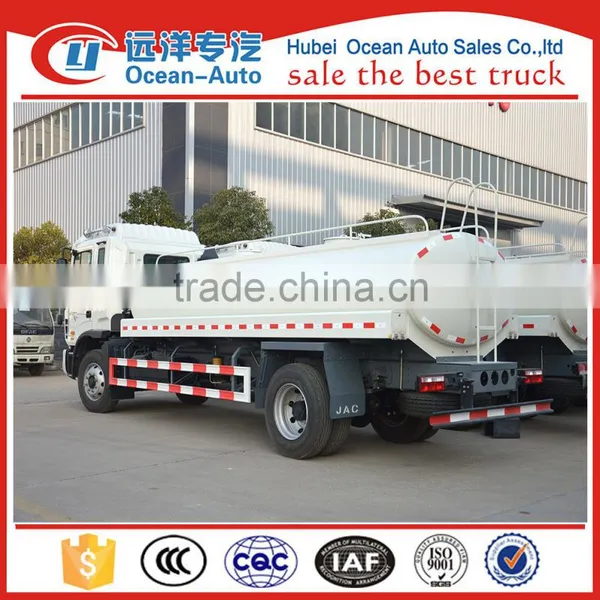

JAC 15000 Liter Water Truck photo-3

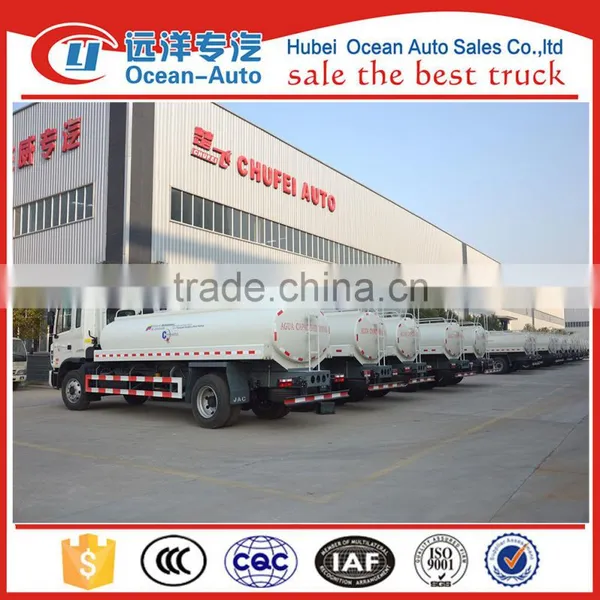

JAC 15000 Liter Water Truck photo-4

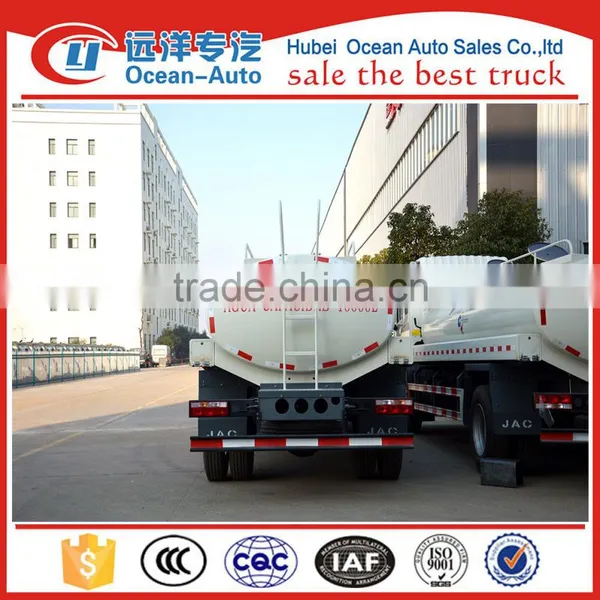

JAC 15000 Liter Water Truck photo-5
US$ 28,500 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Storage:
Water
Drive Wheel:
4x2
Payment & Shipping
Payment Methods:
Port of Shipment:
Usually Shanghai port or any other ports in China as your request about water spray truck
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Storage Water
Drive Wheel 4x2
Horsepower 150 - 250hp
Transmission Type Manual
Fuel Type Diesel
Tank Volume 10001 - 15000L
Engine Capacity 6500
Dimensions (L x W x H) (mm) 8320X2495X3080
Brand Name JAC
Place of Origin Hubei, China
Model Number DTA5160GSSL4
Gross Vehicle Weight 15950

JAC 15000 liter water truck



Water truck Parameters



Main specification

Product model and name

DTA5160GSSL4 water transport tanker trucks for sale

Gross weight(Kg)

15950

Drive type

4X2

Payload(Kg)

10000

Overall dimension(mm)

8320X2495X3080

Curb weight(Kg)

5755

Cab seats

3

Approach/departure angle(°)

18/13

Front/rear hang(mm)

1530/2290

Axle No.

2

Wheelbase(mm)

4500

Axle load(Kg)

5950/10000

Max speed(Km/h)

98

Chassis specification

Chassis model

HFC1166K1R1ZF

Manufacturer

Anhui Jianghuai Auto Co.,Ltd

Brand name

JAC

Dimension(mm)

7030X2495X3610

Tyre specification

9.00R20

Tyre No.

6

Steel spring number

9/9+7

Front track base(mm)

1830

Fuel type

Diesel

Rear track base(mm)

1810

Emission standard

Euro 4

Transmission

6 forward gear,1 reverse gear

Cab

Half height top cab with sleeper. luxurious interior trim with seats, power steering, Air condition is optional

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

YC6J180-42

Guangxi Yuchai Machinery Co.,Ltd

6500

132

Performance

Tank volume(m³)

10 to 15(10000 to 15000liter)

Tank material

Carbon steel Q235 or stainless steel

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28





Features and Applications

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.





Product overviews

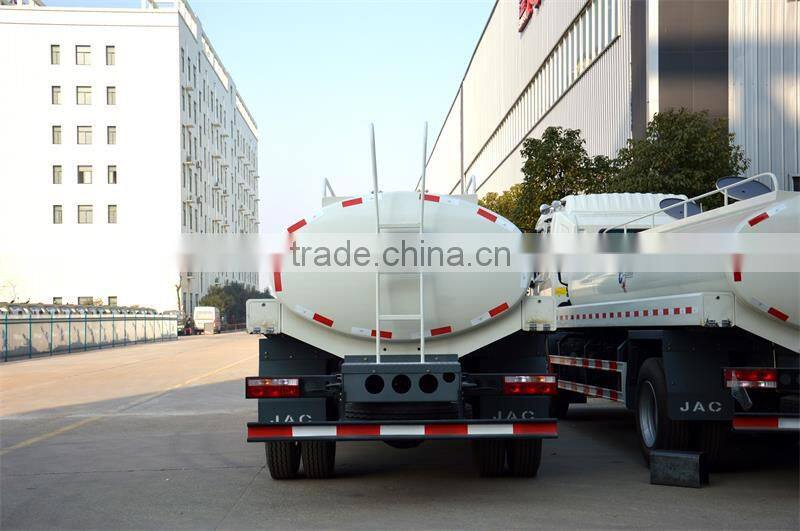

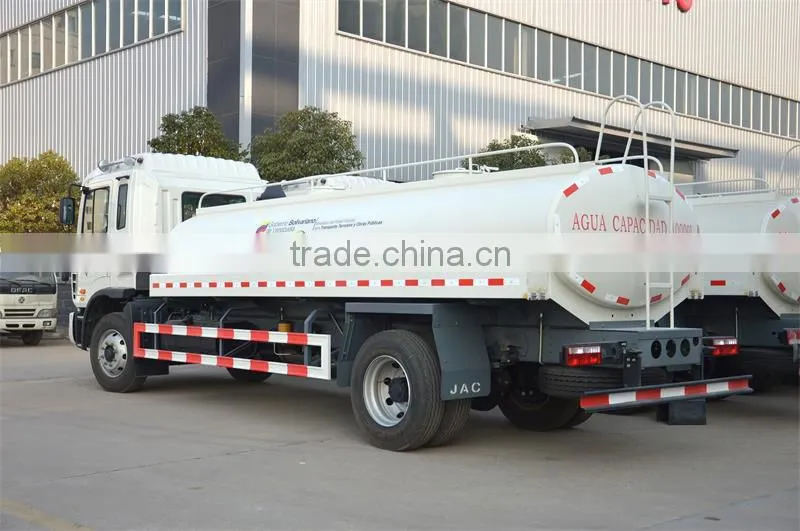

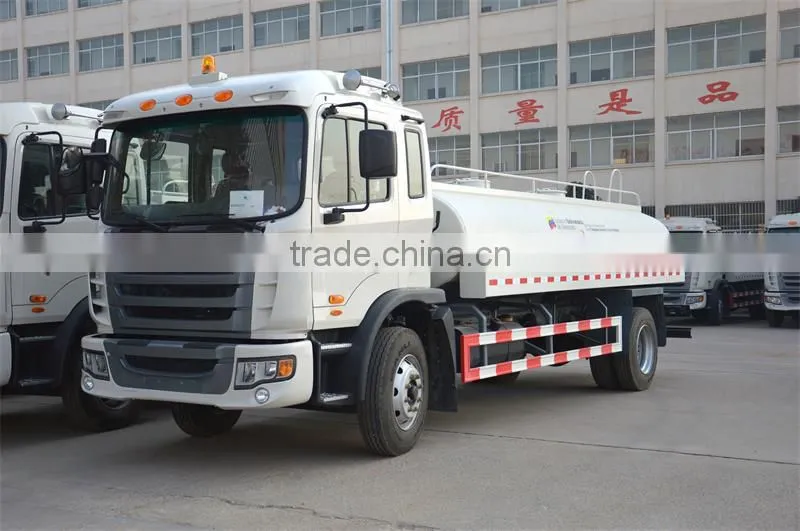

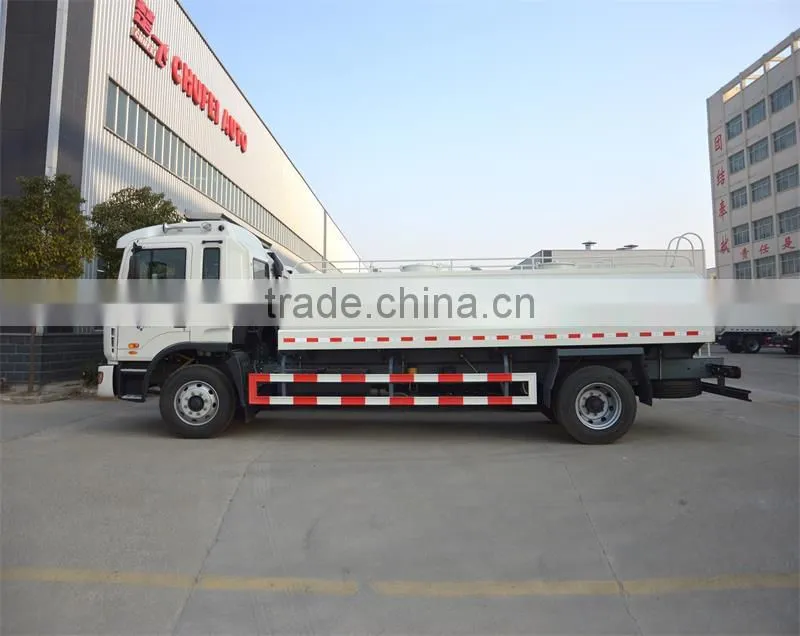

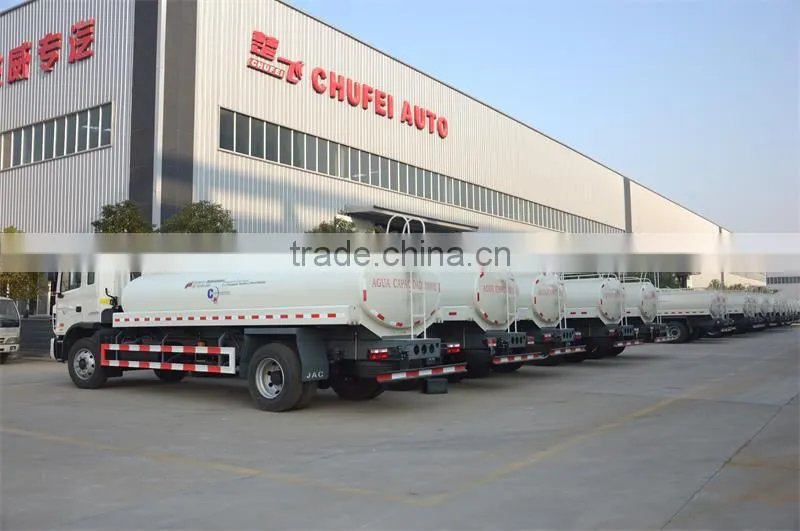

JAC 15000 liter water truckJAC 15000 liter water truckJAC 15000 liter water truckJAC 15000 liter water truckJAC 15000 liter water truck







Packaging & Shipping

1.About the package of our vehicles , usually  it  is  nude that covered   with wax.  And it also  can be packed  as  your  need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport  / Container packing / SKD /  etc. And it  can  be offered according to your request.

Our Services

More details about how to operate and maintain the vehicles,please contact me directly,  we have  a  professional  team and professional answer for you.

Company Information

JAC 15000 liter water truckJAC 15000 liter water truck

FAQ



1, Delivery time

Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY.



2, Terms of payment

30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.



3, After-sales warranty to solve our clients’ worries when purchasing

The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life.
