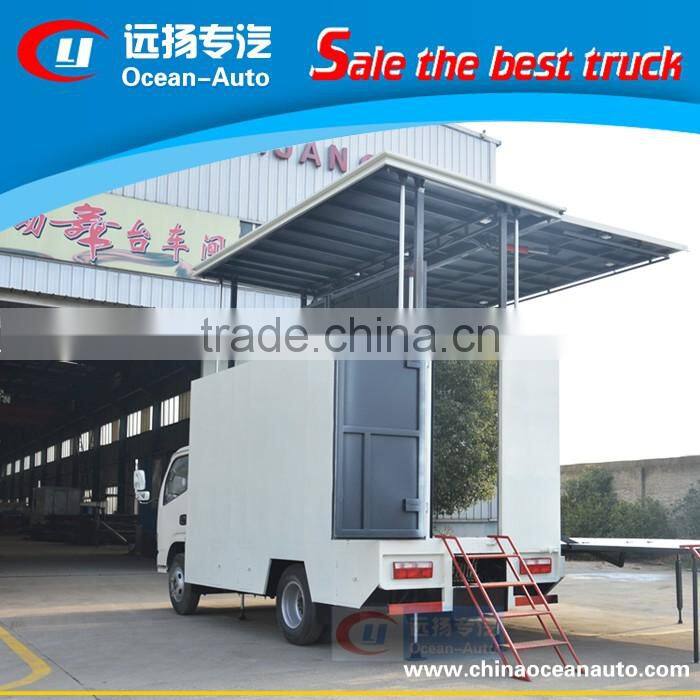

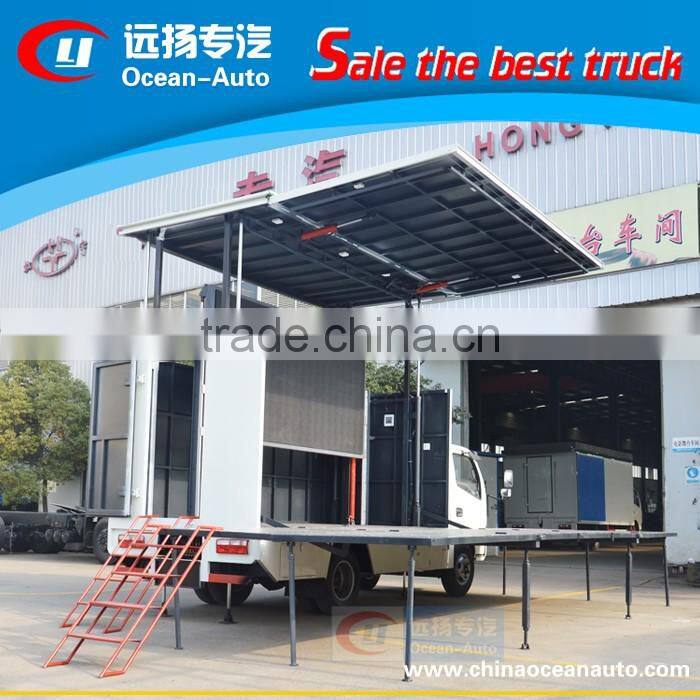

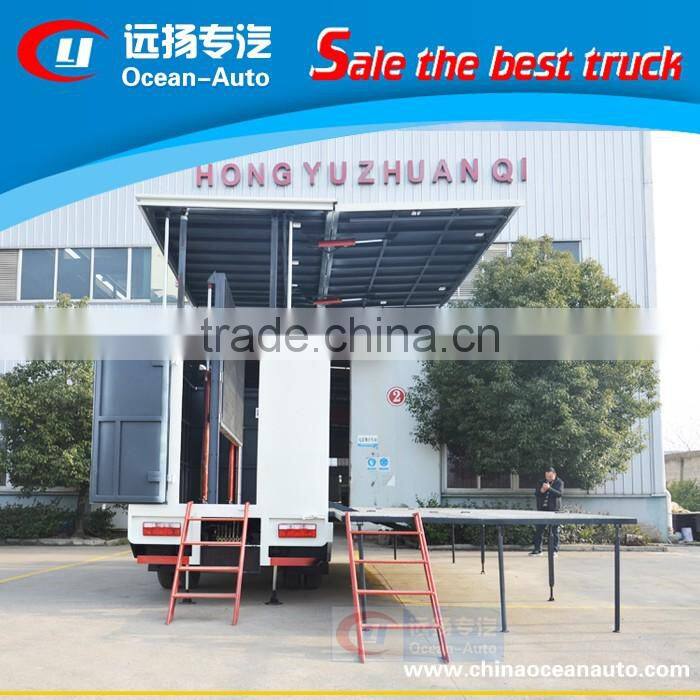

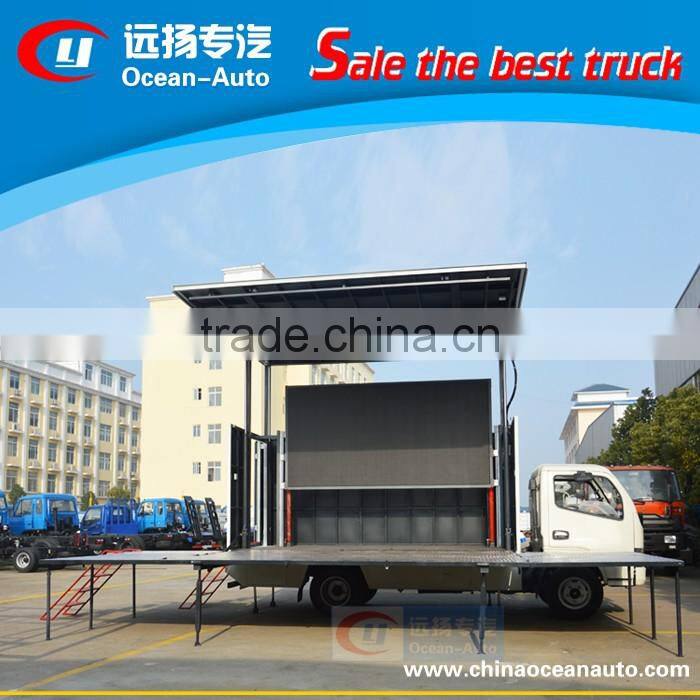

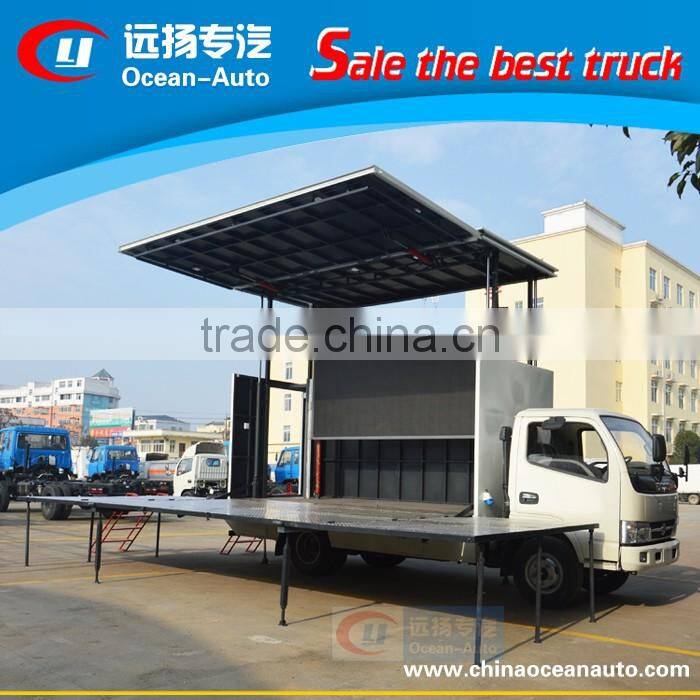

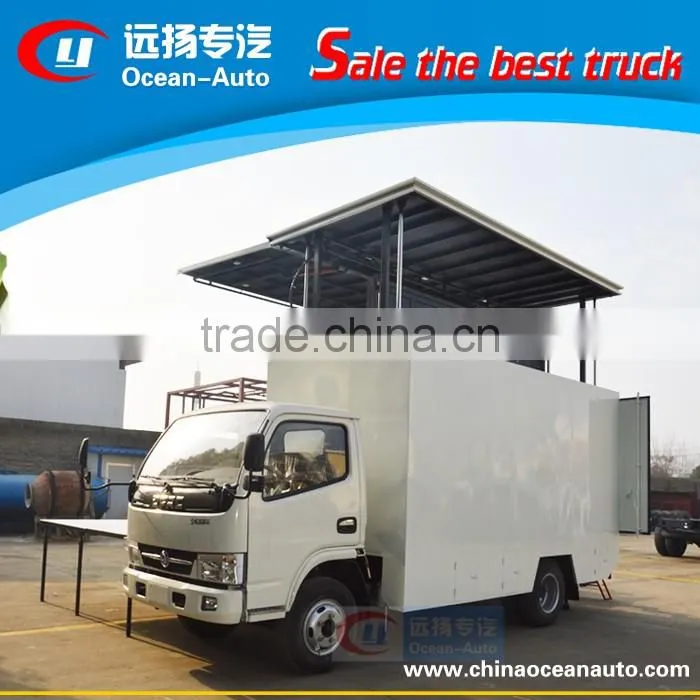

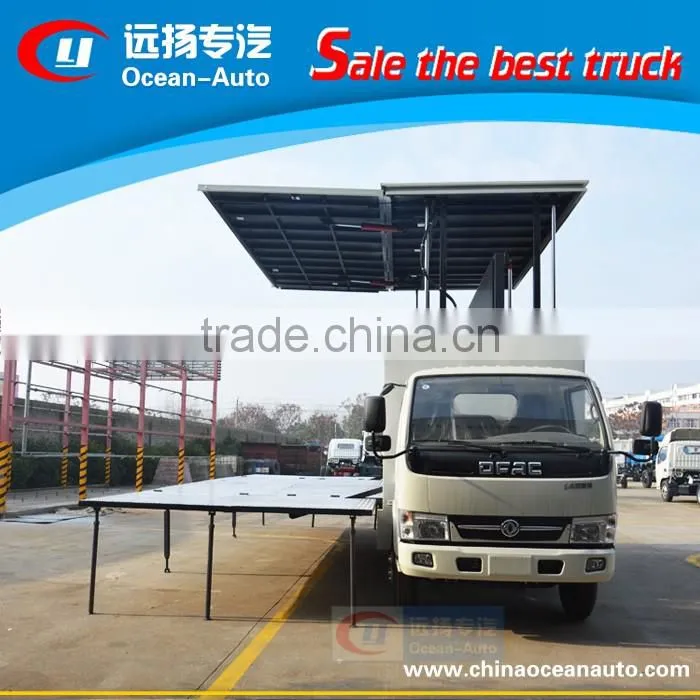

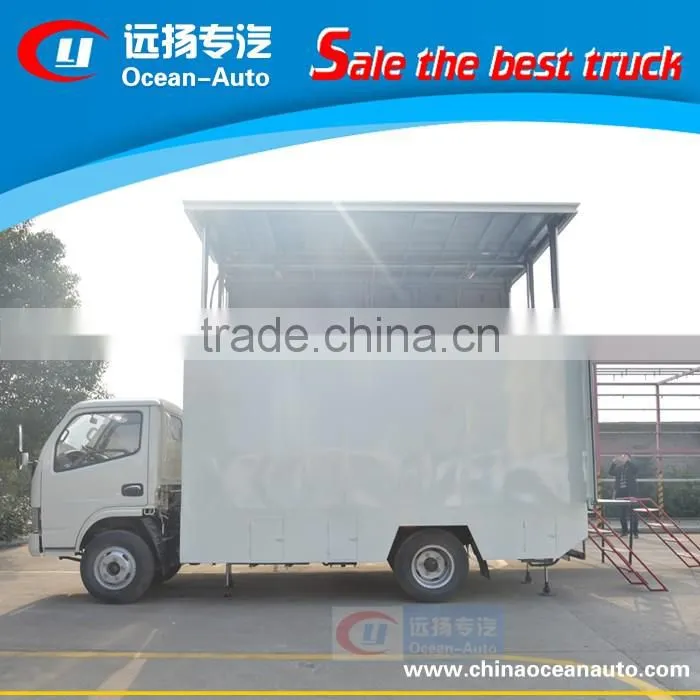

Chinese DFAC Mini Stage Truck For Sale
Main specifications | ||||||||||
Product model,name | CLW5041XWT4 Mobile stage truck | |||||||||
Gross weight(Kg) | 4495 | Driving type |
| |||||||
Payload (Kg) | 415,350 | Overall dimension (mm) | 5995×2000×2850 | |||||||
Curb weight(Kg) | 3950 | Cab seats (man) | 3 | |||||||
Approach/departure angle (°) | 19/12 | Front/rear hang(mm) | 1032/1663 | |||||||
Axle No. | 2 | Wheelbase (mm) | 3300 | |||||||
Axle load(Kg) | 1800/2695 | Max speed(Km/h) | 95 | |||||||
Top rising height(mm) | 1300 | Box dimension(mm) | 4200×2495×2250 | |||||||
Chassis specifications | ||||||||||
Chassis model | DFA1041SJ35D6 | Manufacture | Dongfeng Motor Co.,Ltd | |||||||
Brand name | dongfeng | Overall dimension (mm) | 5845×1900×2220 | |||||||
Tire specification | 7.00R16 | Tires No. | 6 | |||||||
Steel spring number | 8/9+5 | Front track(mm) | 1506 | |||||||
Fuel type | diesel | Rear track(mm) | 1466 | |||||||
Emission standard | Euro 4 | Gear box | 5 forward gear,1 reverse gear | |||||||
Cab |
| |||||||||
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | |||||||
D28D10-4DA
| Guangxi Yuchai Machinery Co., Ltd | 2771 | 75(102hp) | |||||||
Optional chassis engine: | ||||||||||
Stage body | ||||||||||
Expansion area(m2) | 20-25 | Stage material | 12mm waterproof bamboo plywood | |||||||
Start time | 8-15minutes | pack time | 8-15 minutes | |||||||
Main Characteristic | ||||||||||
Mobile stage truck is a convenient flow performance, and can become the stage of special automobile, The mobile Stage area from 16-80 square meters to meet all customers’ different requires. mainly have three type of expansion: on the side expansion,two side expansion and three side expansion,In generally,We have dfac mobile stage truck, forland mobile stage truck,Jac mobile stage truck,JAC mobile stage truck, Isuzu mobile stage truck..More information,pls contact me directly.
| ||||||||||
Packaging &Shipping
1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. |
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 20-25 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 10000klm.
Customer Visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
Tracy Tian
International Sale
Skype:chengli.truck
Mobile:+86-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
What's APP:008615897648732
Hubei Chengli Ocean Auto Sales Co., Ltd
Capital of Special Purpose Vehicle, Suizhou City, Hubei Province, China
