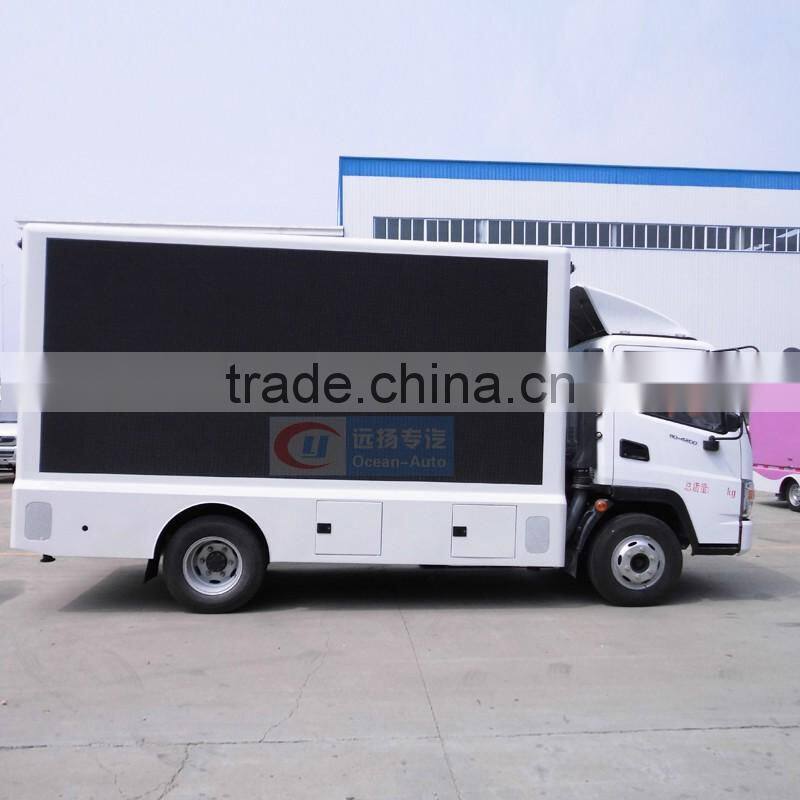

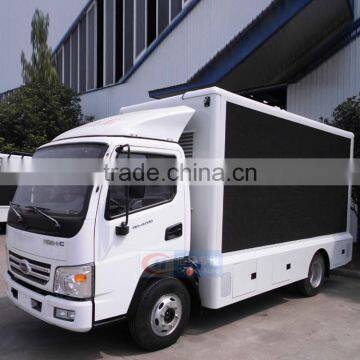

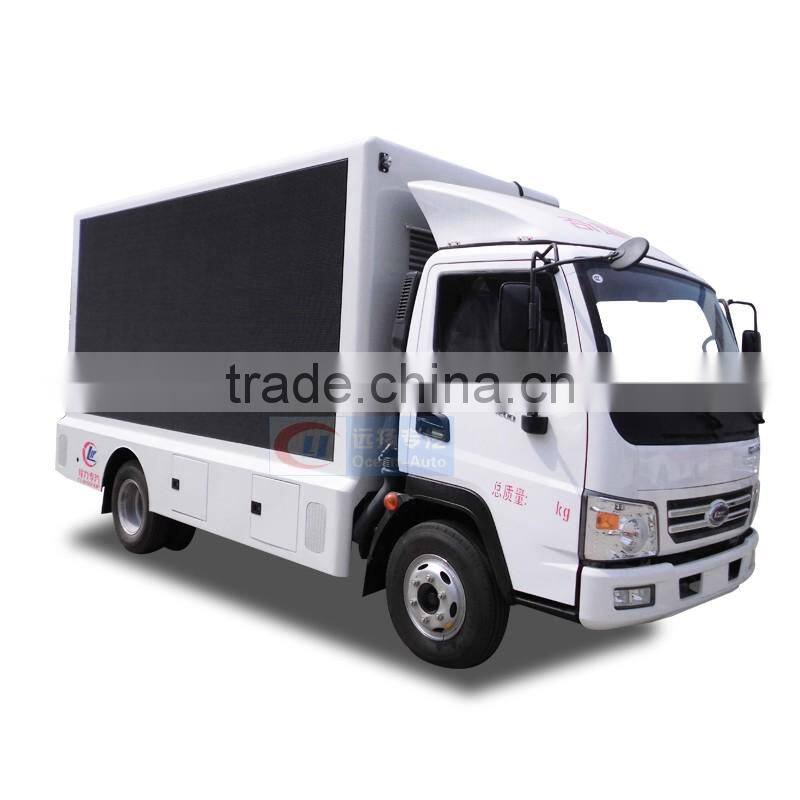

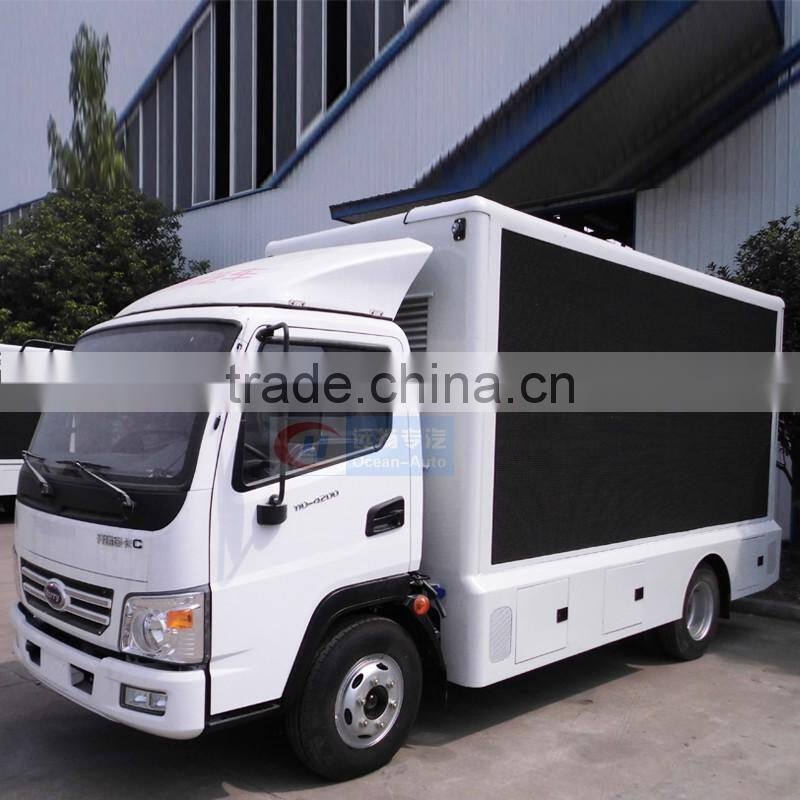

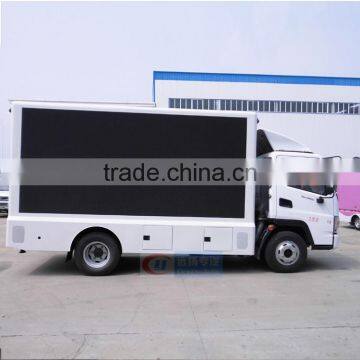

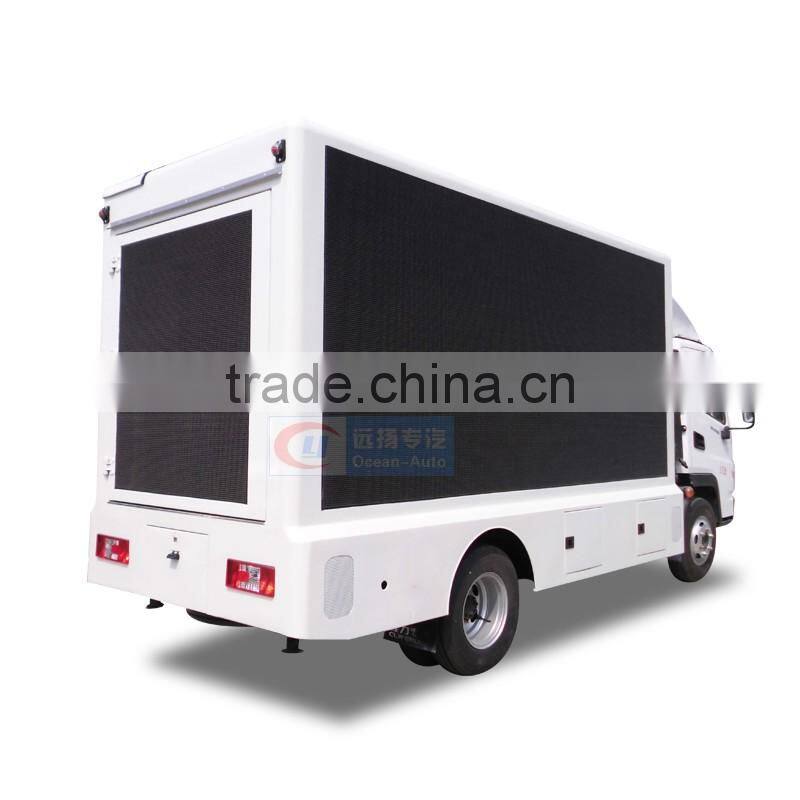

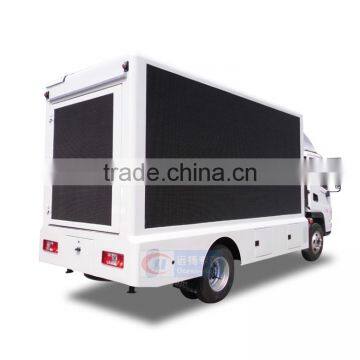

China karry Led Mobile Advertising Truck / Display Truck
Main specification | ||||||||
Product model,name |
CLW5040XXCQR Mobile LED Truck |
|||||||
Total weight(Kg) |
4495 |
Drive type |
4 x 2 |
|||||
Curb weight(Kg) |
4365 |
Overall dimension (mm) |
5995*2030*3050 |
|||||
Wheelbase(mm) |
3360 |
Cab seats (man) |
2 |
|||||
Approach / departure angle(°) |
22/17 |
Front/rear hang(mm) |
1125/1510 |
|||||
Axle load |
1981/2514 |
Max speed(Km/h) |
100 |
|||||
Chassis specification | ||||||||
Chassis model |
SQR1043H16D-E |
Manufacturer |
Chery commercial vehicles (Anhui) Co., Ltd. |
|||||
Brand name |
Karry |
Number of axes |
2 |
|||||
Tire specification |
7.00R16LT8PR |
Tires No. |
6 |
|||||
Leaf spring |
9/6+4 |
Front track(mm) |
1609 |
|||||
Type of fuel |
Diesel |
Rear track(mm) |
1485 |
|||||
Emission standard |
Euro IV |
Transmission |
5 Forward Gear |
|||||
Driving cab |
Luxurious interiors and seats, motivating steering, air conditioning, central lock, electric window |
|||||||
Engine model |
Engine Manufacturer |
Displacement(ml) |
Power(KW) |
|||||
4J28TC |
Foton motor co., LTD |
2771 |
81 |
|||||
Mobile LED truck specification | ||||||||
|
LED screen size (length x high)(mm) |
3840 x 1760 |
Led side screen area (m2) |
6.8 |
|||||

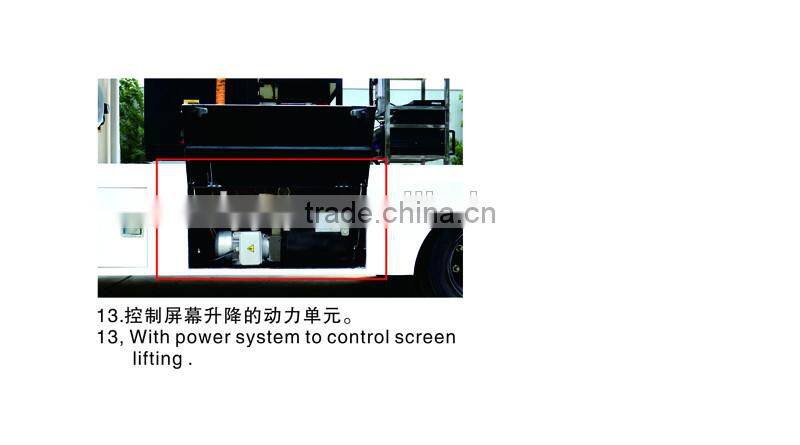

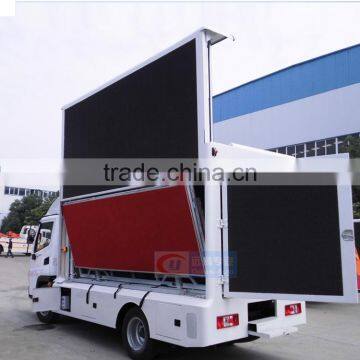

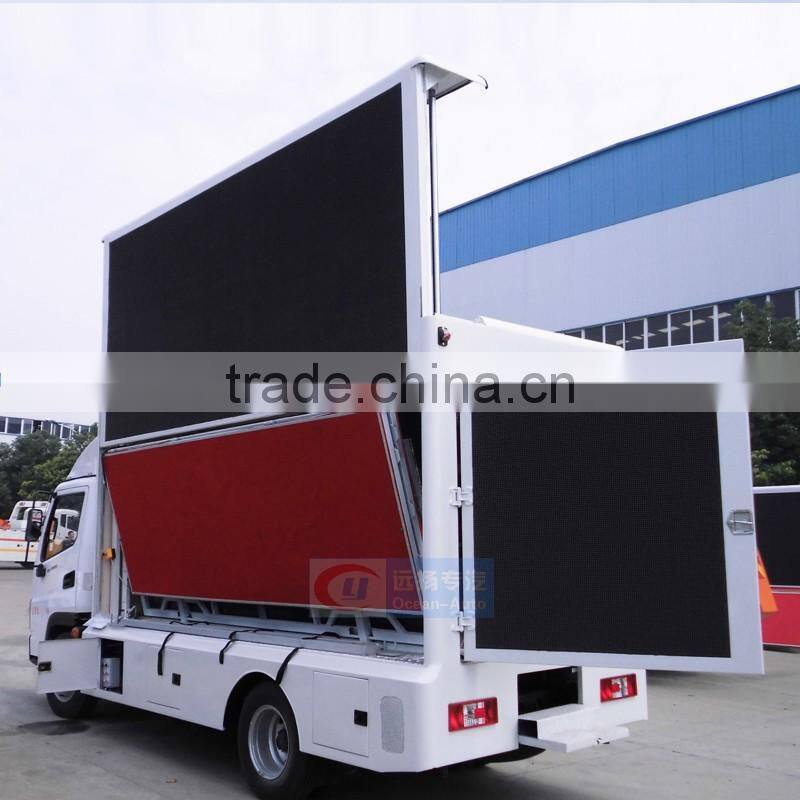

Screen Lift Height(m) |
1.5 |
LED screenpixel pitch(mm) |
10 |
|||||
Roller Screen Size(m2) |
6.8 |
Rear monochrome screen size(m2) |
1.84 |
|||||
Remark |

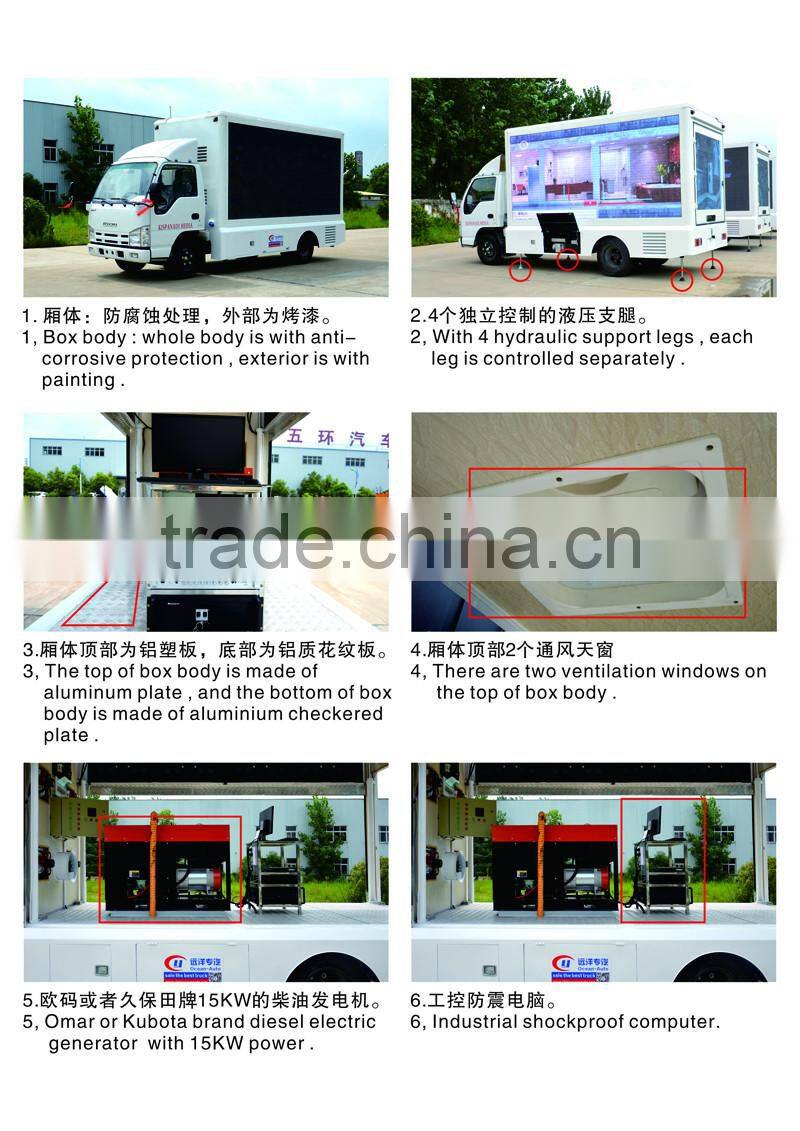

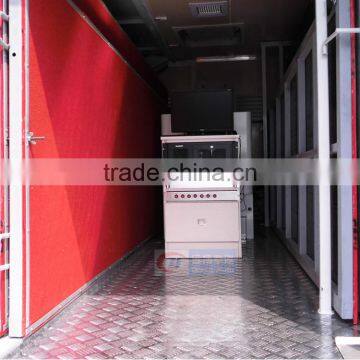

There be equipped the Silent generator, wooden floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body , and 220V external power connector outside the body. According to customers' requirements, it can be equipped the LED screen lifting system and hydraulic extenstion stage, which will be a multi-purpose truck. |
|||||||
[The Main Features of LED truck] | ||||||||
|
1.This truck is a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts and so on! 2.Can be showing at any time, communication, interaction, publicity coverage extensively. And meanwhile effectively get the best of advertising effect,, 3.According to own requirement. you can select the left and right sides and the back medium(include LED full color, Monochrome LED, Light box advertising) , Led full colour screen can be chose P10, P8, P7, P6. | ||||||||

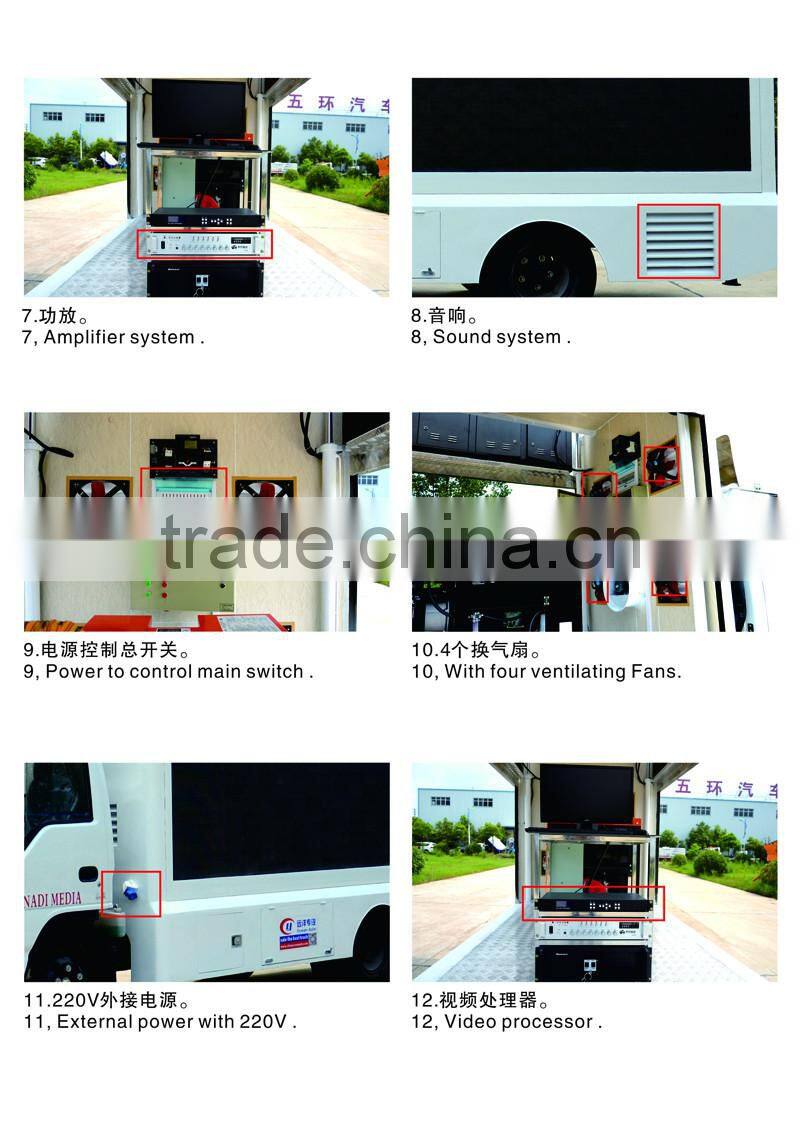

Spare part for the outdoor Led Advertising Truck
Packaging &Shipping
|
1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. |
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 20-25 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 10000klm.
