Dongfeng 22M high platform lifting operation truck with water function from original factory
High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.
The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
1.Technical specification
I. Vehicle Parameter | ||||||||||||
1, model,name | CLW5110JGKZ3 Overhead working truck | 2, brand name | Dongfeng | |||||||||
4, Overall dimension | 10100×2500 ×3800 mm | 5,curb weight | 10825 Kg | |||||||||
6,Max working height | 22m | |||||||||||
7,cab seats | 3 | 8,Max speed | 85 km/h | |||||||||
9,Transmission | 6 forward gear,1 reverse gear | |||||||||||
10,Approach/ departure angle | 20/10 ° | 11,front/ rear hang | 1430/2860 mm | |||||||||
12,steering type | Left- hand drive( right-hand drive can opt) | |||||||||||
13,cabin | Yellow(other colors are available Flat, luxurious interior trim and seat, with air conditioning and power steering,forward flip. | |||||||||||
14,Performance characteristic | A:before working, stretch out 4 H-type supporting legs to keep the vehicle safe and stable when working; B:the vehicle can rotate with 360 degree,two sets of hydraulic working handles; C:flat double cab,the vehicle can carry 5-6 persons;D:hook is optional, hook lifting weight is 1-1.5 tons. | |||||||||||
15, Application | It is mainly used in circuit maintenance, road lamps repair, high-altitude working and cleaning, tree pruning and other of high-altitude operation. | |||||||||||
II. Chassis parameter | ||||||||||||
1, Chassis model | DFL1120B | 2, Brand name | DongFeng | |||||||||
3,manufacturer | DongFeng Motor Co.,Ltd.(China second automobile group company) | |||||||||||
4,Drive type | 4 x 2 | 5,Wheel base | 4700 mm | |||||||||
6,Front track base | 1880 mm | 7,Rear track base | 1800,1860 mm | |||||||||
8,Tire specification | 9.00R20 | 9,Tire number | 6+1(spare tyre) | |||||||||
10,axle load | 4400/8095 kg | 11,axle number | 2 | |||||||||
III. Engine parameter | ||||||||||||
1,engine type(emission/power) | B170 30( 5900ml / 125kw ) | |||||||||||
2, Engine manufacturer | DongFeng engine Co.,Ltd. | |||||||||||
3,Fuel type | Diesel | 4,Emissions standards | Euro3 | |||||||||

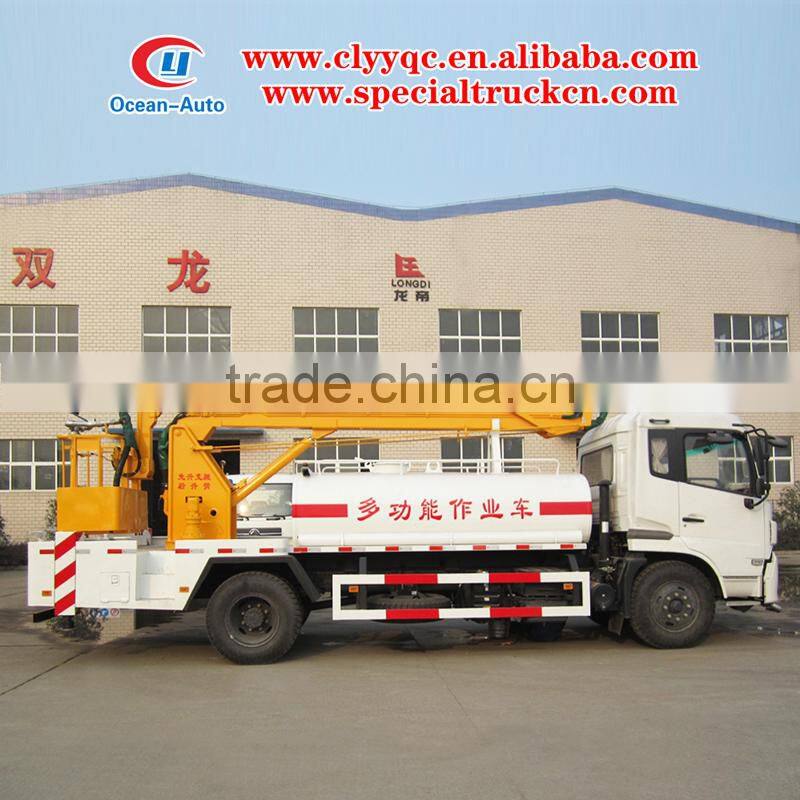

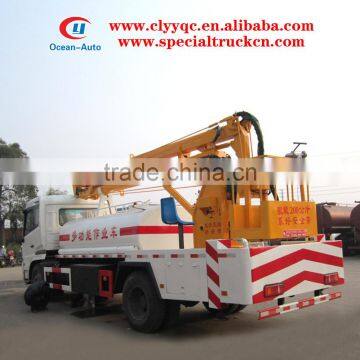

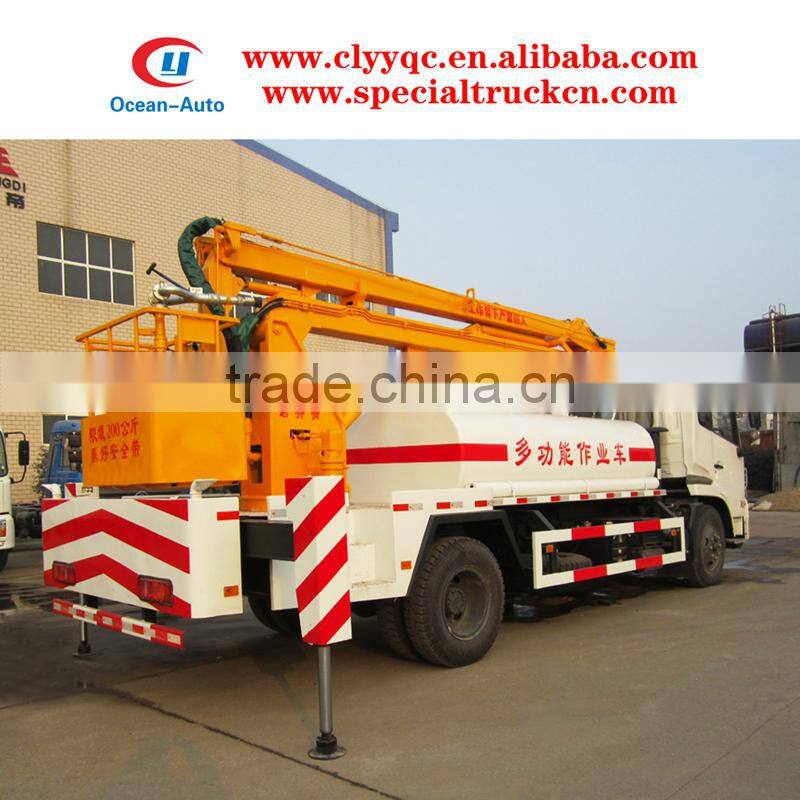

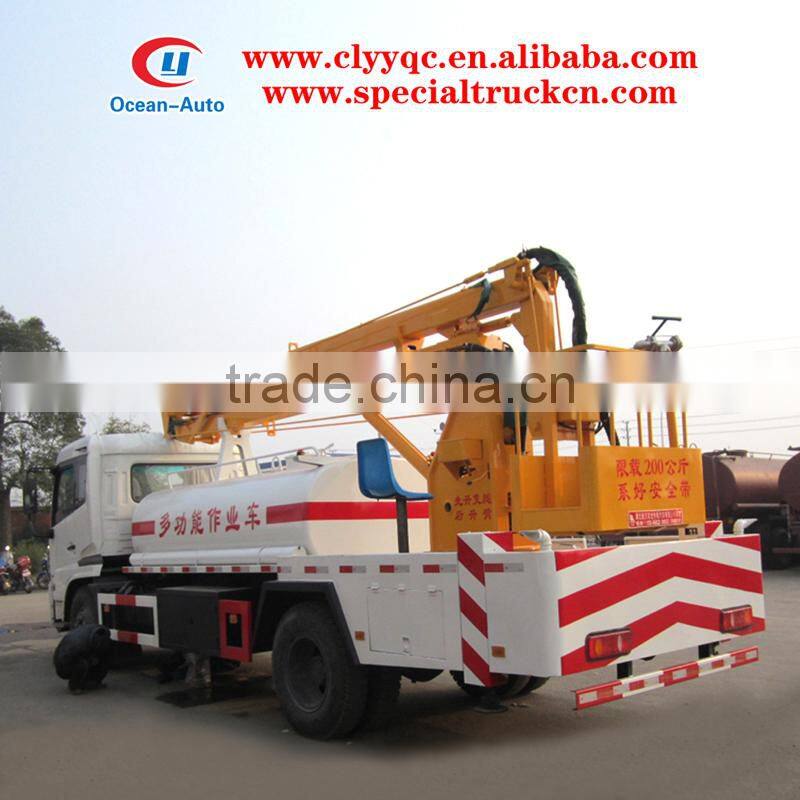

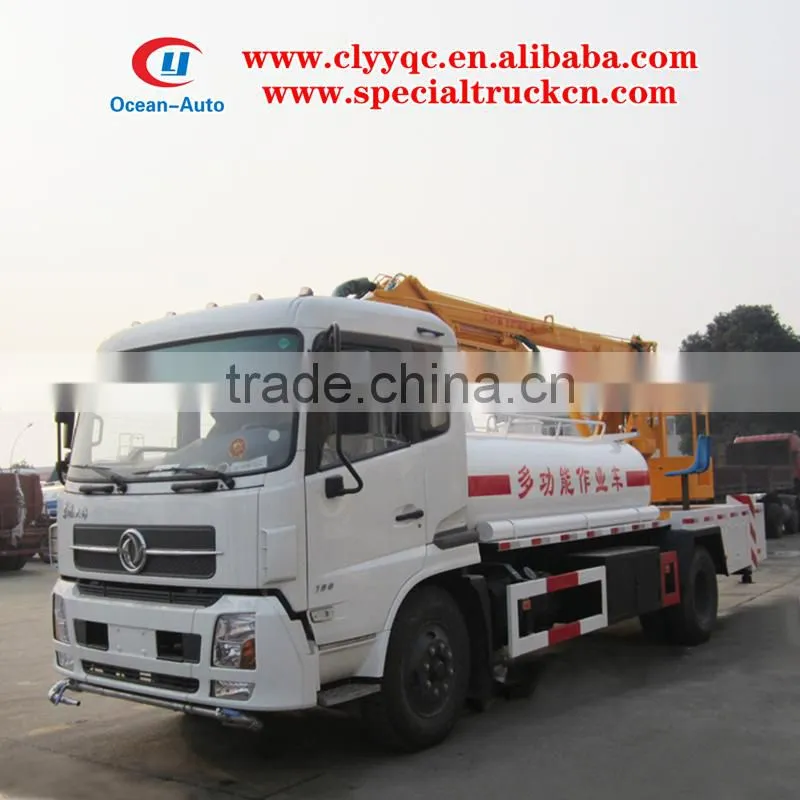

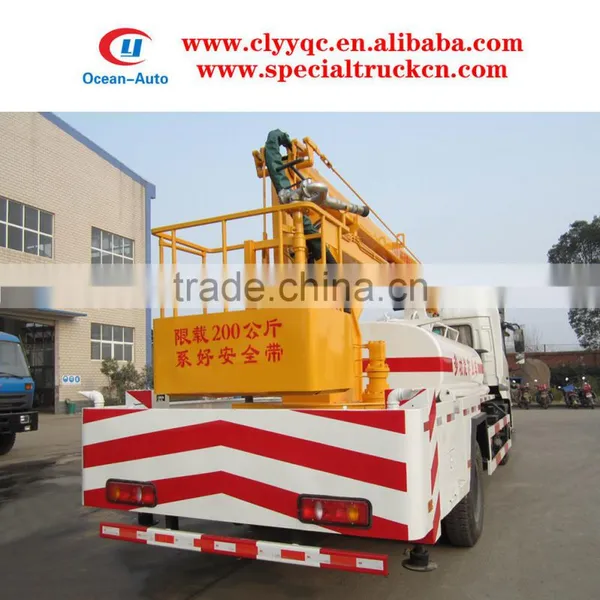

2.Product show
A. Delivery time: Normally with 20-25 days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
Tracy Tian
International Sale
Skype:chengli.truck
Mobile:+86-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
Hubei Chengli Ocean Auto Sales Co., Ltd
Capital of Special Purpose Vehicles , Suizhou City, Hubei Province, China
