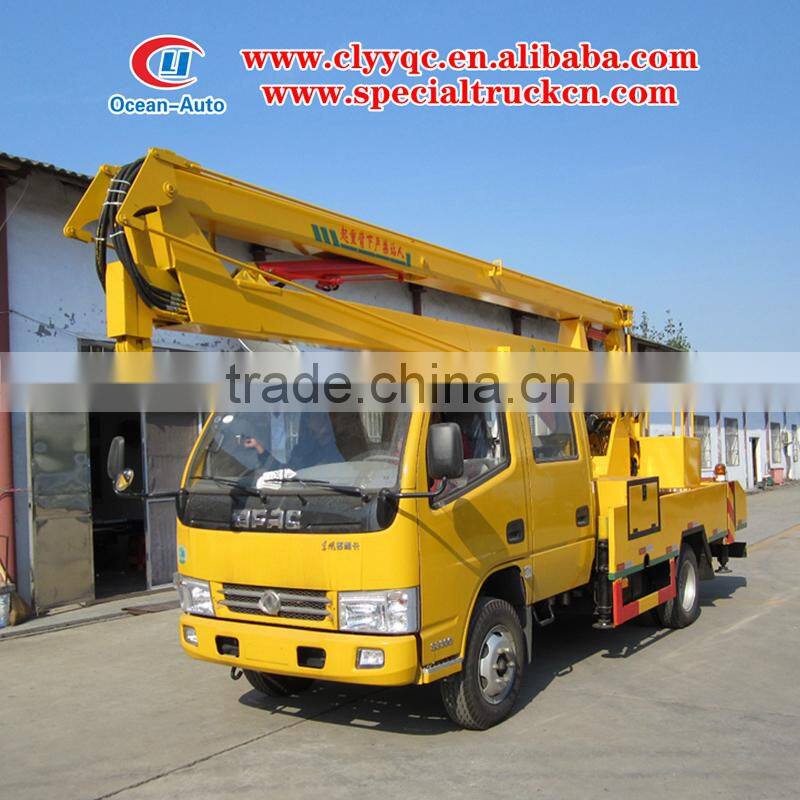

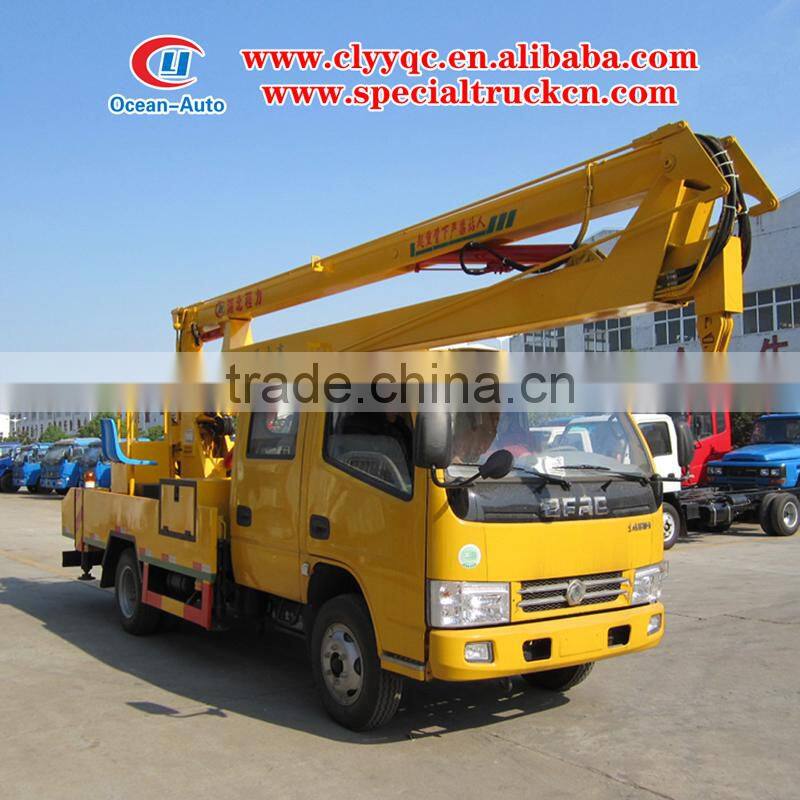

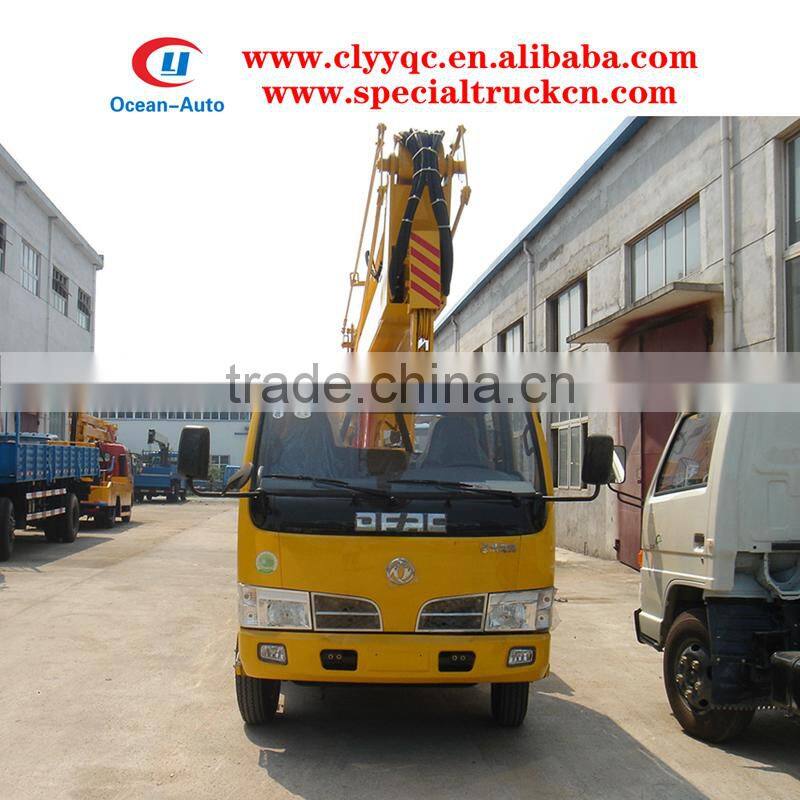

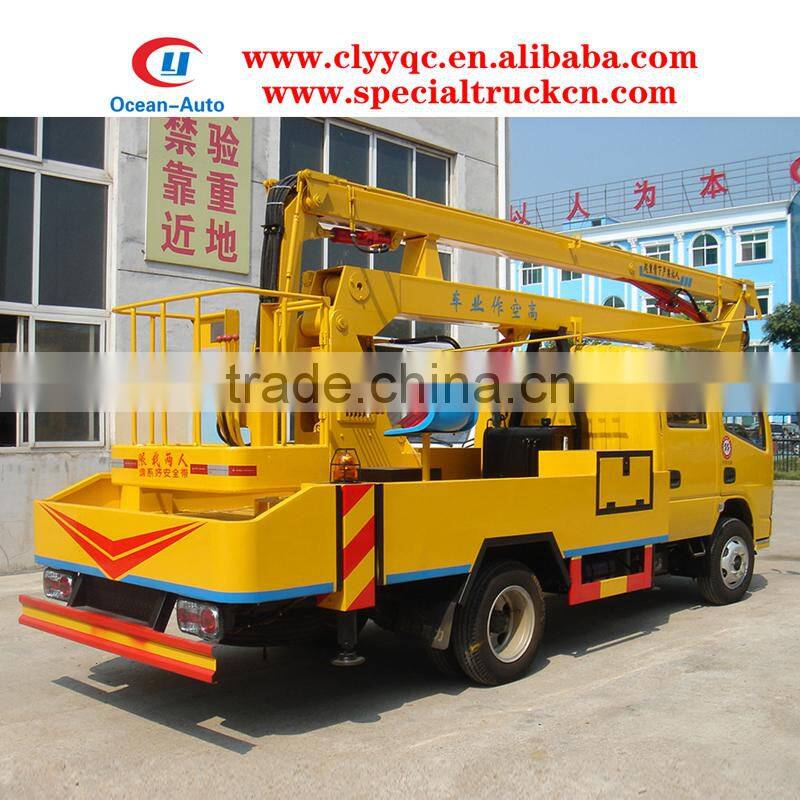

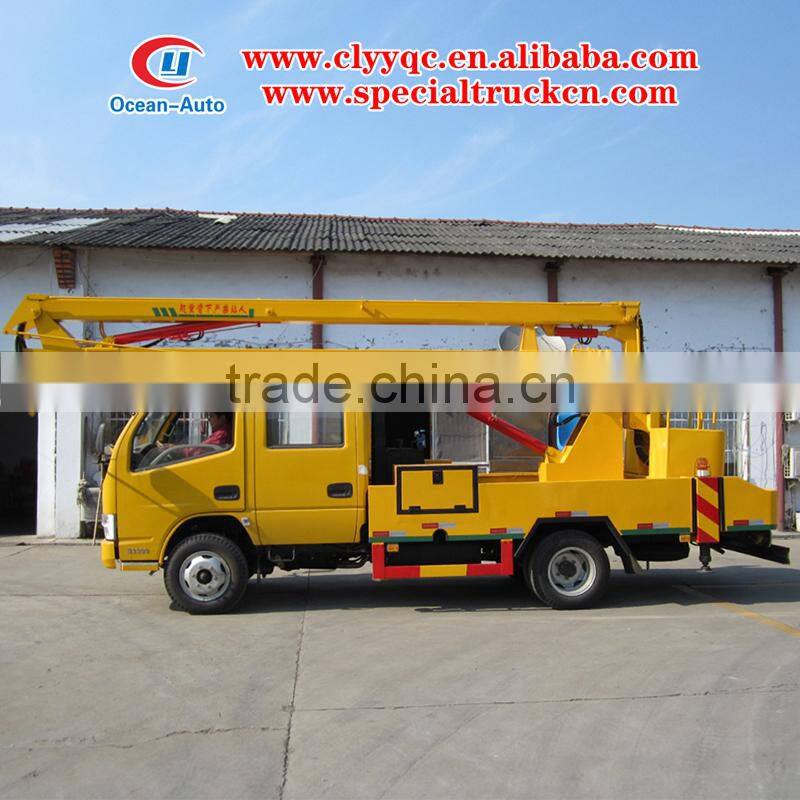

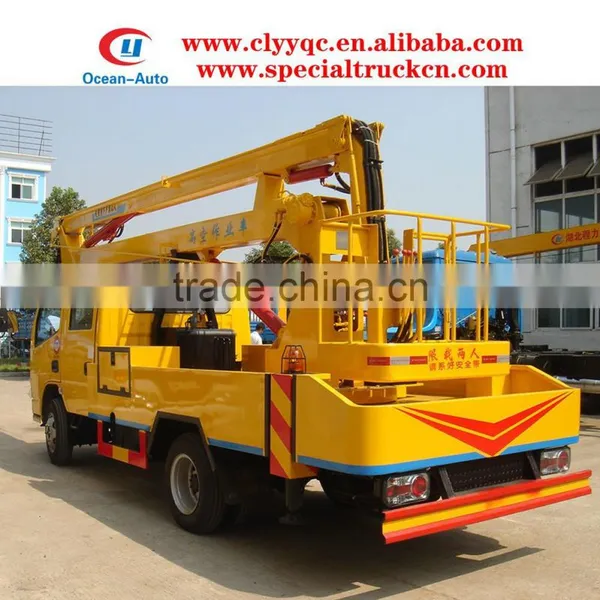

Dongfeng 16m Self-propelled Aerial Work Platform Truck For Sale
High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.
The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
1.Technical Specification
aerial platform truck
Item | Unit | Specification | |
Product name |
| CSC5050JGK3 high-altitude truck | |
Chassis model |
| EQ1050NJ20D3 | |
| Gross weight | kg | 5375 |
Curb weight | 5050 | ||
Overall dimension | mm | 7350×1980×3100 | |
wheelbase | 3300 | ||
Approach/departure angle | ° | 19/15 | |
Engine model |
| CY4102-C3F | |
Engine manufacturer |
| Dongfeng Chaoyang Diesel Co.,Ltd | |
Transmission |
| 5 gears | |
Cabin |
| Double cab, air conditioning can be equiped if customer requires. | |
Emission standard |
| Euro III | |
Displacement / Power | ml/kw | 3856 / 70 | |
Tire specification / Number | pcs | 7.00-16 / 6 | |
Max speed | km/h | 95 | |
Max working height | m | 16 | |
Rated platform load | kg | 200 | |
Rated manned platform | man | 2 | |
Slewing angle(Left,Right) | ° | 360 | |
Outrigger type / Q’ty | pcs | H-type, 4 pcs | |
Remark | The whole truck is operated through upper and lower hydraulic operation, equipped with hook. | ||
Various of Brand Chassis for High-altitude Operation Truck
Packing and shipping
(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.
(2)About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 20-25 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment.
6.Terms of Payment:
30% of the contract value should be paidin advance, remaining 70% payment shall be paid upon notification of completion and inspection certificate.
Customer visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
