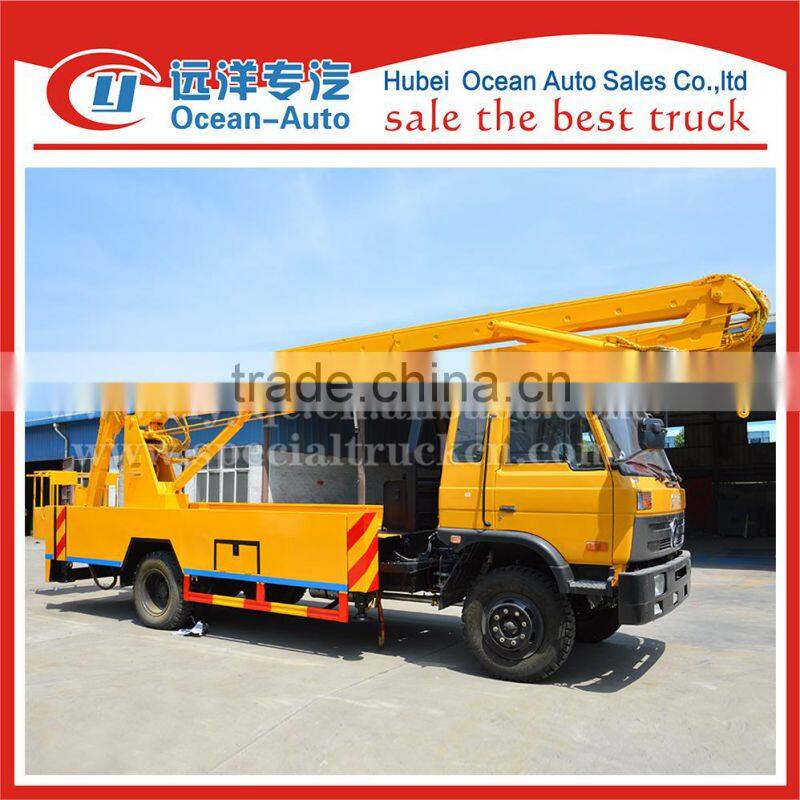

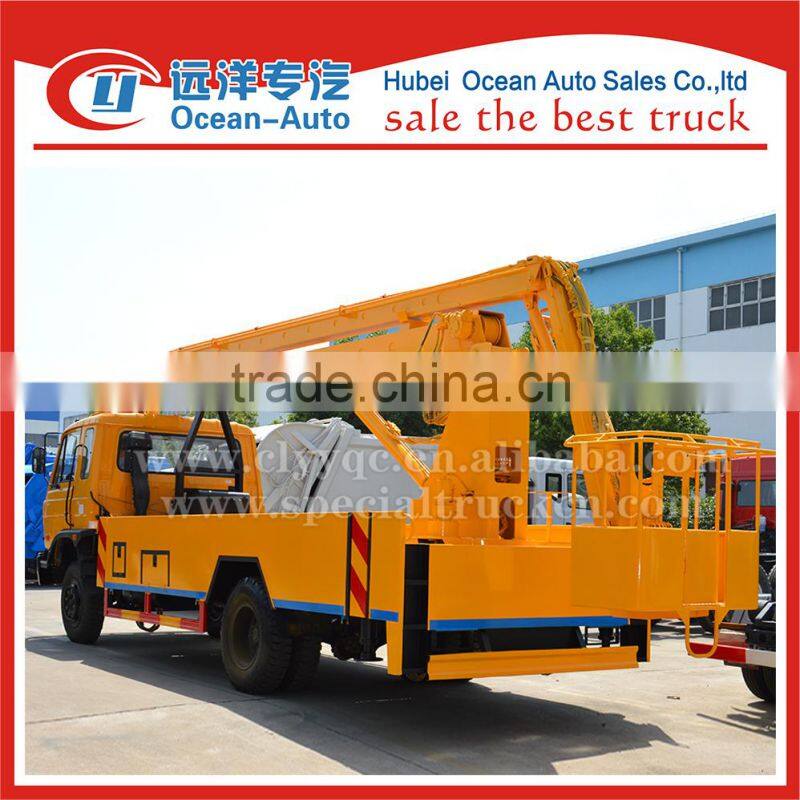

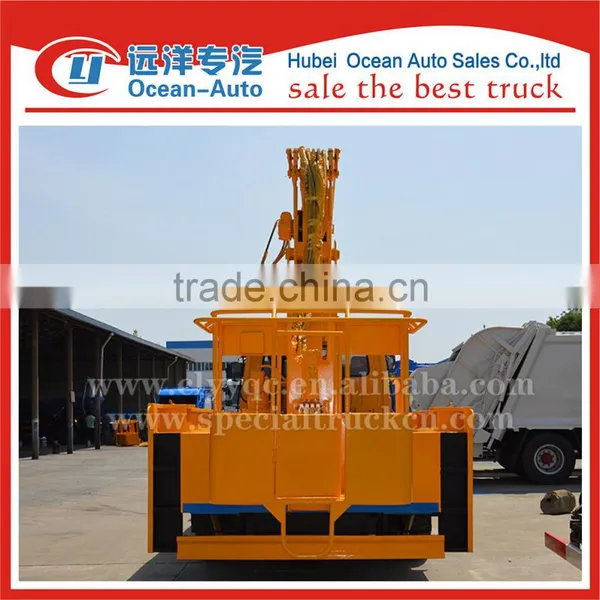

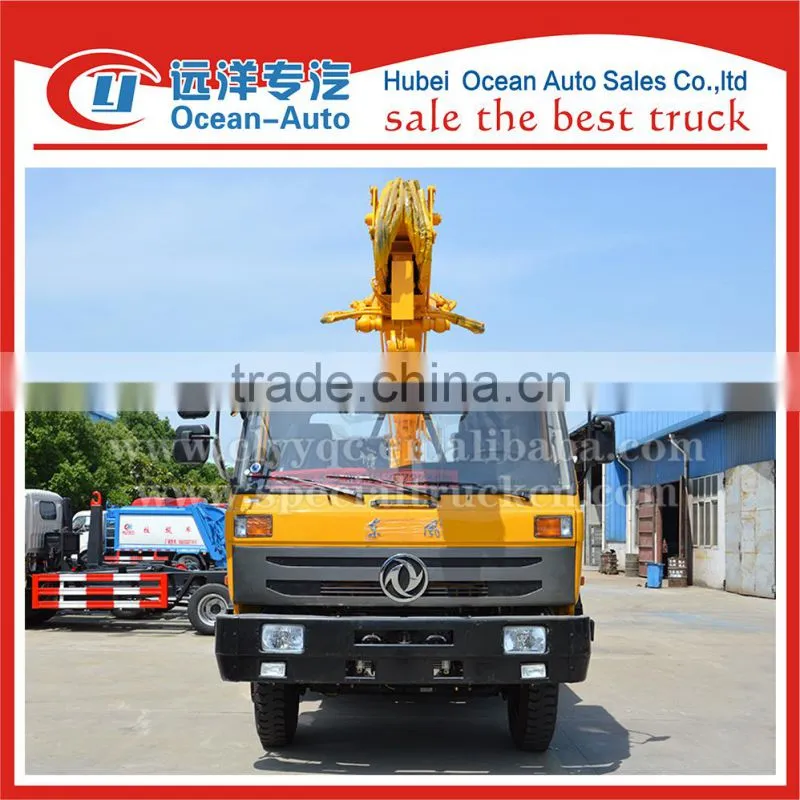

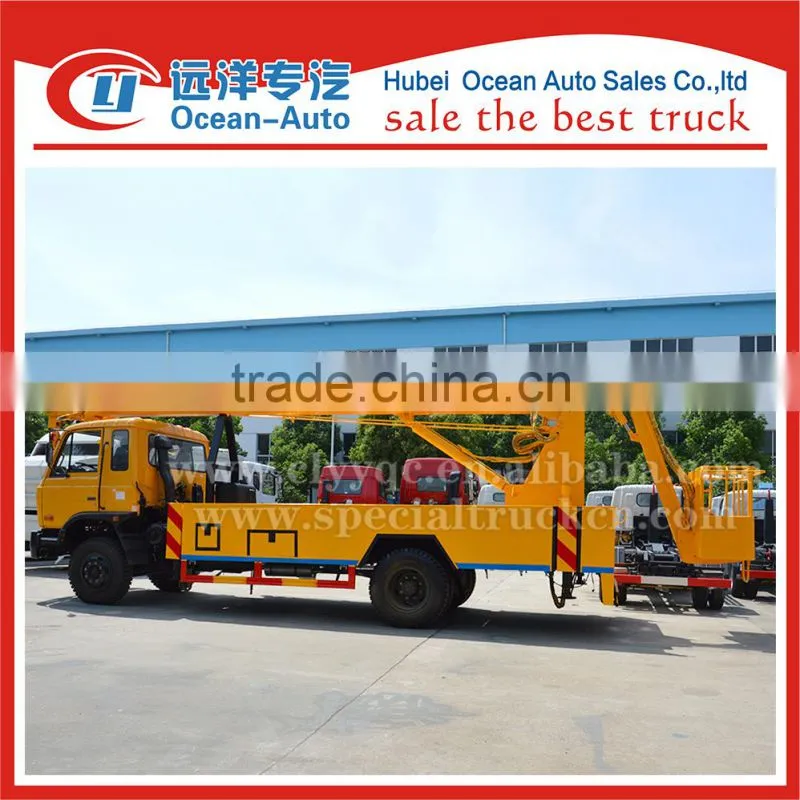

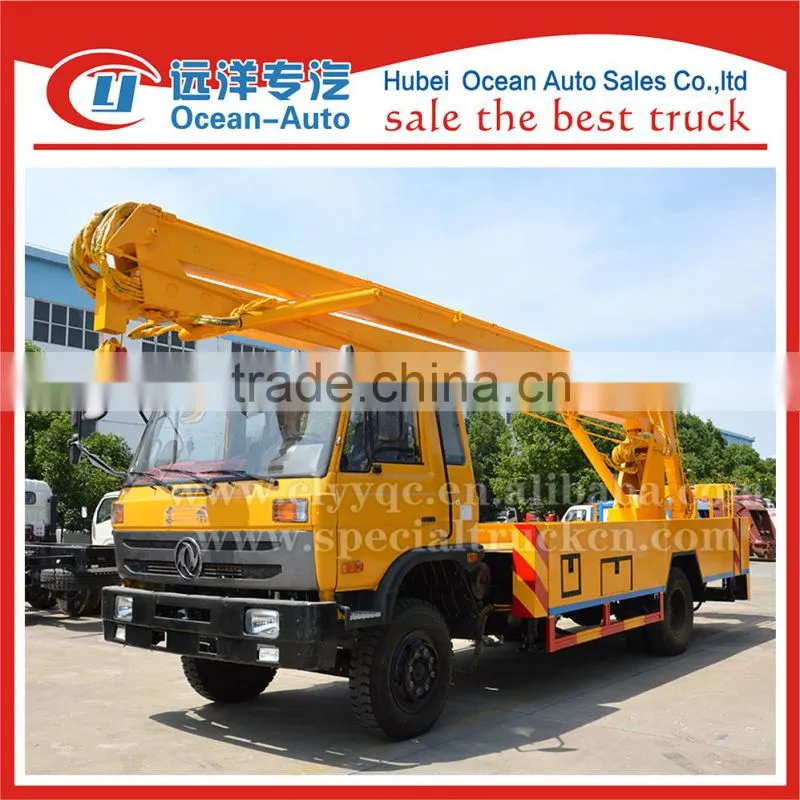

Dongfeng straight boom 20m high-altitude truck
The high-altitude truck is stable and reliable performance, mainly used for various conditions for aerial working, such as electrical line maintenance,high-altitude
cleaning,pruning trees and so on. This series product adopt well-known Chinese
famous brand chassis, with flat double cab that more passenger can be allowed.
Our company passed ISO9001-2000 quality system, our products all passed 3C certificate, it’s well-known product.
1.Technical Specification
Item | Unit | Specification | |
Product name |
| CLW5100JGKZT4 high-altitude truck | |
Chassis model |
| EQ1128GLJ1 | |
| Gross weight | kg | 10450 |
Curb weight | 10255 | ||
Overall dimension | mm | 9600×2480×3620 | |
wheelbase | 4700 | ||
Approach/departure angle | ° | 30/11 | |
Engine model |
| ISB170 40 | |
Engine manufacturer |
| Dongfeng Engine Co., Ltd | |
Transmission |
| 6 gears | |
Cabin |
| The cab can flip forward, with sleeper, air conditioning can be equiped if customer requires. | |
Emission standard |
| Euro IV | |
Displacement / Power | ml/kw | 5900 / 125 | |
Tire specification / Number | pcs | 9.00-20 16PR / 6 | |
Max speed | km/h | 90 | |
Max working height | m | 20 | |
Rated platform load | kg | 200 | |
Rated manned platform | man | 2 | |
Slewing angle(Left,Right) | ° | 360 | |
Outrigger type / Q’ty | pcs | H-type, 4 pcs | |
Remark | The whole truck is operated through upper and lower hydraulic operation, equipped with hook. | ||
Various of Chassis Brand for High Working Truck
(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.
(2) About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 20-25 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment.
6.Terms of Payment:
30% of the contract value should be paidin advance, remaining 70% payment shall be paid upon notification of completion and inspection certificate.
Customer Visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
Tracy Tian
International Sale
Skype:chengli.truck
Mobile:+86-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
Hubei Chengli Ocean Auto Sales Co., Ltd
Capital of Special Purpose Vehicles, Suizhou City, Hubei Province, China
Welcome to visit our factory!
