Dongfeng kingrun container removable garbage truck for sale
1.factory direct sale
2.Certificate ISO9001,3C
3.New design
Specifications:
Main specifications | |||||||||
Product model,name |
CLW5120ZKX3 Garbage Truck With Removable Box |
||||||||
Gross weight(Kg) |
12490 |
Driving type |
4×2 |
||||||
Payload (Kg) |
6800 |
Overall dimension (mm) |
7300×2470×2900 |
||||||
Curb weight(Kg) |
5495 |
cab seats (man) |
3 |
||||||
Approach/departure angle (°) |
20/6 |
Front/rear hang(mm) |
1430/1370 |
||||||
Axle No. |
2 |
Wheelbase (mm) |
4500 |
||||||
Axle load(Kg) |
4280/8210 |
Max speed(Km/h) |
90 |
||||||
Chassis specifications | |||||||||
Chassis model |
DFL1120B2 |
Manufacture |
Dongfeng Motor company |
||||||
Brand name |
Dongfeng |
Overall dimension (mm) |
7490×2370×2760 |
||||||
Tire specification |
9.00-20 |
Tires No. |
6+1 |
||||||
Steel spring number |
7/9+6,8/10+8 |
Front track(mm) |
1880 |
||||||
Fuel type |
Diesel |
Rear track(mm) |
1800 |
||||||
Emission standard |
Euro III |
Gear box |
6 forward |
||||||
Cab |
D530 one row and half flat cab, electric window lifter, central lock actuator, channel dashboard, with air conditioning. |
||||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
B170 33 |
Dongfeng Motor Co.,ltd |
5900 |
125 |
||||||
Performance | |||||||||
Body capacity(m³) |
10 |
Body material |
Q235 carbon steel |
||||||
Discharge Method |
Rear dump |
Operation control system |
Manual + electric |
||||||
Characteristic | |||||||||
|
1,Detachable Container Garbage Truck also called pull arm garbage truck ; 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; 3,The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; 4,The truck can use with several refuse hoppers, one truck can maintain multiple garbage collection point operation, high efficiency. | |||||||||

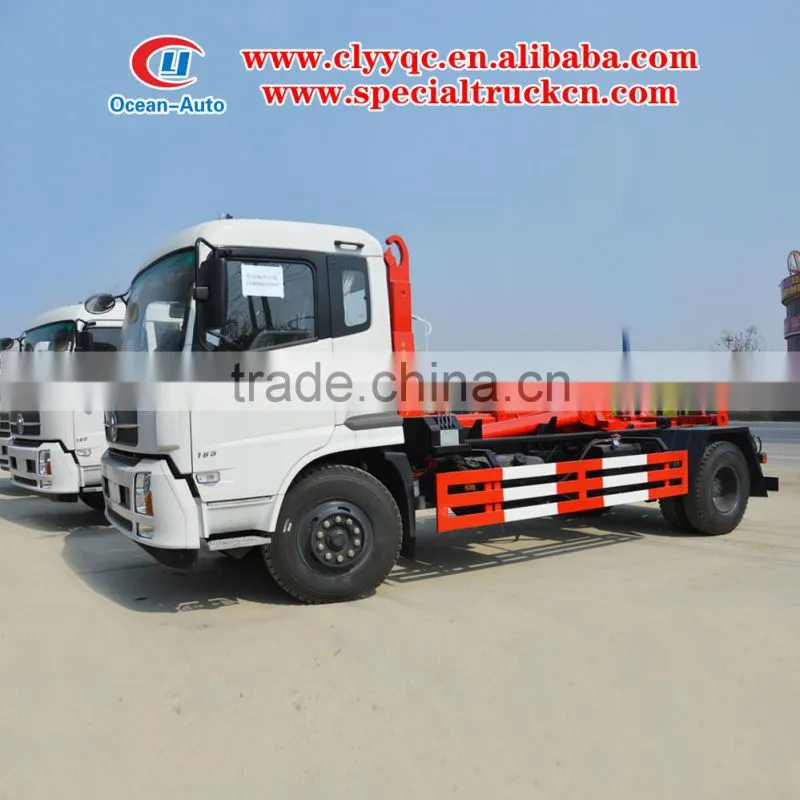

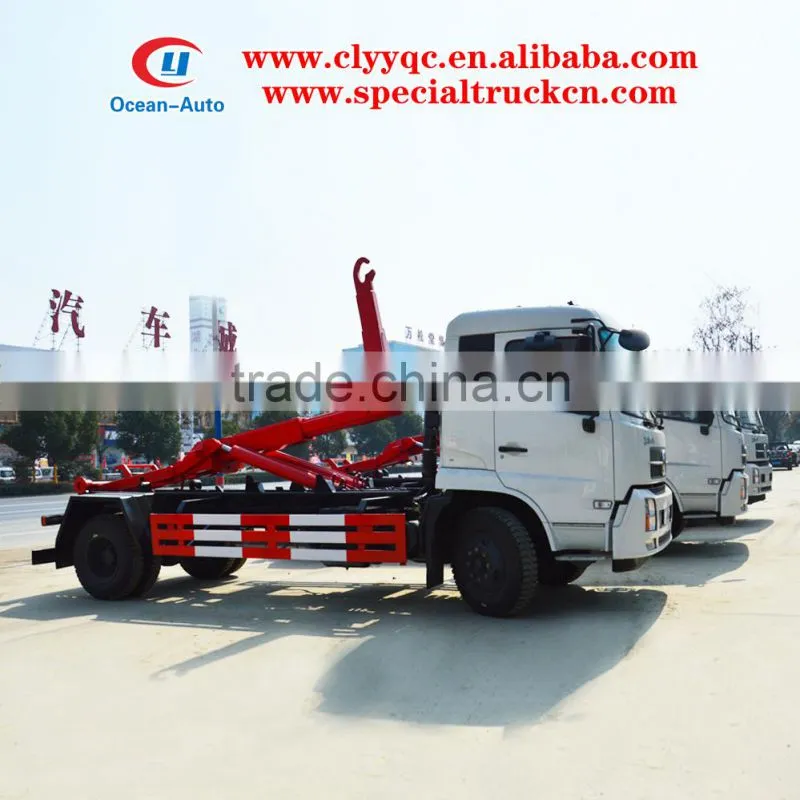

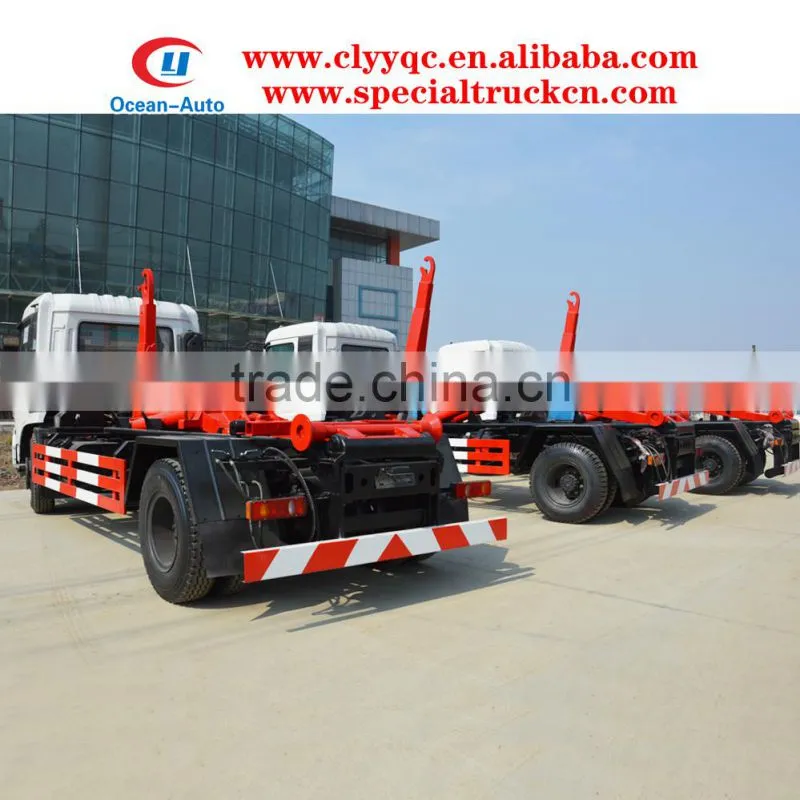

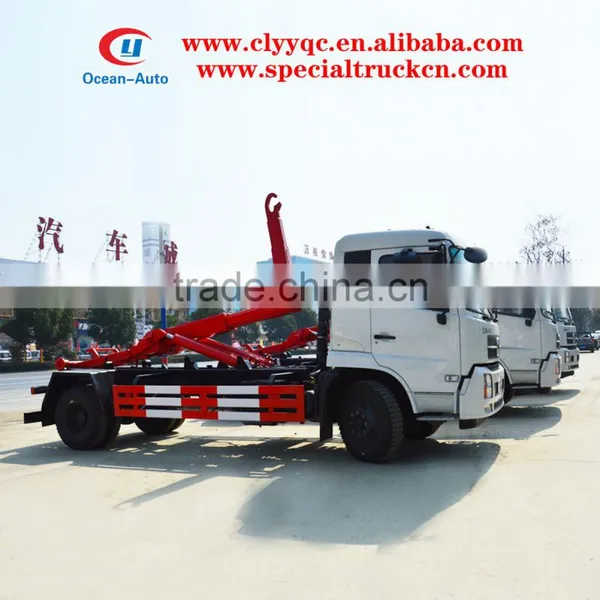

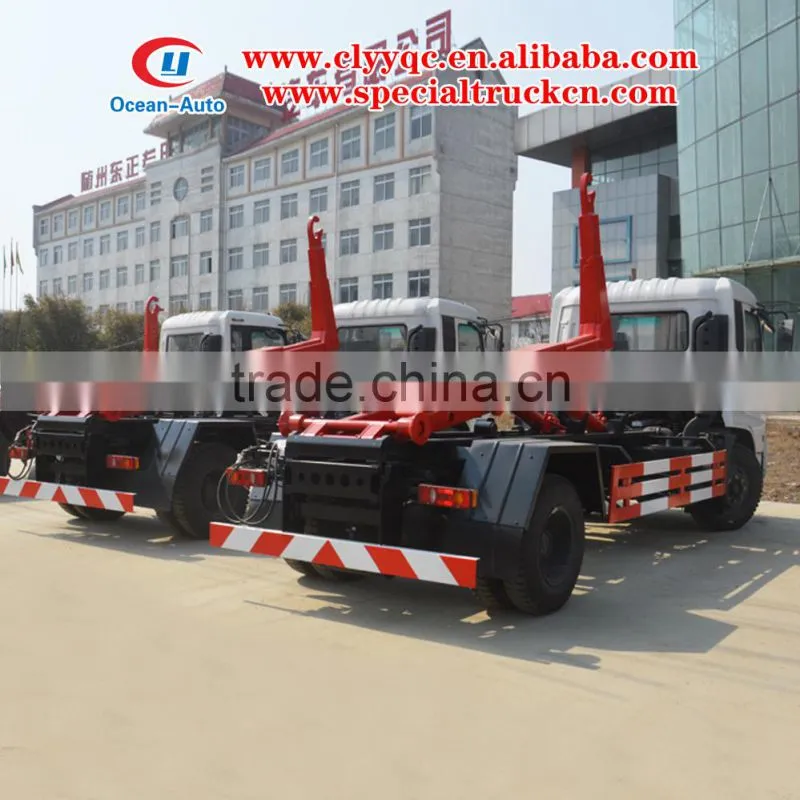

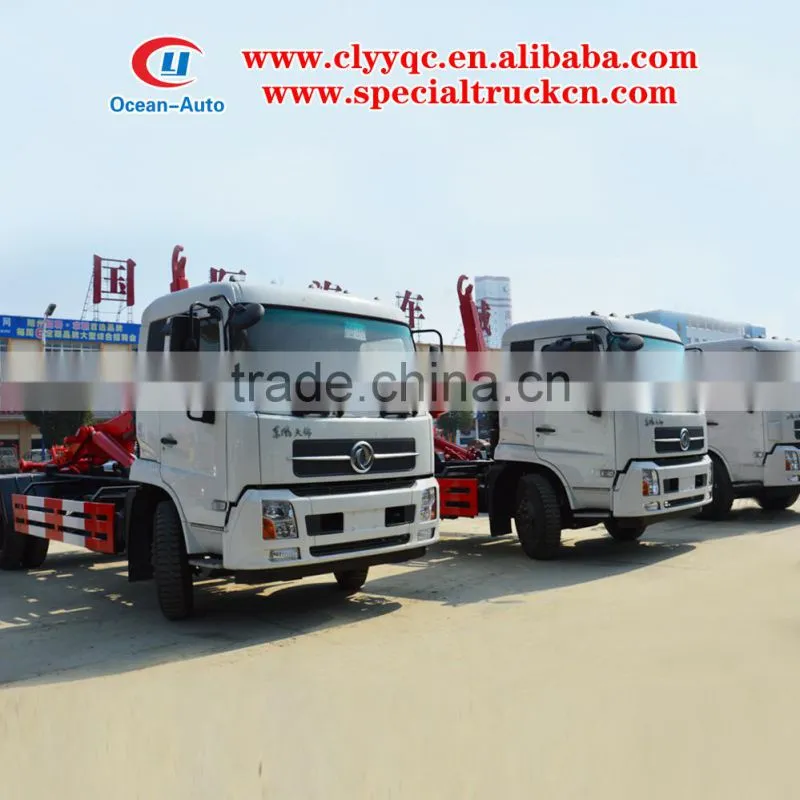

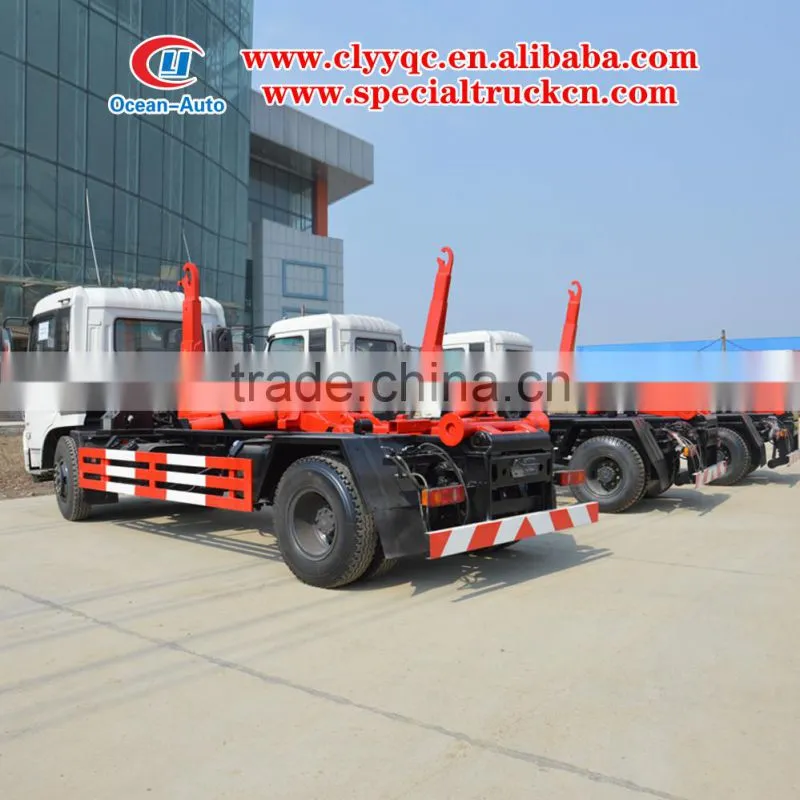

Product pictures:

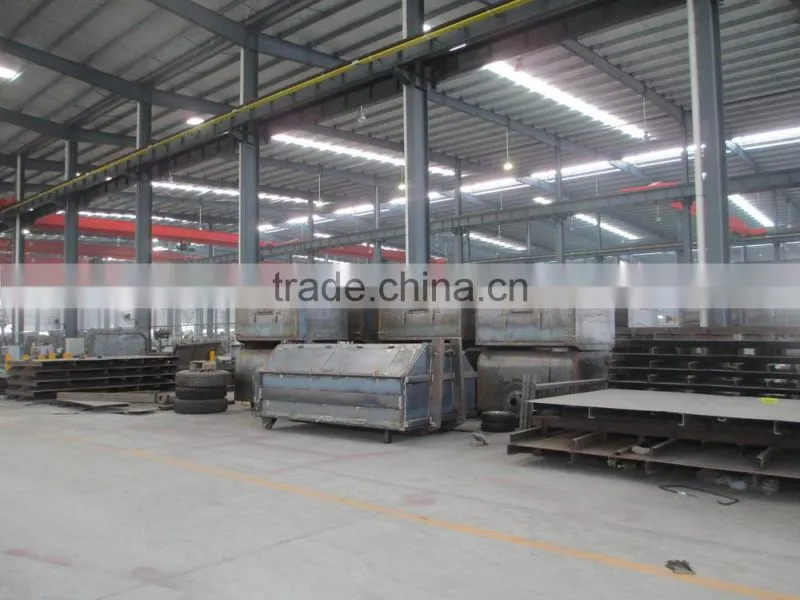

Pictures About our factory:
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
