Specifications
DFAC 4*2 small sealed rubbish truck for saleCertificate ISO9001,3C
Capacity 6cbm
carbon steel material
dump function
DFAC 4*2 small sealed rubbish truck for sale
Certificate ISO9001,3C
Capacity 6cbm
carbon steel material
dump function

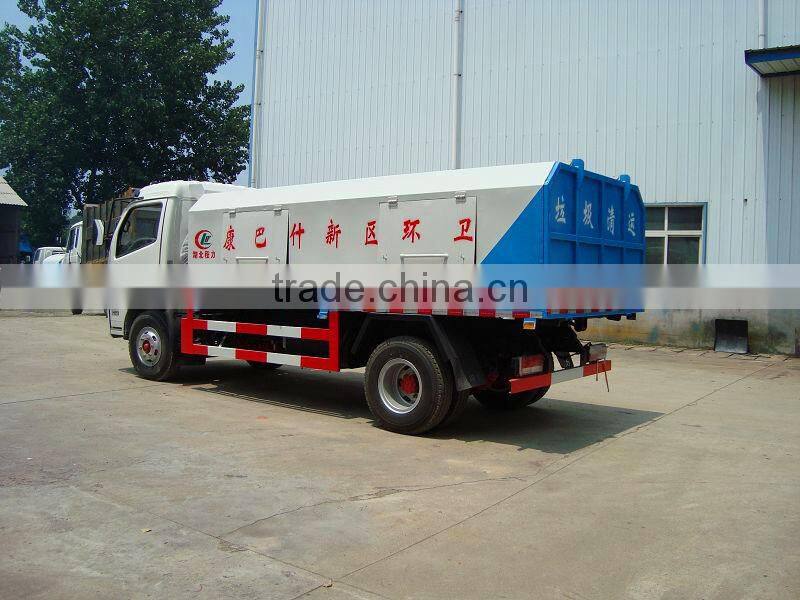

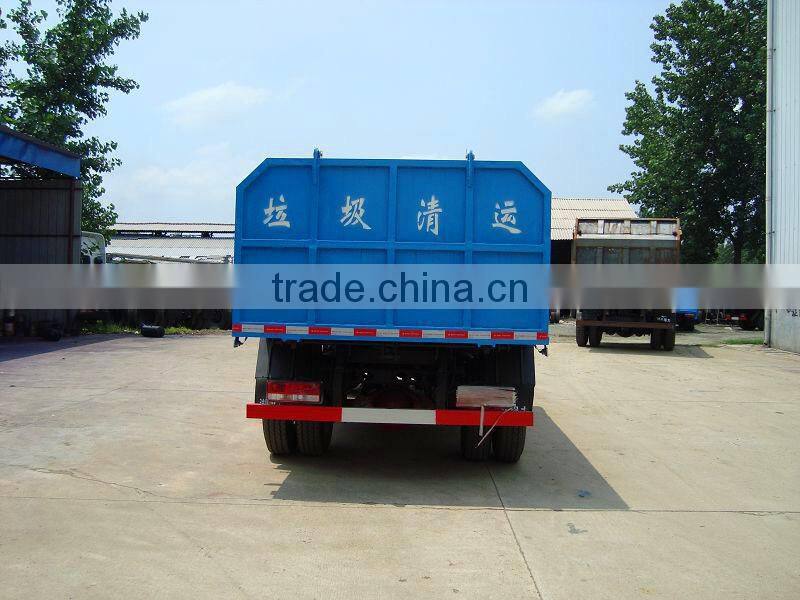

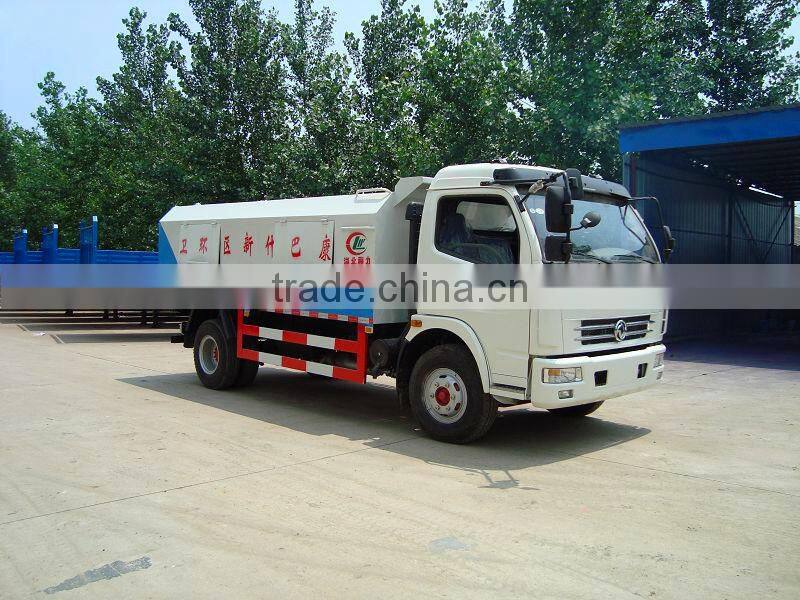

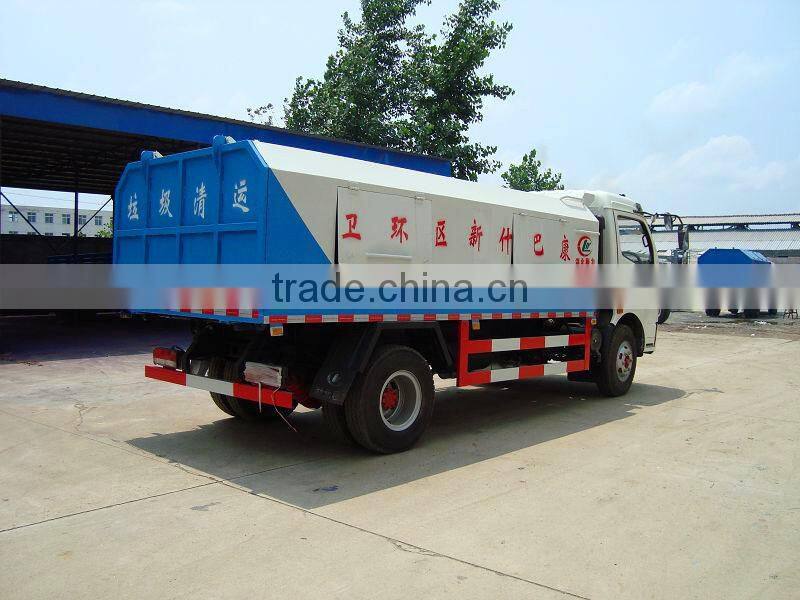

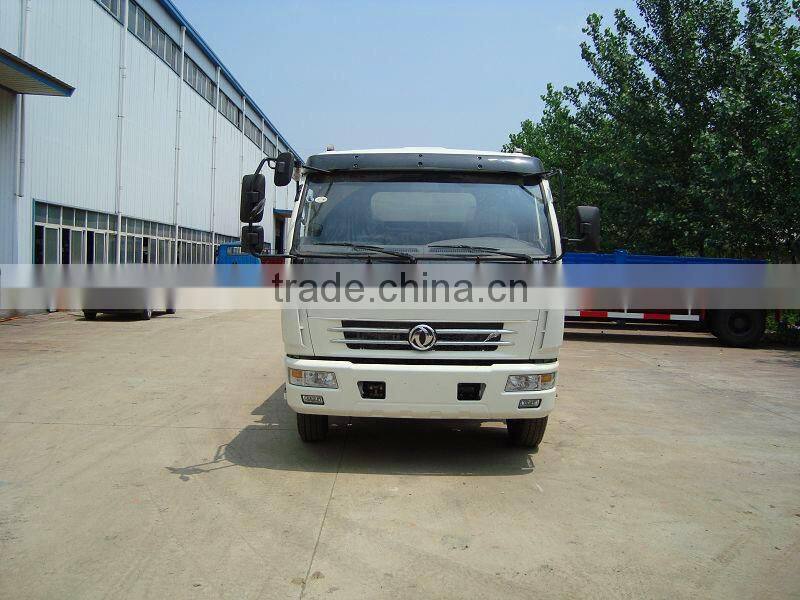

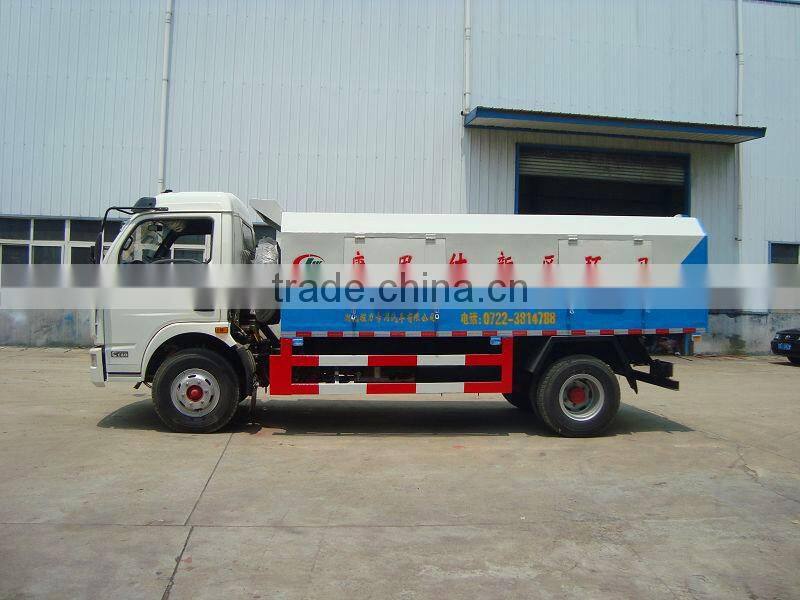

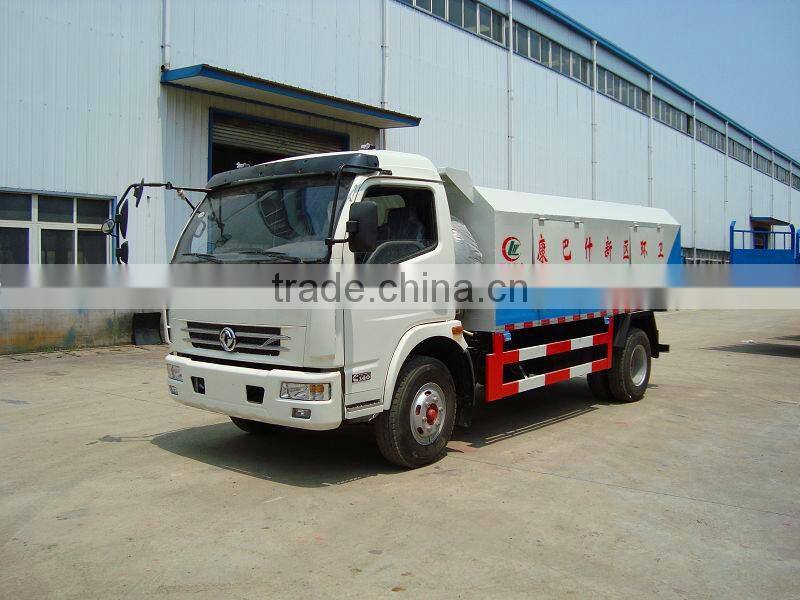

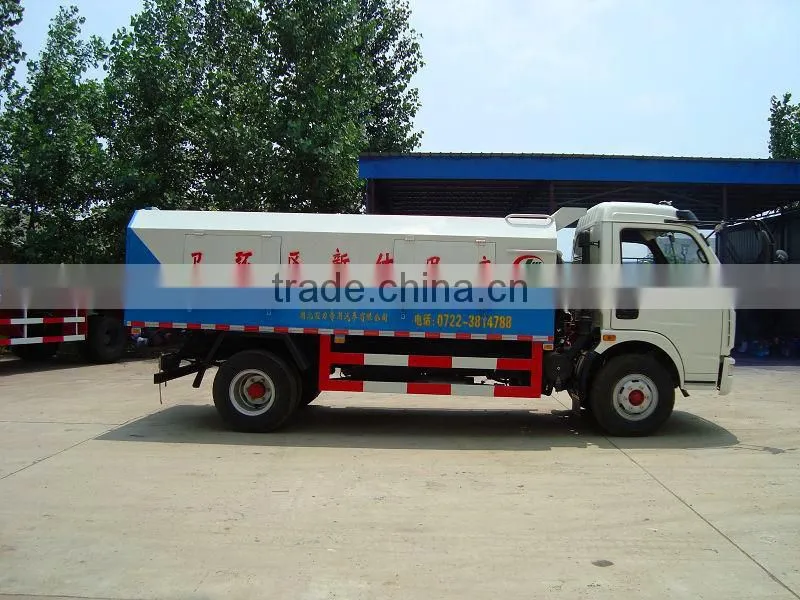

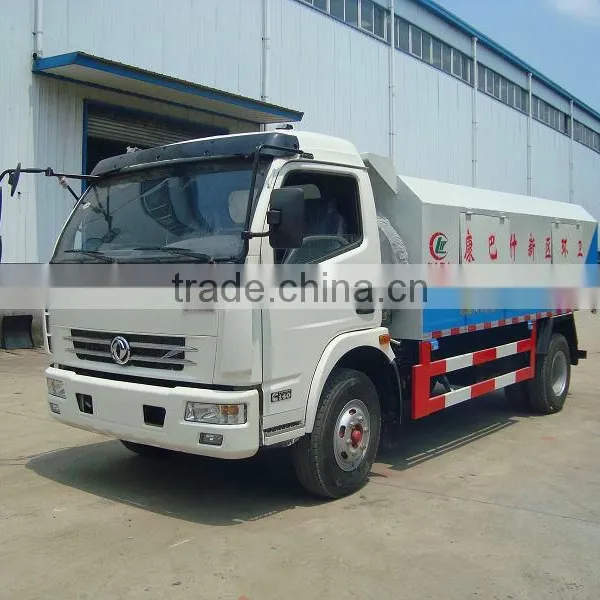

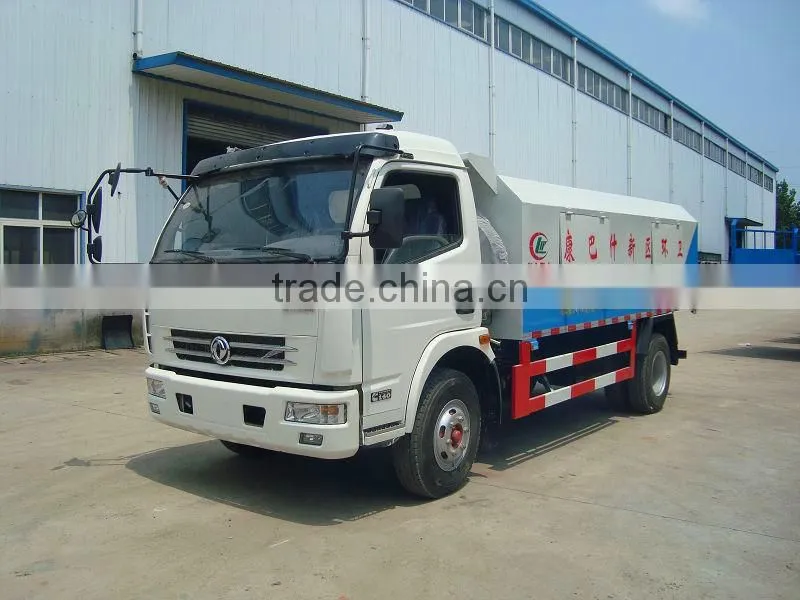

Product image:
Technical specification:
Main specifications | |||||||||
Product model,name |
CSC5070ZLJ3 Sealed Dump Garbage Truck |
||||||||
Gross weight(Kg) |
7490 |
Driving type |
4*2 |
||||||
Payload (Kg) |
2500 |
Overall dimension (mm) |
6695*2300*2350 |
||||||
Curb weight(Kg) |
4795 |
cab seats (man) |
2 |
||||||
Approach/departure angle (°) |
20/17 |
Front/rear hang(mm) |
1180/1715 |
||||||
Axle No. |
2 |
Wheelbase (mm) |
3800 |
||||||
Axle load(Kg) |
3200/4290 |
Max speed(Km/h) |
95 |
||||||
Chassis specifications | |||||||||
Chassis model |
EQ1070TJ9AD3 |
Manufacture |
Dongfeng chaoyang |
||||||
Brand name |
DFAC |
Overall dimension (mm) |
6695*2285*2350 |
||||||
Tire specification |
7.50R16 |
Tires No. |
6+1 |
||||||
Steel spring number |
11/9+7,8/10+7 |
Front track(mm) |
1835,1750 |
||||||
Type of fuel |
Diesel |
Rear track(mm) |
1640,1586 |
||||||
Emission standard |
EURO 3 |
Gear box |
5 forward |
||||||
Cab |
|
||||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
CY4102-E3C |
dognfeng chaoyang |
3856 |
91 |
||||||
Performance | |||||||||
The bin capacity(m³) |
4 |
The bin size(mm) |
|
||||||
Bin material |
carbon steel or stainless steel |
Discharge Method |
Rear dump |
||||||
Main Characteristic | |||||||||
|
1,Full hermetical and high strength bin box with good corrosion resistance and environmental protection; 2,The doors open on both side of the bin box which makes it very convenient for garbage collection; 3,With dump function and hydraulic operation, very easy to dump the garbage; 4,Mainly used for cities, streets,schools and other garbage collection points, it is new sanitation truck which can avoid secondary pollution. | |||||||||
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China.
