Specifications
DFAC mini sealed dump refuse truck for saleFactory direct sale,best price
Certificate ISO9001,3C
Capacity4m3
Good used
DFAC mini sealed dump refuse truck for sale
Factory direct sale,best price
Certificate ISO9001,3C
Capacity4m3
Good used

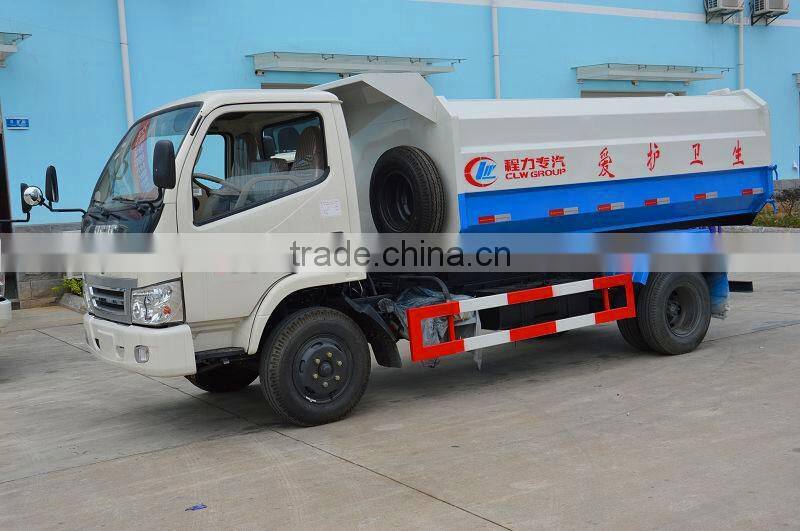

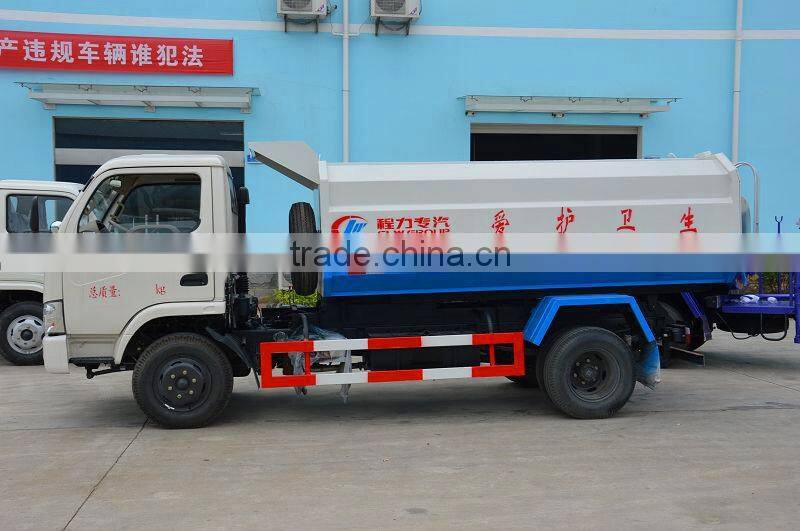

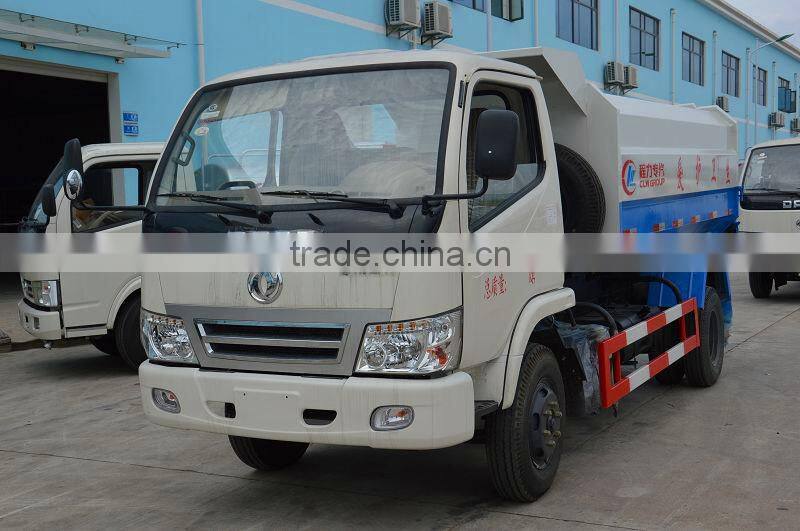

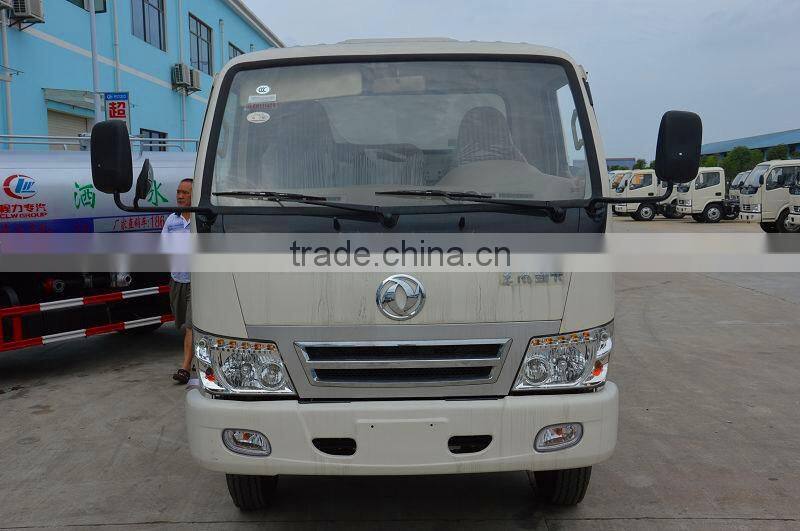

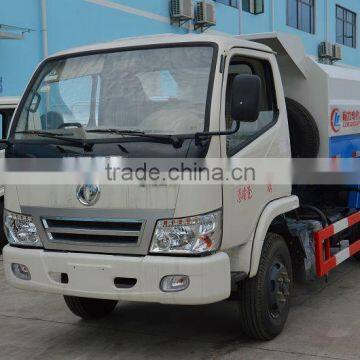

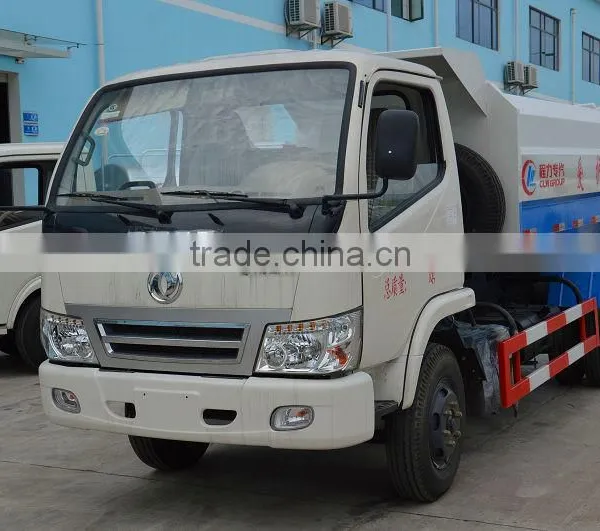

Product image:
Technical specification:
Main specifications | |||||||||
Product model,name |
SLA5060ZLJE Sealed Dump Garbage Truck |
||||||||
Gross weight(Kg) |
6490 |
Driving type |
4*2 |
||||||
Payload (Kg) |
3160 |
Overall dimension (mm) |
5750*2000*2250 |
||||||
Curb weight(Kg) |
3200 |
cab seats (man) |
2 |
||||||
Approach/departure angle (°) |
19/13 |
Front/rear hang(mm) |
1032/1418 |
||||||
Axle No. |
2 |
Wheelbase (mm) |
3300 |
||||||
Axle load(Kg) |
2600/3890 |
Max speed(Km/h) |
95 |
||||||
Chassis specifications | |||||||||
Chassis model |
EQ1060TJ20D3 |
Manufacture |
Dongfeng chaoyang |
||||||
Brand name |
DFAC |
Overall dimension (mm) |
5820*1940*2080 |
||||||
Tire specification |
7.00-16 |
Tires No. |
6+1 |
||||||
Steel spring number |
8/9+5,6/8+4 |
Front track(mm) |
1506 |
||||||
Type of fuel |
Diesel |
Rear track(mm) |
1466 |
||||||
Emission standard |
EURO 3 |
Gear box |
5 forward |
||||||
Cab |
|
||||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
| CY4102-C3F | dognfeng chaoyang | 3856 | 70 | ||||||
Performance | |||||||||
The bin capacity(m³) |
4 |
The bin size(mm) |
|
||||||
Bin material |
carbon steel or stainless steel |
Discharge Method |
Rear dump |
||||||
Main Characteristic | |||||||||
|
1,Full hermetical and high strength bin box with good corrosion resistance and environmental protection; 2,The doors open on both side of the bin box which makes it very convenient for garbage collection; 3,With dump function and hydraulic operation, very easy to dump the garbage; 4Mainly used for cities, streets,schools and other garbage collection points, it isnew sanitation truck which can avoid secondary pollution. | |||||||||
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China.
