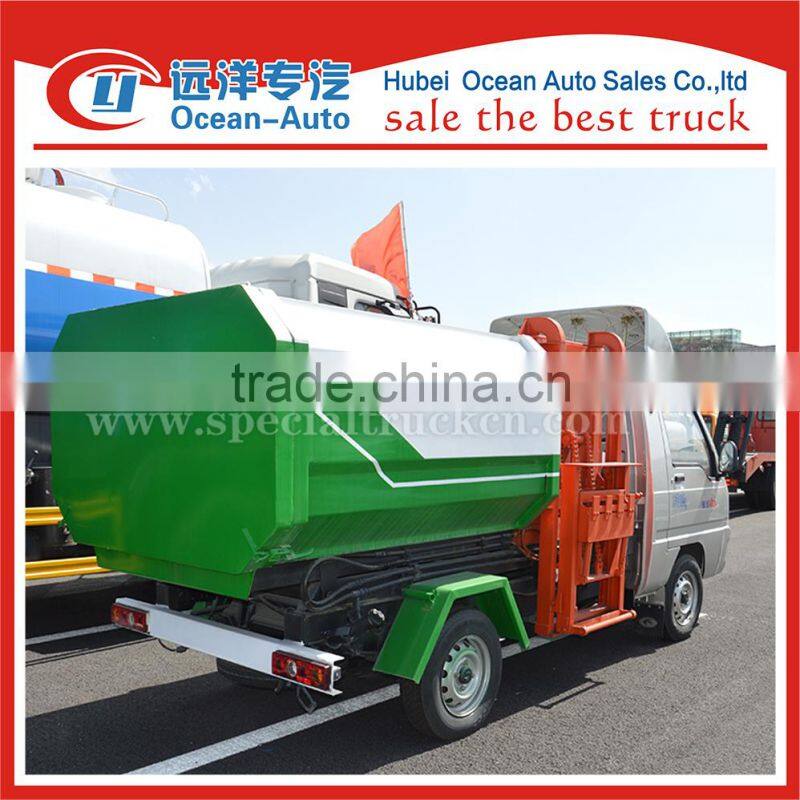

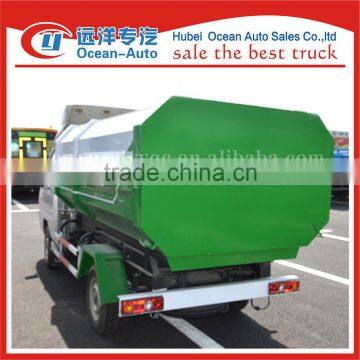

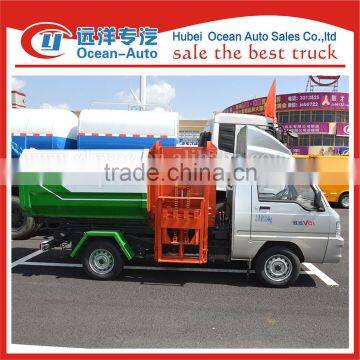

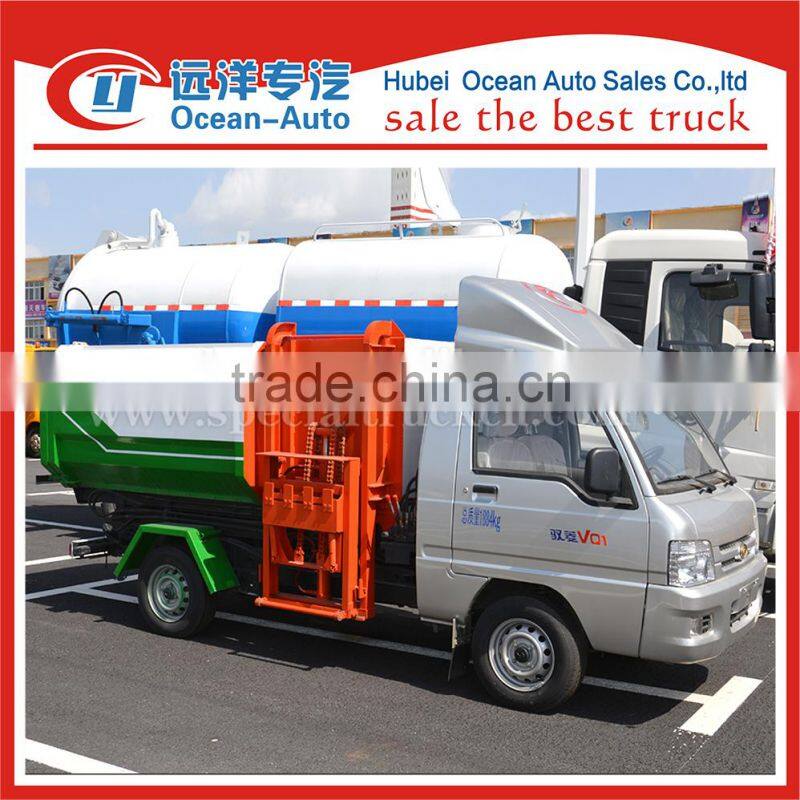

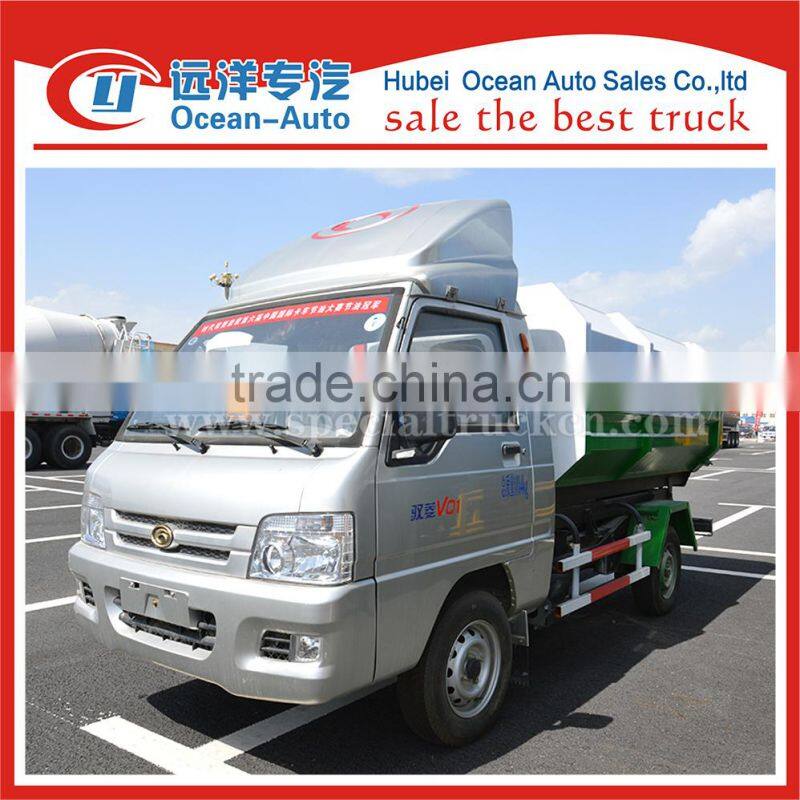

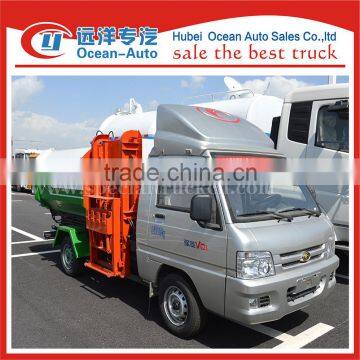

Cheap Price Original Factory Foton Mini Garbage Truck

Name: Cheap Price Original Factory Foton Mini Garbage Truck
Brand: foton
SKU: 140782332
Availability: InStock

US$ 8,500 - 9,800 MOQ: 1 Unit

Key Specifications

Condition:

New

Drive Wheel:

4x2

Type:

Roll Off

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port here in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Drive Wheel 4x2

Type Roll Off

Transmission Type Manual

Emission Standard Euro 4

Volume 1000 - 3000L

Fuel Type Petrol / Gasoline

Engine Capacity 1051

Size 4270x1520x2250

Gross Vehicle Weight 2620

Place of Origin Hubei, China

Brand Name foton

Model Number HLQ5031ZZZB

Certification CCC ISO9001-2008

After-sales Service Provided Engineers available to service machinery overseas

Cheap price original factory foton mini garbage truck

2370mm wheelbase

2.5cbm capacity

gosaline engine, 45kw engine power

cheap price and good quality

Specifications of the trucks:

Main specifications
Product model,name		HLQ5031ZZZB Hydraulic Lifter Garbage truck
Gross weight(Kg)		2620		Driving type			4x2
Payload (Kg)		750		Overall dimension (mm)			4270x1520x2250
Curb weight(Kg)		1740		Cab seats (man)			2
Approach/departure angle (°)		24/28		Front/rear hang(mm)			795/1105
Axle No.		2		Wheelbase (mm)			2370
Axle load(Kg)		1050/1570		Max speed(Km/h)			90
Chassis specifications
Chassis model	BJ1030V4JV2-X		Manufacture			Foton Motor co.,ltd
Brand name	FOTON		Overall dimension (mm)			4005x1475x1705
Tire specification	165R13LT		Tires No.			4
Steel spring number	-/5,-/6		Front track(mm)			1260
Fuel type	gasoline		Rear track(mm)			1260
Emission standard	Euro 4		Gear box			5 forward and 1 reverse
Cab	With sleeper, air conditioning is optional
Engine model	Engine manufacture				Displacement(ml)			Power(Kw)
LJ465Q-2AE	Liuzhou wuling liuji power co., LTD				1051			45
Performance
Body capacity(m3)	2.5 cbm
Main Characteristic
Hydraulic lifter garbage truck can be mechanized automatic loading and unloading garbage, it consists of sealed garbage box, hydraulic system and operating system, can work with dozens of dust bins which achieve one truck with multiple bins joint operation. The hydraulic lifting device can hang the dust bins up and down , one working cycle time is 50s. The sealed box is environmentally friendly and hygienic, can avoid secondary pollution.
