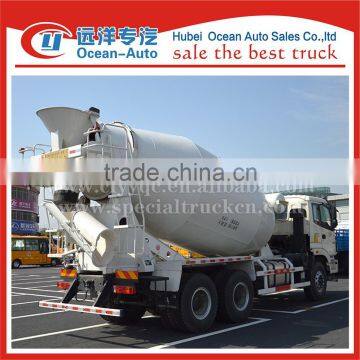

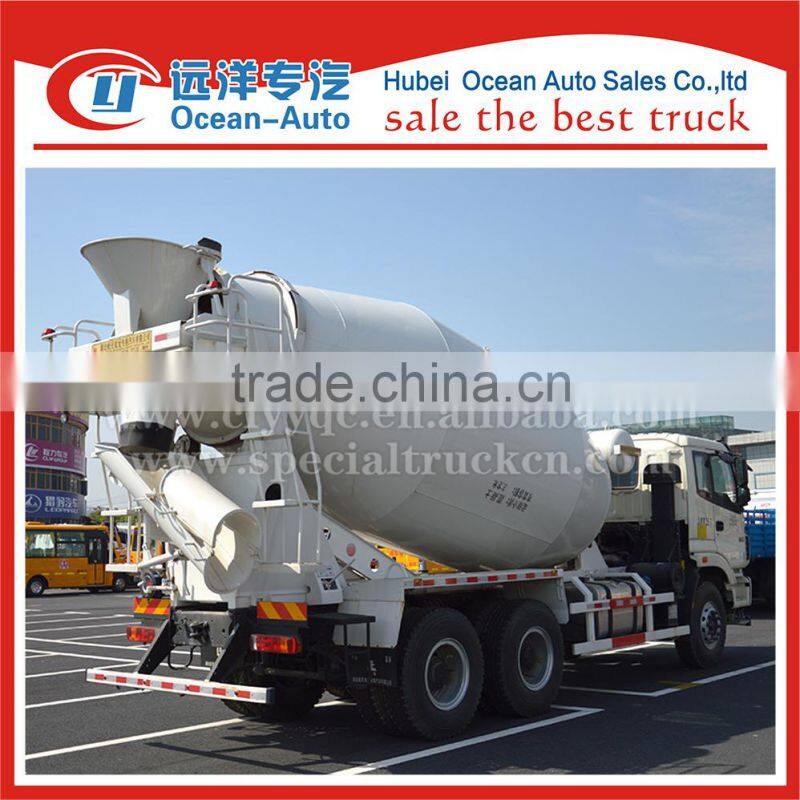

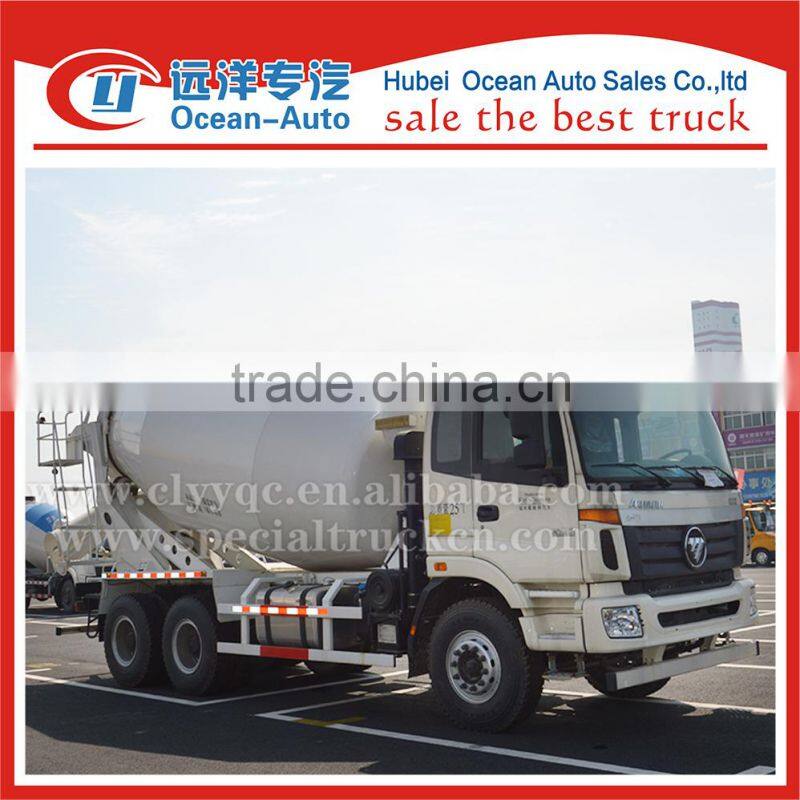

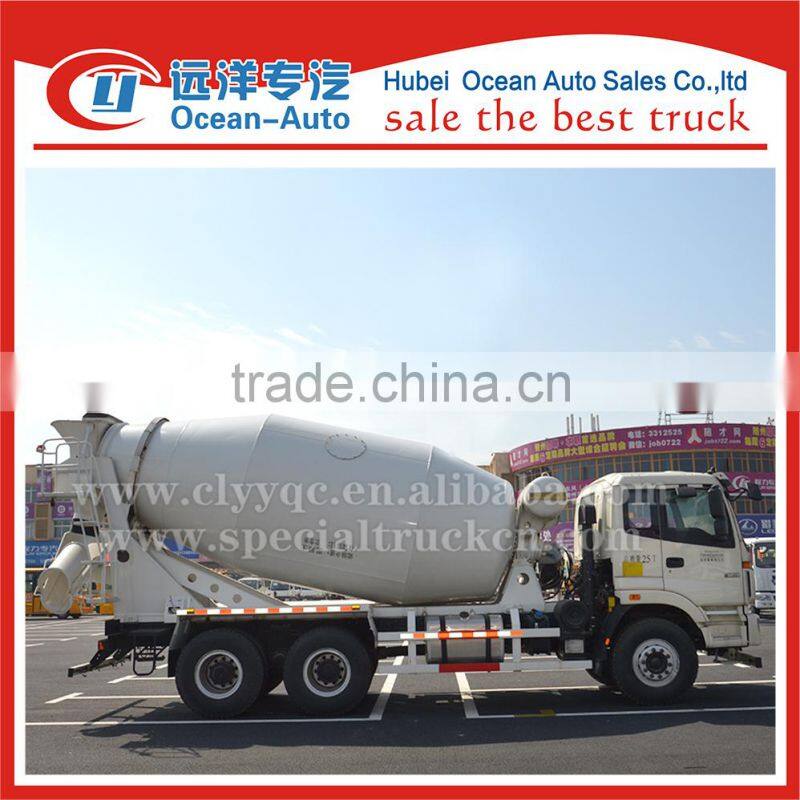

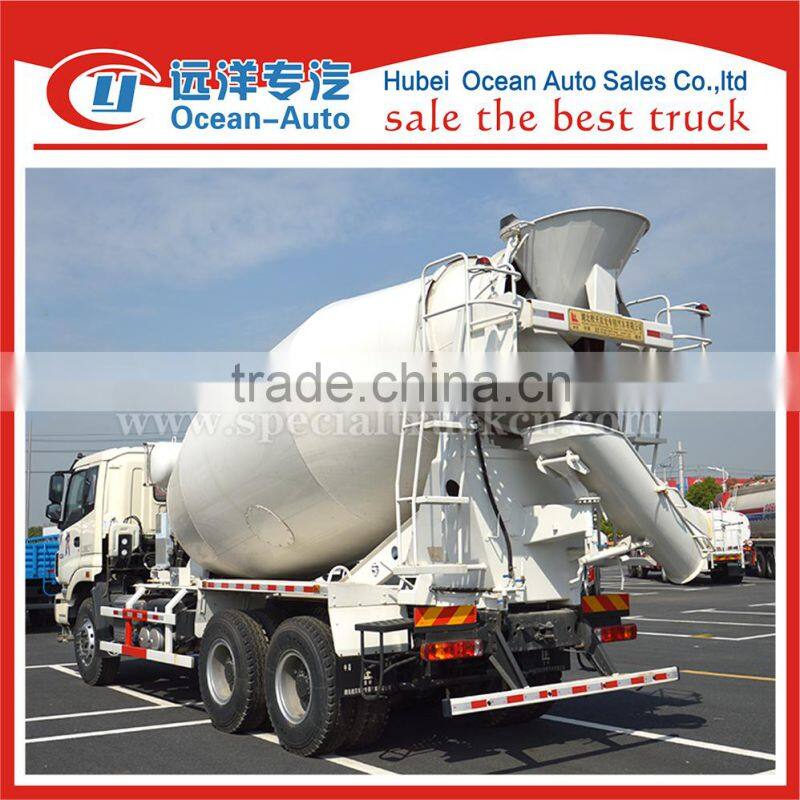

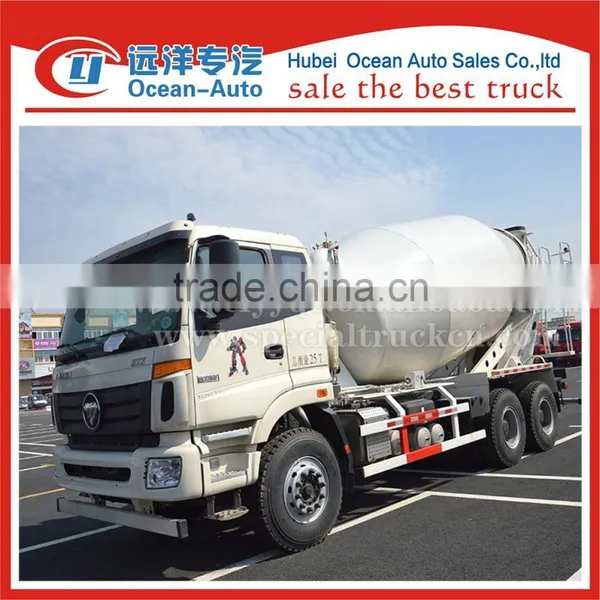

12m3 Concrete Truck Mixers Loader in Conceret Mixers

Name: 12m3 Concrete Truck Mixers Loader in Conceret Mixers
Brand: Foton Auman
SKU: 140782078
Availability: InStock

US$ 570,000 - 610,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

Foton Auman

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any ports available in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name Foton Auman

Model Number BJ5252GJB-5 Concrete mixer truck

Weight 25000

Dimension(L*W*H) 8930*2495*3790

Power(W) 250

Certification CCC and ISO9001

Warranty One year since you get the truck and under the normal operation

After-sales Service Provided Overseas service center available

12m3 concrete truck mixers loader in conceret mixers

1) Fashion and new design!

2) 9 years export experience!

3) Strong tanker body.

4) Good quality and best price!

5) We are factory!

Product Description

1, Technical Specifications of concrete mixer truck

Main specifications
Product model,name	BJ5252GJB-5 Concrete mixer truck
Gross weight(Kg)	25000		Drive type	6 x 4
Payload(Kg)	11070,11005		Overall demension(mm)	8930×2495×3790
Curb weight(Kg)	13800		Cab seats(man)	2,3
Approach/departure angle(°)	18/17		Front/rear hang(mm)	1510/2495
Number of axles	3		Wheelbase(mm)	4100+1350
Axle load(Kg)	7000/18000		Max speed(Km/h)	81
Chassis specifications
Chassis model	BJ5252GJB-5		Manufacture	Beijing Foton Daimler Automotive Co., Ltd.
Brand name	Auman		Overall dimension(mm)	8235×2495×2960
Tire specification	12.00R20		Tires No.	10
Steel spring number	9/12		Front track(mm)	2010
Fuel type	Diesel		Rear track(mm)	1847
Emission standard	Euro III		Transmission	9 forward gear
Cabin	Luxury interior and Instrument bar, with air conditioning and sleeper.
Engine model	Engine manufacutre	Displacement(ml)		Power(kw)
WP10.340E32	Weichai Power Co., Ltd.	9726		250

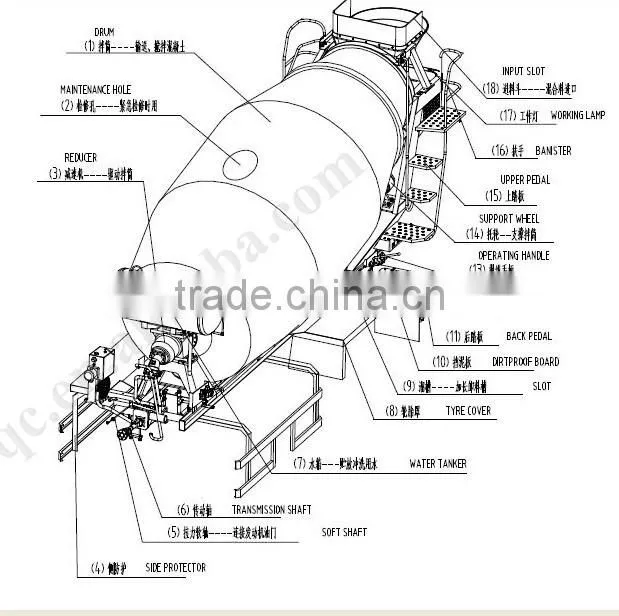

Concrete mixer truck performance
Tank volume(m³)	12	Material of tank		Q345
Pump	Import	Motor		Import
Reducer	Import	Surplus ratio		≤1.0%
Water tank volume(L)	350L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
