DongFeng 10CBM Diesel Concrete Mobile Mixer Truck

US$ 56,000 - 61,000 MOQ: 1 Unit

Key Specifications

Condition:

New, New

Place of Origin:

Hubei, China

Brand Name:

CLW

Hubei Ocean Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5250GJB

Weight 25000

Dimension(L*W*H) 9040*2500*3970mm

Power(W) 250kw

Certification ISO

Warranty 1

After-sales Service Provided Engineers available to service machinery overseas

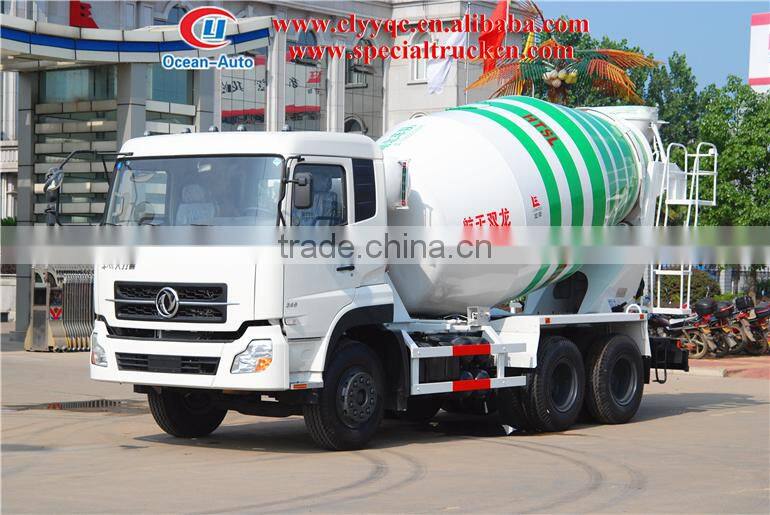

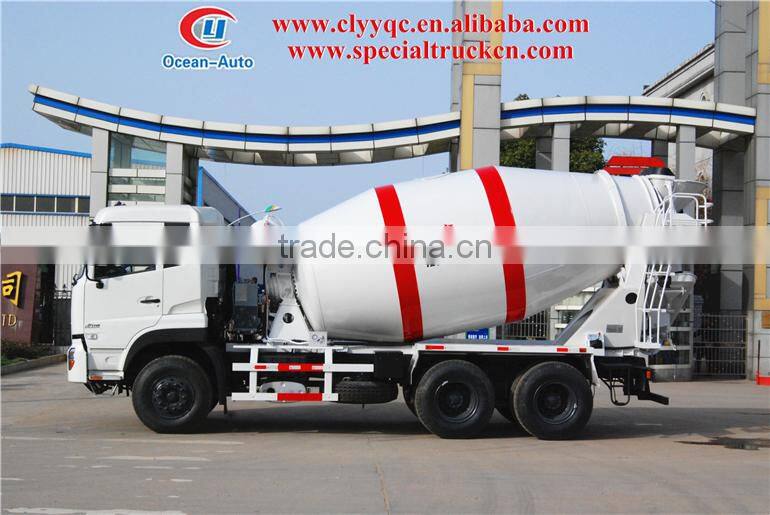

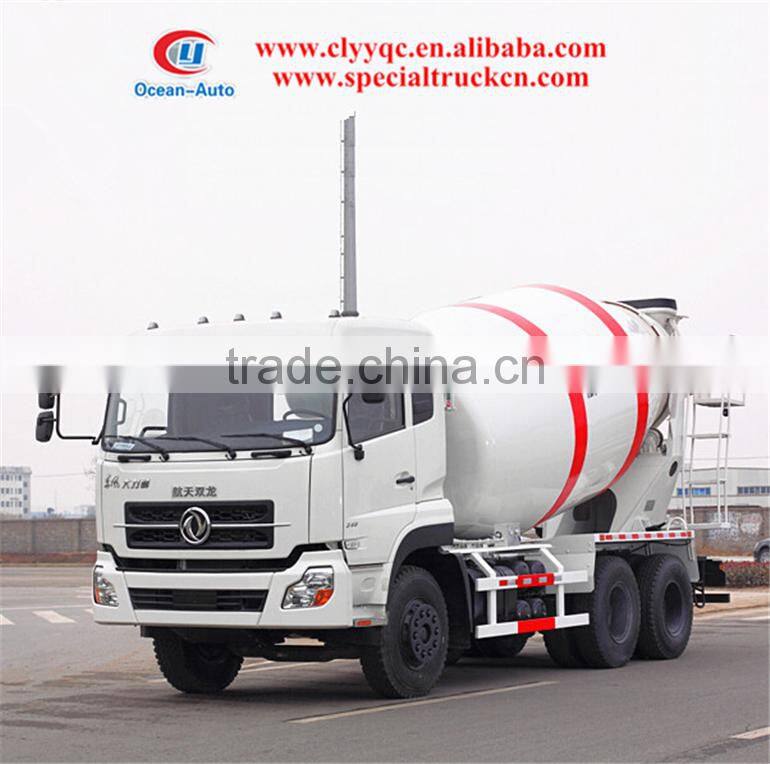

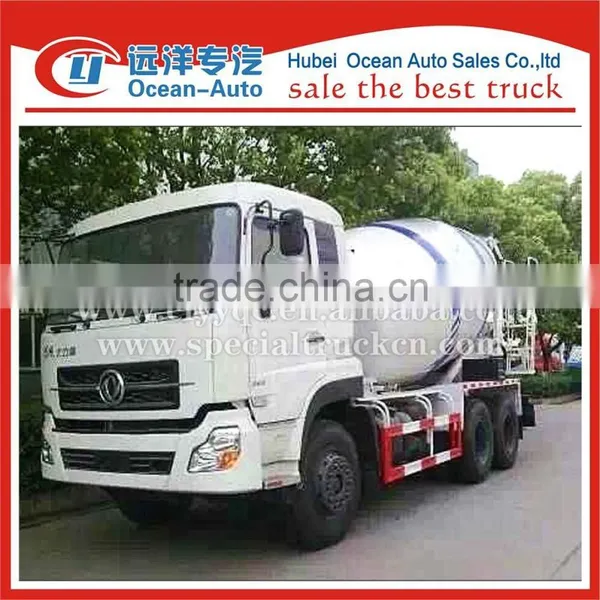

DongFeng 10CBM diesel concrete mobile mixer truck

Product Description

1.running stable
2.quality reliable
3.inner environmental comfortable
4.energy efficient
5.famous brand chassis

Main specifications
Product model,name	CLW5250GJB3 Concrete mixer truck
Gross weight(Kg)	25000		Drive type	6 x 4
Payload(Kg)	10820,10755		Overall demension(mm)	9650×2500×3970
Curb weight(Kg)	14050		Cab seats(man)	2,3
Approach/departure angle(°)	30/13,30/12,30/14		Front/rear hang(mm)	1500/2800
Number of axles	3		Wheelbase(mm)	3800+1350
Axle load(Kg)	7000/18000		Max speed(Km/h)	75
Chassis specifications
Chassis model	DFL5251GJBA1		Manufacture	Dongfeng Motor Co., Ltd.
Brand name	DongFeng		Overall dimension(mm)	8550×2500×3030
Tire specification	11.00-20		Tires No.	10
Steel spring number	9/10,9/13,8/12,10/12,10/13		Front track(mm)	2027,2040
Fuel type	Diesel		Rear track(mm)	1820/1820,1850/1850
Emission standard	Euro III		Transmission	9 forward gear
Cabin	Luxury interior and Instrument bar, with air conditioning and sleeper.
Engine model	Engine manufacutre	Displacement(ml)		Power(kw)
L340 30	Dongfeng Engine Co., Ltd.	8900		250
Concrete mixer truck performance
Tank volume(m3)	10	Material of tank		Q345
Pump	Import	Motor		Import
Reducer	Import	Surplus ratio		≤1.0%
Water tank volume(L)	350L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
