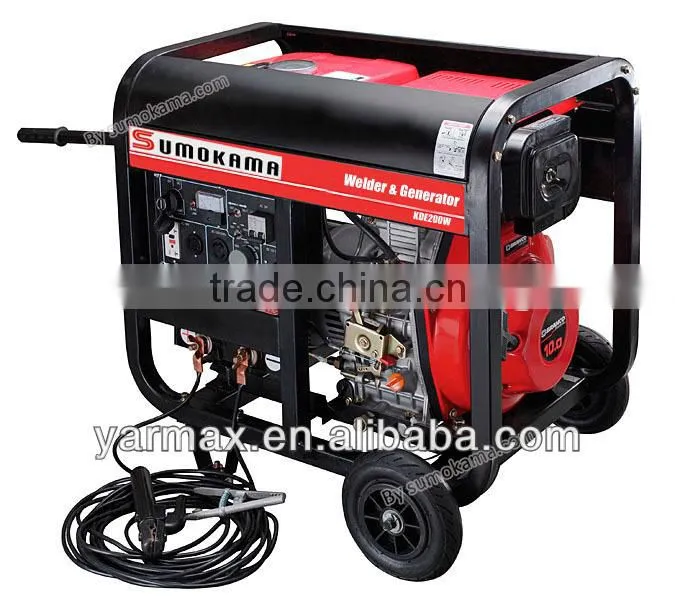

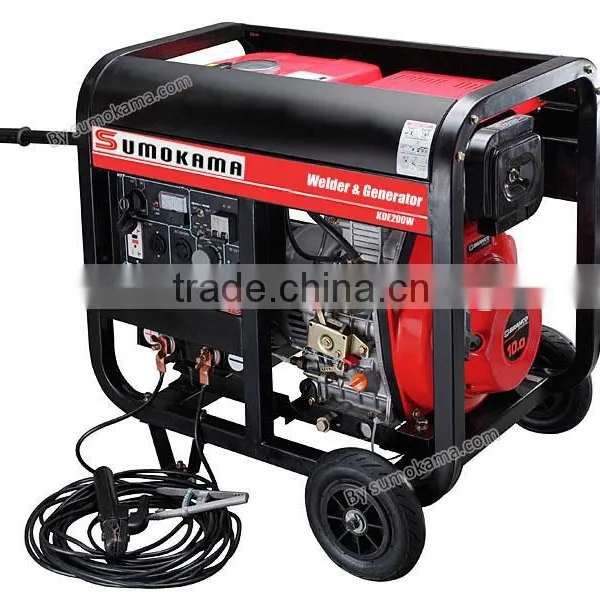

KDE6500EW 5KW Welding Generator Machine

Model

KDE200W

Frequency (HZ)

50

60

Rated Output (KVA)

2.2

2.5

Rated Voltage (V)

230

240

Rated current (A)

8.7

9.2

Rated rotation speed (rpm)

3000

 3600

No-load welding voltaged:V

65-67

Rated welding voltaged:V

26-30

Rated welding DC:A

160

Current adjusting extension

50-190

Welding Electrode φ (mm)

1.6-4.0

Welding load continuous ratio

50%

Phase No.

Single phase

Power Factor

COS  φ =1

Excitation Mode

Self-excitation, 2 pole and constant voltage (AVR)

DC Output

12V./8.3A ,Connection Pole Output

Structure Type

Open frame type

Noise Level (7m) dB(A)

75-79

Engine Model

 KM186FA

Engine type

Single-Cylinder, Vertical, Four-Stroke, Direct Injection,Air Cooled Diesel

Bore × Stroke(mm)

86×72

Displacement (L)

0.418

Rated Power KW

5.7/3000

6.3/3600

Fuel comsumption Rate(g.kw/h)

275.1

281.5

Compression Ratio

19:1

Lubrication System

Pressure Splashed

Starting System

  Electric Start with 30Ah MF battery

Fuel Type

0#(summer),-10#(winter), diesel

Lube Oil Brand

  SAE10W30 (above CD Grade)

Lube Capacity (L)

1.65

Fuel Tank Capacity (L)

12.5

Continuous Running Time (hr)

12

Overall Dimension: LxWxH (mm)

750 x 520 x 660

Dry Weight (Kg)

110

Quantity in 20FT

99 Pcs

We reserve the right to change specifications without notice
