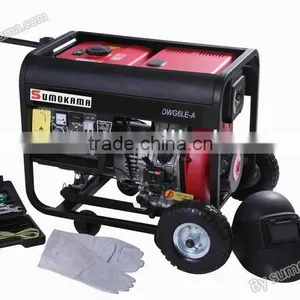

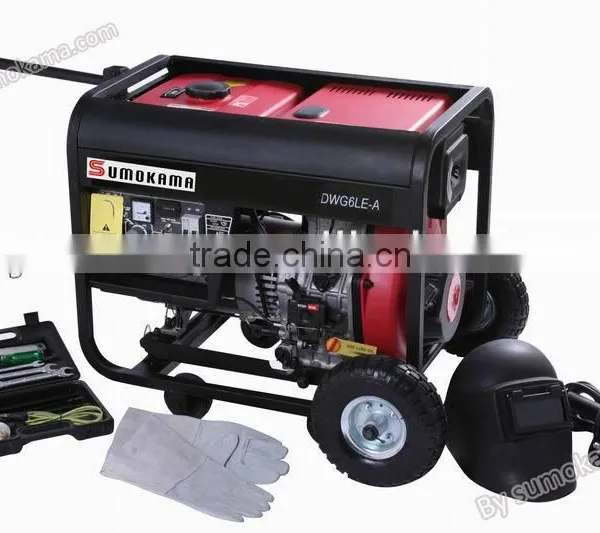

KDG6LE Micro Welding Machine

Name: KDG6LE Micro Welding Machine
Brand: Sumokama
SKU: 140761384
Availability: InStock

US$ 200 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Sumokama

Model Number:

DWG6LE

Changzhou Yarmax Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Sumokama

Model Number DWG6LE

Voltage 230/240v

Current 8.7/9.2 A

Rated Duty Cycle 12h

Dimensions 750 x 520 x 660 mm

Weight 110kg

Usage welding and generator

Certification CE, EPA, ISO 9001

Specifications

Consistent dependable starting
Low noise and vibration
Low fuel consumption

Model	DWG6LE-A
Frequency (HZ)	50	60
Rated Output (KVA)	2.0	2.2
Rated Voltage (V)	230	240
Rated current (A)	8.7	9.2
Rated rotation speed (rpm)	3000	3600
No-load welding voltaged:V	65-67
Rated welding voltaged:V	26-30
Rated welding DC:A	160
Current adjusting extension	50-190
Welding Electrode φ (mm)	1.6-4.0
Welding load continuous ratio	50%
Phase No.	Single phase
Power Factor	COS φ =1
Excitation Mode	Self-excitation, 2 pole and constant voltage (AVR)
DC Output	12V./8.3A ,Connection Pole Output
Structure Type	Open frame type
Noise Level (7m) dB(A)	75-79
Engine Model	KM186FA
Engine type	Single-Cylinder, Vertical, Four-Stroke, Direct Injection,Air Cooled Diesel
Bore × Stroke(mm)	86×72
Displacement (L)	0.418
Rated Power KW	5.7/3000	6.3/3600
Fuel comsumption Rate(g.kw/h)	275.1		281.5
Compression Ratio	19:1
Lubrication System	Pressure Splashed
Starting System	Electric Start with 30Ah MF battery
Fuel Type	0#(summer),-10#(winter), diesel
Lube Oil Brand	SAE10W30 (above CD Grade)
Lube Capacity (L)	1.65
Fuel Tank Capacity (L)	12.5
Continuous Running Time (hr)	12
Overall Dimension: LxWxH (mm)	750 x 520 x 660 (960550760 for YM7500TW)
Dry Weight (Kg)	110
Quantity in 20FT	99 Pcs
We reserve the right to change specifications without notice
