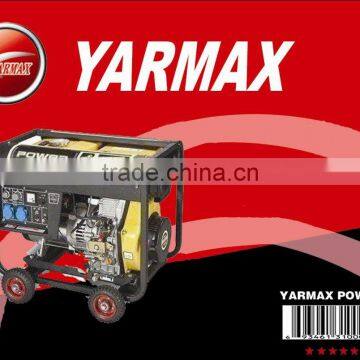

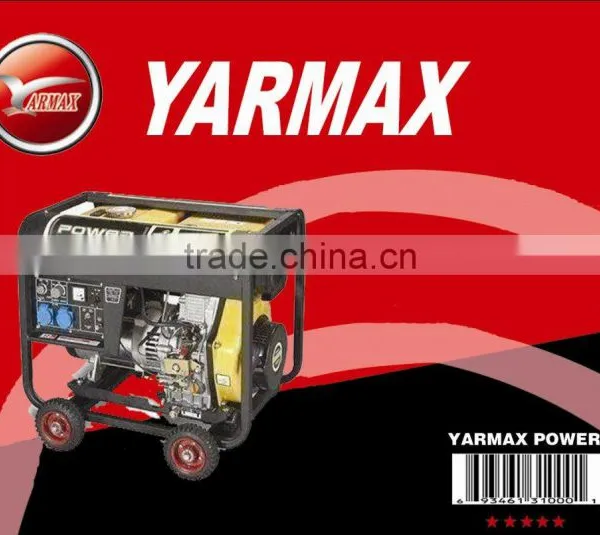

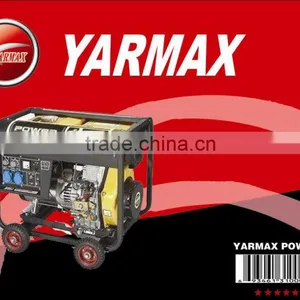

220V Diesel Generator

Specifications

Product Specifications:

Dual function as welder or generator

New type fuel injection system and combustion system ensure maximum power from every drop of diesel and minimum exhaust of waste gas

Emergency low oil shutdown system effect on lube oil level below safe level

Large fuel tank ensures hours of continuous running

Specifications:

Engine model: KL186F

Type: revolving field, 2-pole generator

Rectifying mode: IGBT + three-phase rectifying bridge (PWM)

Type: single cylinder, air-cooled and 4-stroke vertical

Starting mode: recoil/electric

AC frequency: 60, 50Hz

AC output voltage: 120/240, 115/230V

Continuous AC output: 2,200 or 2,000VA

Rated welding current DC: 160A

Welding voltage: 25 to 30V DC

Welding load continuous ratio: 50%

Welding current adjustment range: 80 to 180A

Insulation grade: B

Electrode: Ø.6 to 4.0mm

Fuel/lube capacity: 15/1.65L

Fuel/lube oil: 0# in summer, -10# or -20# in winter/SAE10W30

Operating noise level (at 7m): 83dBA

Suitable for house or industrial applications

Packing:

750 x 490 x 680mm or 29.5 x 19.3 x 26.8-inch

Net weight: 113kg or 249.1lbs
