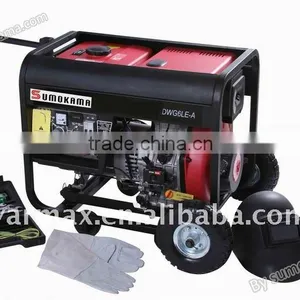

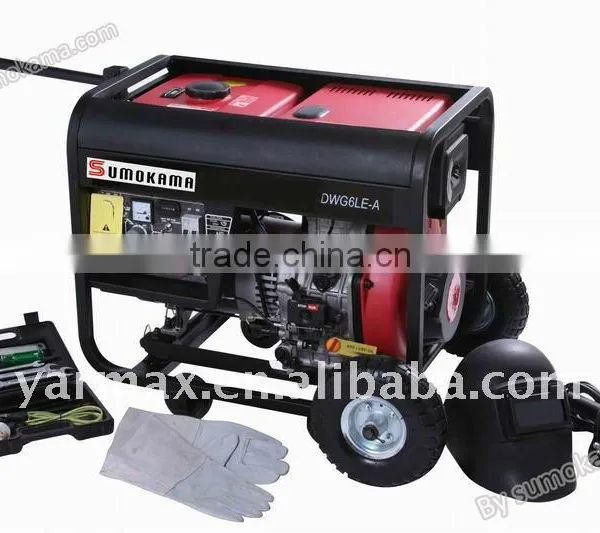

2.5KW Welder & Generator

Model

DWG6LE-A

Frequency (HZ)

50

60

Rated Output (KVA)

2.0

2.2

Rated Voltage (V)

230

240

Rated current (A)

8.7

9.2

Rated rotation speed (rpm)

3000

 3600

No-load welding voltaged:V

65-67

Rated welding voltaged:V

26-30

Rated welding DC:A

160

Current adjusting extension

50-190

Welding Electrode φ (mm)

1.6-4.0

Welding load continuous ratio

50%

Phase No.

Single phase

Power Factor

COS=1

Excitation Mode

Self-excitation, 2 pole and constant voltage (AVR)

DC Output

12V./8.3A ,Connection Pole Output

Structure Type

Open frame type

Noise Level (7m) dB(A)

75-79

Engine Model

 KM186FA

Engine type

Single-Cylinder, Vertical, Four-Stroke, Direct Injection,Air Cooled Diesel

Bore × Stroke(mm)

86×72

Displacement (L)

0.418

Rated Power KW

5.7/3000

6.3/3600

Fuel comsumption Rate(g.kw/h)

275.1

281.5

Compression Ratio

19:1

Lubrication System

Pressure Splashed

Starting System

  Electric Start with 30Ah MF battery

Fuel Type

0#(summer),-10#(winter), diesel

Lube Oil Brand

  SAE10W30 (above CD Grade)

Lube Capacity (L)

1.65

Fuel Tank Capacity (L)

12.5

Continuous Running Time (hr)

12

Overall Dimension: LxWxH (mm)

750 x 520 x 660   (960*550*760 for YM7500TW)

Dry Weight (Kg)

110

Quantity in 20FT

99 Pcs

We reserve the right to change specifications without notice
