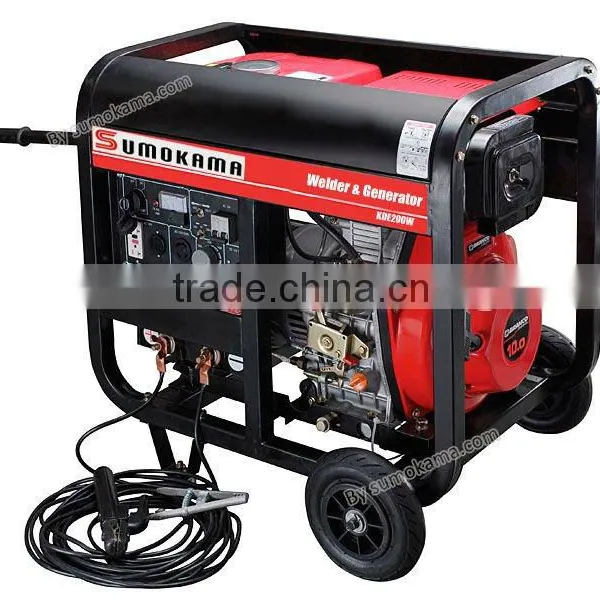

Welder & Generator

Name: Welder & Generator
Brand: Sumokama
SKU: 140761336
Availability: InStock

Changzhou Yarmax Power Co., Ltd.

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Sumokama

Model Number:

KDE200W

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Sumokama

Model Number KDE200W

Output Type AC Single Phase

Speed 3000/3600

Frequency 50HZ/60HZ

Rated Power 2.2/2.5

Rated Voltage 230/240

Rated Current 8.7/9.2

Specifications

Welding generator
1)Italy technology alternator(SINCRO type)
2)Excellent performance in welding
3)Different from others

Model	KDE200W
Frequency (HZ)	50	60
Rated Output (KVA)	2.2	2.5
Rated Voltage (V)	230	240
Rated current (A)	8.7	9.2
Rated rotation speed (rpm)	3000	3600
No-load welding voltaged:V	65-67
Rated welding voltaged:V	26-30
Rated welding DC:A	160
Current adjusting extension	50-190
Welding Electrode φ (mm)	1.6-4.0
Welding load continuous ratio	50%
Phase No.	Single phase
Power Factor	COS=1
Excitation Mode	Self-excitation, 2 pole and constant voltage (AVR)
DC Output	12V./8.3A ,Connection Pole Output
Structure Type	Open frame type
Noise Level (7m) dB(A)	75-79
Engine Model	KM186FA
Engine type	Single-Cylinder, Vertical, Four-Stroke, Direct Injection,Air Cooled Diesel
Bore × Stroke(mm)	86×72
Displacement (L)	0.418
Rated Power KW	5.7/3000	6.3/3600
Fuel comsumption Rate(g.kw/h)	275.1		281.5
Compression Ratio	19:1
Lubrication System	Pressure Splashed
Starting System	Electric Start with 30Ah MF battery
Fuel Type	0#(summer),-10#(winter), diesel
Lube Oil Brand	SAE10W30 (above CD Grade)
Lube Capacity (L)	1.65
Fuel Tank Capacity (L)	12.5
Continuous Running Time (hr)	12
Overall Dimension: LxWxH (mm)	750 x 520 x 660
Dry Weight (Kg)	110
Quantity in 20FT	99 Pcs
We reserve the right to change specifications without notice
