Home > Products > Portable Diesel Generator > 5.2kw open type air cooled single phase portable diesel generator

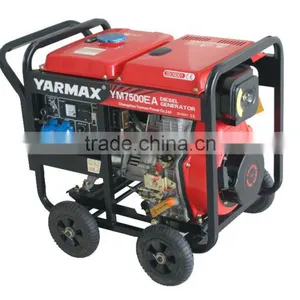

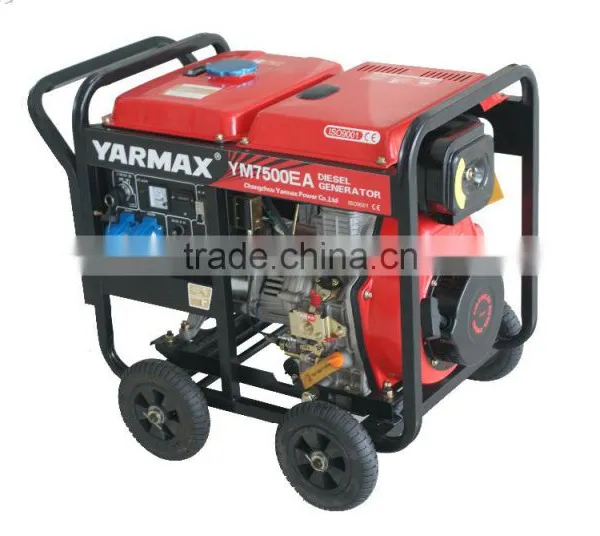

5.2kw open type air cooled single phase portable diesel generator
USD $384 - $384
/ Carton
102 Cartons(Min.Order)
- 10000 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | YARMAX | Model Number: | YM7500EA |
Output Type: | AC Single Phase | Speed: | 3000/3600rpm | Frequency: | 50/60HZ |
Rated Power: | 5.0kw | Rated Voltage: | 220V or as requested | Rated Current: | 21.7A |
Product Description
Model | YM7500EA |
Rated frequency(Hz) | 50 60 |
Rated output(kVA) | 4.8 5.0 |
Max. output (kVA) | 5.0 5.2 |
Rated Voltage(V) | 230 or as requested |
Rated current(A) | 21.7 |
Rated rotation speed(r/min) | 3000 3600 |
Phase NO. | Single phase |
Power factor(Cos Φ) | 1 |
Insulation Grade | B |
Pole number | 2 |
Excitation mode | Self-excitation & constant voltage (AVR) |
Panel Type | General Panel |
Voltage(V) | 230 or as requested |
Receptacle | Two receptacles |
Connection pole | Without |
DC12V output | Connection pole output |
Overall dimension(L×W×H)mm | 720X492X655 |
Dry weight(kg) | 100 |
Working assorting weight | 115 |
Noise level(7m)dB(A) | 77 |
Structure type | Open type |
Engine Model | YM188FBG |
Engine Type | Single cylinder, vertical, four-stroke, direct injection, air-cooled |
Cylinder NO.-bore×stroke(mm) | 88×74 |
Displacement(ml) | 0.497 |
Rated power [KW/(r/min)] | 7.3/3000 |
Compression ratio | 19:01 |
Lubrication system | Pressure splashed |
Starting system | Electric starter |
Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
Lube oil brand | CD grade or SAE10W-30,15W-40 |
Lube capacity(L) | 1.65 |
Starting motor capacity( V-kW) | 12V 0.8kW |
Charging generator capacity ( V-A) | 12V 3A |
Battery capacity(v-Ah) | 12V 36Ah |
Fuel consumption(g/kw.h) | ≤370 |
Fuel tank capacity(L) | 13.5 |
Continuous running time(hr) | 5.5 |
