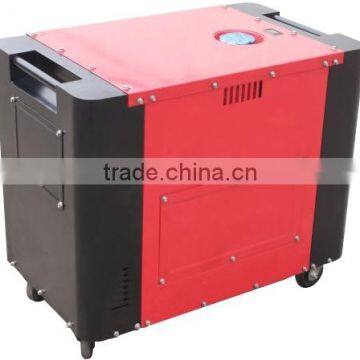

5kva Ultra Silent Portable Air Cooled Diesel Generator
US$ 525 - 525
MOQ: 100 Cartons
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YARMAX
Model Number:
YM7000T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3kw Portable Air Cooled Open Type Diesel GeneratorUS$ 345 - 345MOQ: 70 Cartons -
7KVA Air Cooled Portable Diesel GeneratorUS$ 560 - 560MOQ: 144 Cartons
-
Portable GeneratorsUS$ 480 - 520MOQ: 1 Set
-
Home GeneratorsUS$ 480 - 520MOQ: 1 Set
-
Air Cooled Diesel Generator KDE6700TAUS$ 500 - 580MOQ: 5 Sets
Place of Origin
Jiangsu, China
Brand Name
YARMAX
Model Number
YM7000T
Output Type
AC Single Phase
Speed
3000/3600rpm
Frequency
50/60HZ
Rated Power
5KW
Rated Voltage
220V or as requested
Rated Current
19.6A
| Model | YM7000T |
| Rated frequency | 50 60 |
| Rated output(kVA) | 4.5 5.0 |
| Max. output(kVA) | 5.0 5.5 |
| Rated Voltage(V) | 230 or as requested |
| Rated current (A) | 19.6 |
| Rated rotation speed(r/min) | 3000 3600 |
| Phase NO. | Single phase |
| Power factor(Cos Φ) | 1 |
| Insulation Grade | B |
| Pole number | 2 |
| Excitation mode | Self-excitation & constant voltage (AVR) |
| Panel Type | General Panel |
| Voltage(V) | 230 or as requested |
| Receptacle | Two receptacles |
| Connection pole | Without |
| DC12V output | Connection pole output |
| Overall dimension(L×W×H)mm | 930×530×740 |
| Dry weight(kg) | 170 |
| Working assorting weight | 185 |
| Noise level(7m)dB(A) | 62~64 |
| Structure type | Silent type |
| Engine Model | YM186FAG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection |
| Cylinder NO.-bore×stroke(mm) | 1-86×72 |
| Displacement(ml) | 418 |
| Rated power[KW/(r/min)] | 5.7/3000 |
| Compression ratio | 19:01 |
| Rated rotation speed(r/min) | 3000 |
| Cooling system | Air cooled |
| Combustion system | Direct injection |
| Starting system | Electric starter |
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel |
| Lube oil brand | CD grade or SAE10W-30,15W-40 |
| Lube capacity(L) | 1.65 |
| Starting motor capacity( V-kW) | 12V 0.8kW |
| Charging generator capacity ( V-A) | 12V 3A |
| Battery capacity(v-Ah) | 12V 30-36Ah |
| Fuel consumption(g/kw.h) | ≤360 |
| Fuel tank capacity(L) | 15 |
| Continuous running time(hr) | 6 |
