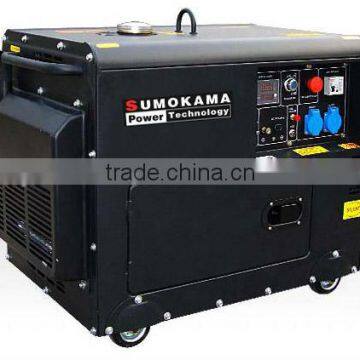

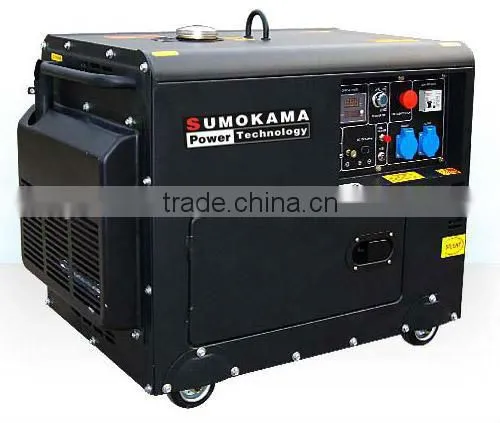

7KVA Silent Diesel Generators Prices KDE8600T3 With ATS

Name: 7KVA Silent Diesel Generators Prices KDE8600T3 With ATS
Brand: Kama
SKU: 140761050
Availability: InStock

US$ 300 - 800 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Kama

Model Number:

KDE8600T3

Changzhou Yarmax Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Kama

Model Number KDE8600T3

Output Type AC Three Phase

Speed 3000RPM

Frequency 50HZ

Rated Power 7KVA

Rated Voltage 230/400

Rated Current 10.1A

Specifications

Brand-name Parts
china manufacturer
1 year warranty
generator set for home use

Model	KDE8600T3
Frequency(HZ)	50
Rate power(KVA)	7.0
Max. power(KVA)	7.5
Voltage(V)	230/400
Current(A)	10.1
Engine speed(r/min)	3000
Phase	3-phase
Power factor	0.8
Excitation system	Self-excited constant voltage (with AVR)
Noise level (7m) dB(A)	72
Fuel tank capacity(L)	15
Structure	Silent type
Panel	Ordinary
Output socket	One single-phase, and one 3-phase
DC12VOutput	Terminal post
Net weight(kg)	175
Dimension(LWH)(mm)	970x560x770
Engine model	KM188F-B
Engine type	Single-cylinder, vertical, air-cooled, direct injection
Bore*stroke(mm)	88x75
Displacement(L)	0.450
Power(KW)	7.5/3000
Fuel consumption rate (g/kw. h)	275
Compression ratio	20
Lubrication system	Forced & splashing
Engine starting system	Electric Start
Diesel oil model	Summer:0# Winter:-10#
Lube oil model	SAE10W-30 (above CD grade)
Lube oil capacity(L)	1.65
Battery capacity(V-AH)	12v-36Ah
