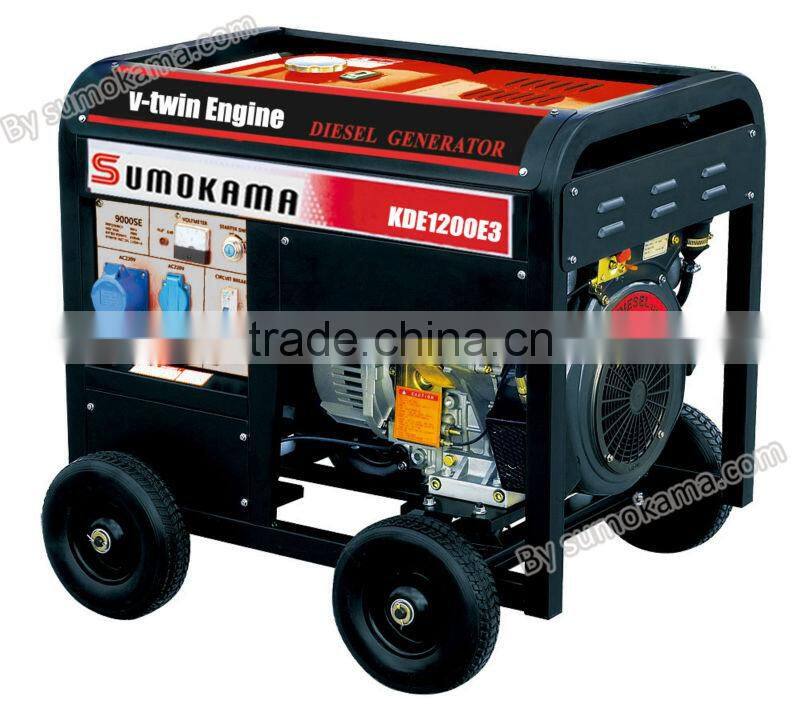

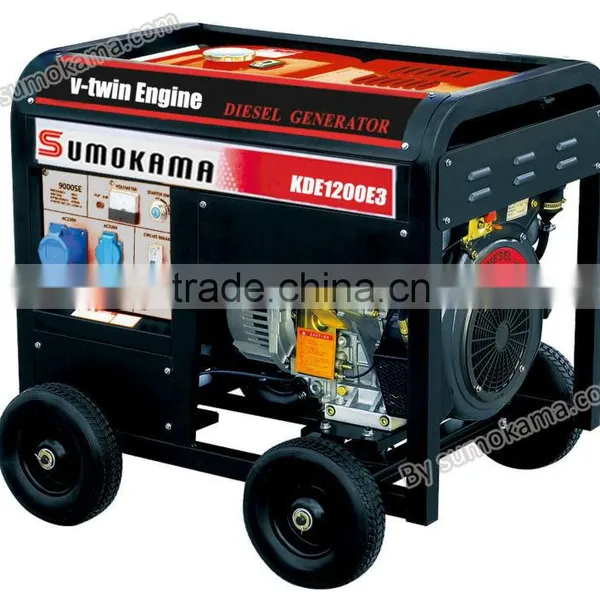

10KW CE approved Air Cooled Diesel Generator Open Type KDE1200E/1200E3

Model

KDE12000E

KDE1200E3

Rated frequency Hz

50

60

50

60

Rated output power kVA

10

11

11

12

Max. power kVA

11

12

12

13

Rated voltage V

230

240

400/230

400/230

Rated current A

43.5

45.8

15.9

16.7

Phase No.

Single

Three

Power factor (cosφ)

0.9 (lag)

0.8 (lag)

Insulation

F

Pole No.

2

Exciting mode

Brush, exciting-self voltage-constant (with AVR)

DC12V output

12V, 8.3A

Dimensions L×W×H (mm)

870×630×700

Net weight (Kg)

195

Noise (7m)dB(A)

82

Engine model

R2V840

Engine Type

V-twin, two-cylinder, four-stroke, Direct injection

Cylinder No. –bore ×stroke (mm)

 2-86×72

Total displacement (ml)

836

Compressed ratio

20:1

Cooling type

Air Cooled

Lubricating type

Pressure & splashing

Starting type

Electric Start

Fuel Type

0 # (summer) -10 # ( winter) -35 # (cold winter) light diesel

Oil Type

SAE10W30 (CD grade above)

Lubricating oil capacity (L)

1.7

Starting motor capacity V-kW

12V  1.4kW

Battery capacity V-Ah

12V  45AH

Fuel consumption under full loading (L/H)

3.5

4.0

3.5

4.0

Fuel tank capacity ( L)

25

Continuous running time  (Hr)

7.1

6.5

7.1
