Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Quanchai Diesel Generator

Quanchai Diesel Generator

Quanchai Diesel Generator thumbnail-1
Quanchai Diesel Generator photo-1
US$ 2,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Quanchai
Model Number:
KDE-22Q
Contact Supplier Request Quote Chat Now
Changzhou Yarmax Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Quanchai
Model Number KDE-22Q
Output Type AC Three Phase
Speed 1500
Frequency 50HZ
Rated Power 20kw
Rated Voltage 220/380V

Specifications

1) Enough power genset
2)Powerful engine and alternetaor
3)Very competitive price

Product Description

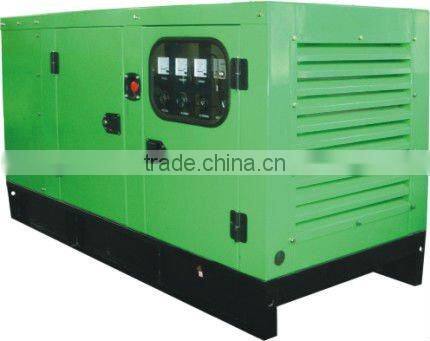

Quanchai diesel generator set:
Quanchai series Engine is made in Anhui. Anhui Quanchai Engine Co Ltd was established in 1949, and it is a large state-owned listed company at stock market, which mainly produces diesel engines. The main products of Quanchai are single and multi cylinder diesel engine, from 1 to 6 cylinders, and power ranges from 6 to 120HP.

Generally the generators adobt our company's TFW2 series brushless three phase synchronous generator(the characteristic and technical data see the section"Generators in industry"). If the customer requires that also could adopt TFX series compound excitation generator or STC series third-harmonic excitation generator or other generators.

The generator set is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a. C. Ampere meter, d. C. Ampere meter, water temperature meter, oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manual&electric&automatic Transfer can be selected by our customer.

The generator sets also can adopt fuel box at bottom, contoller with four protections(high water temperature, high oil temperature, low oil pressure, over speed); Also can design for silent, fully automatic transfer and automatic parallel system.



Quanchai diesel generator

Genset model Frequency Prime Power Standby Power Engine Cylinder No. Air intake way Combustion chamber
KW KVA KW KVA
KDE10Q 50/60 8 10 10 12.5 QC385D 3 Natural Direct injection
KDE12Q 50/60 10 12.5 12 15 QC385D 3 Natural Direct injection
KDE14Q 50/60 12 15 14 17.5 QC480G 4 Natural Direct injection
KDE16Q 60 14 17.5 16 20 QC480G 4 Natural Direct injection
KDE16Q 50 14 17.5 16 20 N485D 4 Natural Direct injection
KDE18Q 60 16 20 18 22.5 N485D 4 Natural Direct injection
KDE20Q 50 18 22.5 20 25 QC490D 4 Natural Direct injection
KDE22Q 60 20 25 22 27.5 QC490D 4 Natural Direct injection
KDE24Q 60 22 27.5 24 30 QC490D 4 Natural Direct injection
KDE22Q 50 20 25 22 27.5 QC498D 4 Natural Direct injection
KDE26Q 60 24 30 26 32.5 QC498D 4 Natural Direct injection
KDE28Q 60 25 31 28 35 QC498D 4 Natural Direct injection
KDE28Q 50 25 31 28 35 4102D 4 Natural Direct injection
KDE32Q 50 28 35 32 40 4102D 4 Natural Direct injection
KDE33Q 60 30 37.5 33 41 4102D 4 Natural Direct injection
KDE38Q 60 34 42.5 38 47.5 4102D 4 Natural Direct injection
