Specifications
1)Original volvo diesel generator2)compact struture with low noise
3)Low fuel consumption

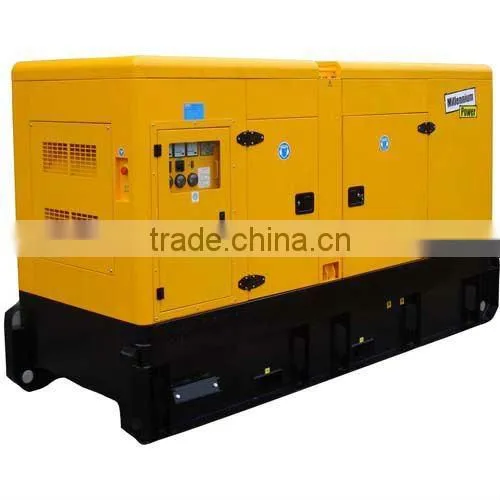

Volvo Diesel Generators:
Sweden Volvo PENTA Corporation is one of the most specialized factory in producing 6 cylinder diesel generators' in the world. The company has a lead position in design and manufacture.
1. It has outstanding ability on starting and bearing capacity, and the cold start is quick and reliable. The low inertia turbo-charged and injecting system make engines can recover the capacity in a short time. We use the electronic injecting system.
2. The operation cost is low, we uses advanced technology to optimize combustion process, and continuous load operating cost is reduced.
3. The work is steadable, the noise is low, well-designed booster, exact pressure supercharger and cooling fan are matched exactly.
4. The low exhaust gas discharge, the water - spatial (TWD) and spatial - spatial (TAD) the cold static engine's exhaust smoke is smaller than the 1Bosch unit.
5. The global approval's high quality product, has the specialized global post-sale service system.
6. The high quality approved by the global, and it has the professional after service system in the whole world.
| Genset | Atemator model | Data of the diesel engin(1500R/Min) | DIMENSION AND WEGHT | ||||||||||
| model | Output Power (KW) | Model | No. of | Output Power (KW) | Bore/Stroke (mm) | Displa Cement (L) | Fule Consum ption (g/kw. h) | Oil sump (L) | Overall dimenesion (mm) | N. M (Kg) | |||
| L | W | H | |||||||||||
| KDE-V68GF | 68 | UCI224G | TD520GE | 4L | 108/130 | 4.76 | 208 | 13 | 2080 | 680 | 1450 | 1050 | |
| KDE-V80GF | 80 | UCI274C | TAD531GF | 4L | 108/130 | 4.76 | 208 | 13 | 2080 | 750 | 1450 | 1100 | |
| KDE-V104GF | 104 | UCI274E | TAD532GE | 4L | 108/130 | 4.76 | 208 | 13 | 2250 | 900 | 1450 | 1250 | |
| KDE-V120GF | 120 | UCI274F | TAD731GE | 6L | 108/130 | 7.15 | 203 | 20 | 2400 | 870 | 1450 | 1560 | |
| KDE-V150GF | 150 | UCI274G | TAD732GE | 6L | 108/130 | 7.15 | 203 | 34 | 2550 | 1060 | 1500 | 1600 | |
| KDE-V165GF | 165 | UCI274H | TAD733GE | 6L | 108/130 | 7.15 | 203 | 34 | 2550 | 1060 | 1500 | 1600 | |
| KDE-V200GF | 200 | UCD274K | TAD734GE | 6L | 108/130 | 7.15 | 203 | 29 | 2650 | 1100 | 1600 | 2400 | |
| KDE-DV200GF | 200 | UCD274K | TAD6DL2-30 | 6L | 220 | 112/145 | 8.6 | 199 | 27 | 2750 | 960 | 1550 | 2100 |
| KDE-V260GF | 260 | HCI444ES | TAD941GE | 6L | 120/138 | 9.31 | 203 | 35 | 2950 | 1120 | 1600 | 2700 | |
| KDE-DV260GF | 260 | HCI444ES | TAD6DN1-39 | 6L | 287 | 131/155 | 12.5 | 199 | 42 | 3200 | 1120 | 1600 | 2750 |
| KDE-V300GF | 300 | HCI444FS | TAD1241GE | 6L | 131/150 | 12.13 | 198 | 35 | 3100 | 1100 | 1630 | 2810 | |
| KDE-DV300GF | 300 | HCI444FS | TAD6DN1-45 | 6L | 330 | 112/145 | 12.5 | 199 | 42 | 3200 | 1120 | 1600 | 2800 |
| KDE-V327GF | 327 | HCI444F | TAD1242GE | 6L | 131/150 | 12.13 | 198 | 44 | 3100 | 1100 | 1630 | 2950 | |
| KDE-V369GF | 369 | HCI544C | TAD1640GE | 6L | 144/165 | 16.12 | 198 | 48 | 3300 | 1160 | 2000 | 3800 | |
| KDE-V407GF | 407 | HCI544C | TAD1641GE | 6L | 144/165 | 16.12 | 198 | 48 | 3300 | 1160 | 2000 | 3800 | |
| KDE-V456GF | 456 | HCI544E | TAD1642GE | 6L | 144/165 | 16.12 | 198 | 48 | 3300 | 1160 | 2000 | 3850 | |
| KDE-V504GF | 504 | HCI544FS | TAD1643GE | 6L | 144/165 | 16.12 | 198 | 48 | 3400 | 1380 | 2050 | 4050 | |
