Henan manufacturer low price wholesale gold dust wet grinding machine
The schematic diagram of the gold dust wet grinding machine, base on it, we made some improvements through the user' feedback
Why do customers choose Huahong?
Specification of gold dust grinding machine
The gold dust wet grinding machine is named by the diameter of roller. Φ 850, Φ 900, Φ 1000, Φ 1100,Φ 1200,Φ1300, Φ 1350, Φ 1400, Φ 1500, Φ 1600 is suitable for selection of gold, iron, molybdenum, lead, zinc, antimony and so on. The gold dust wet grinding machine has features of small investment high yield low production cost and good benefits. And it is widely praised by
Usage and Maintenance of gold dust wet grinding machine
1. The normal operation of the mill, before they start feeding.
2. This machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3. Should be uniform feeding not erratic, it is best to use the feeder.
4. Bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5. Regular checks of the various parts of the screw is loose.
6. Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7. Mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8. Machine maintenance, to ensure safety, you must remove the motor belt.

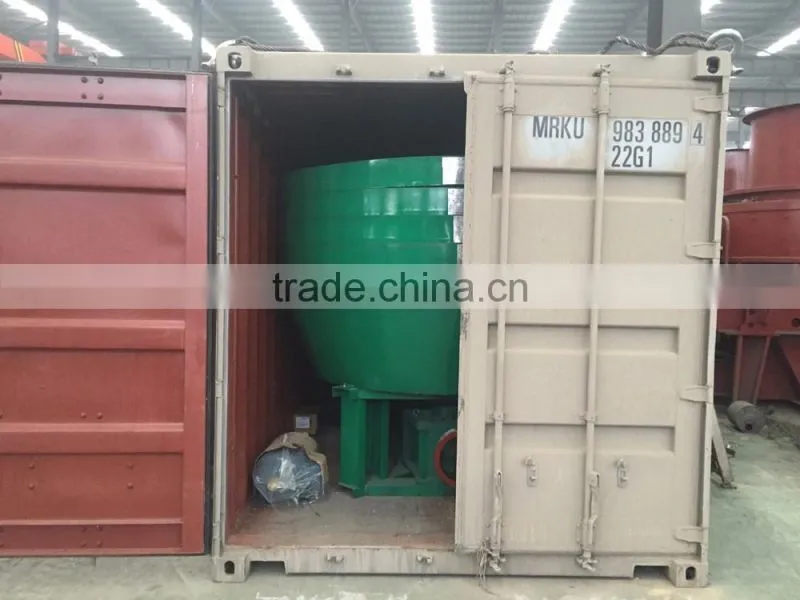

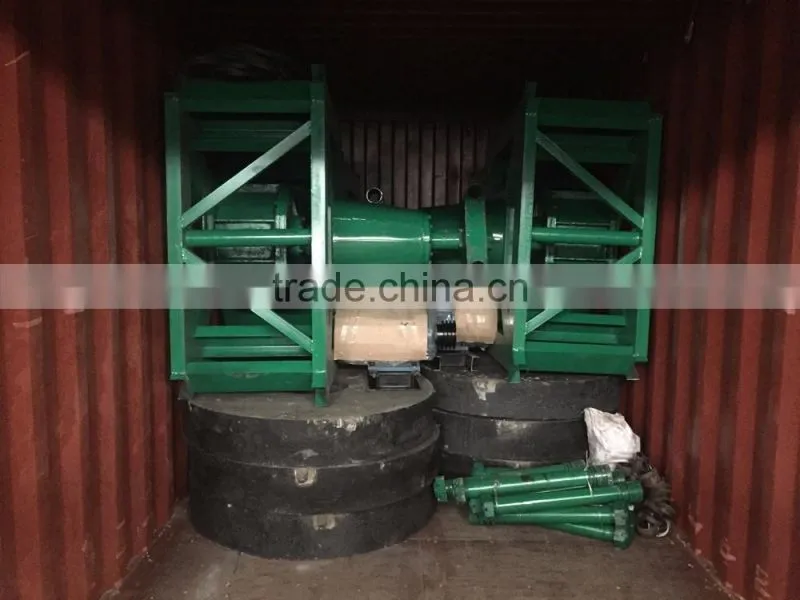

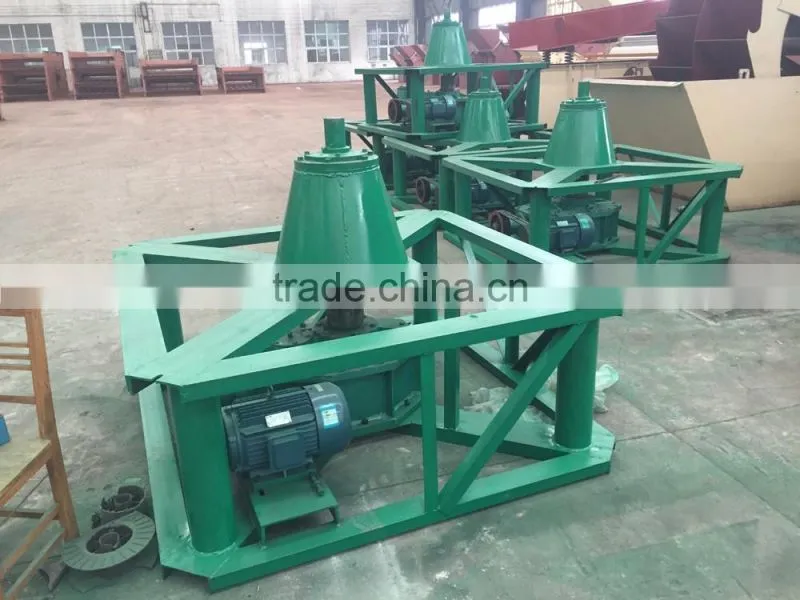

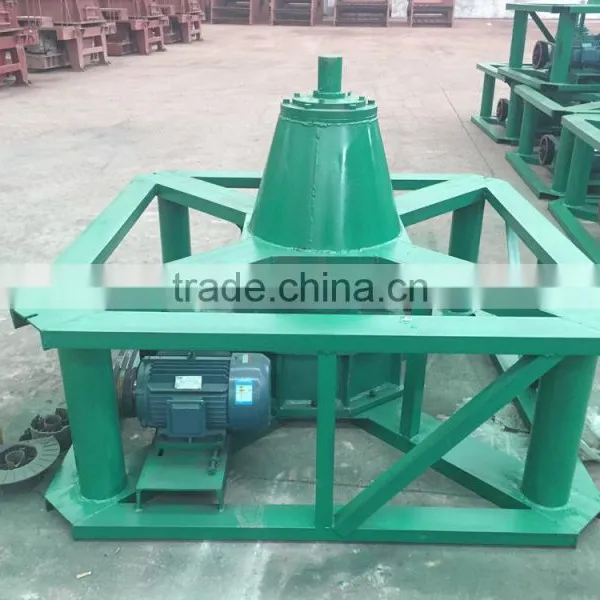

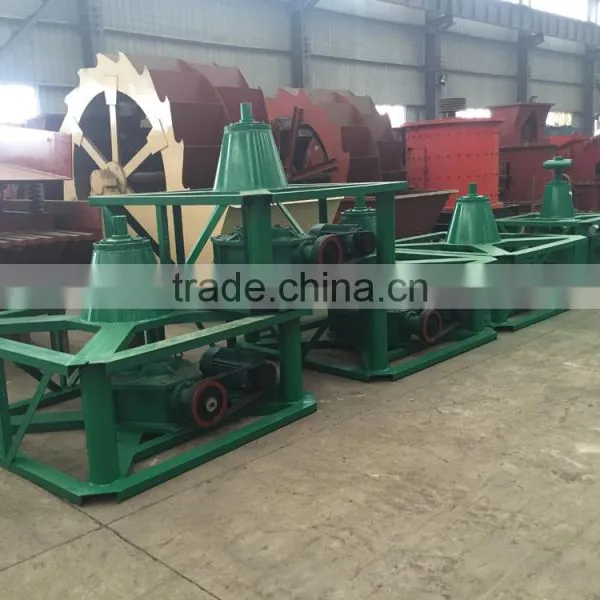

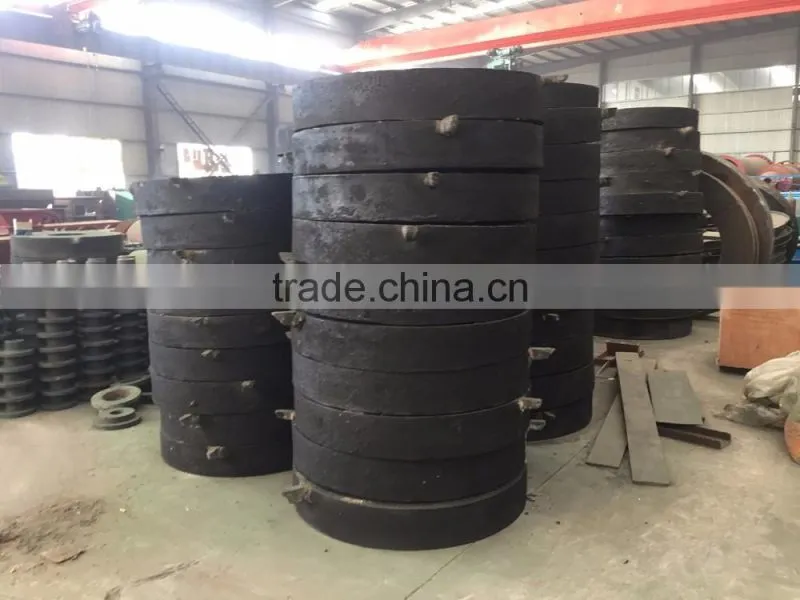

Some Detailed Pictures of gold dust wet grinding machine
Features of gold dust wet grinding machine
1.The size of gold sand material has to be blow 30 mm.
2.It's easy to use and energy saving.
3.This way can directly get pure gold
4.It is best suitable for small scale gold mine.

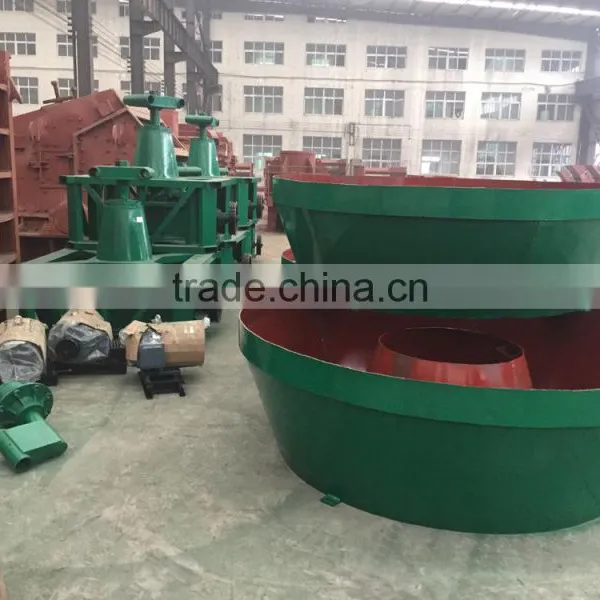

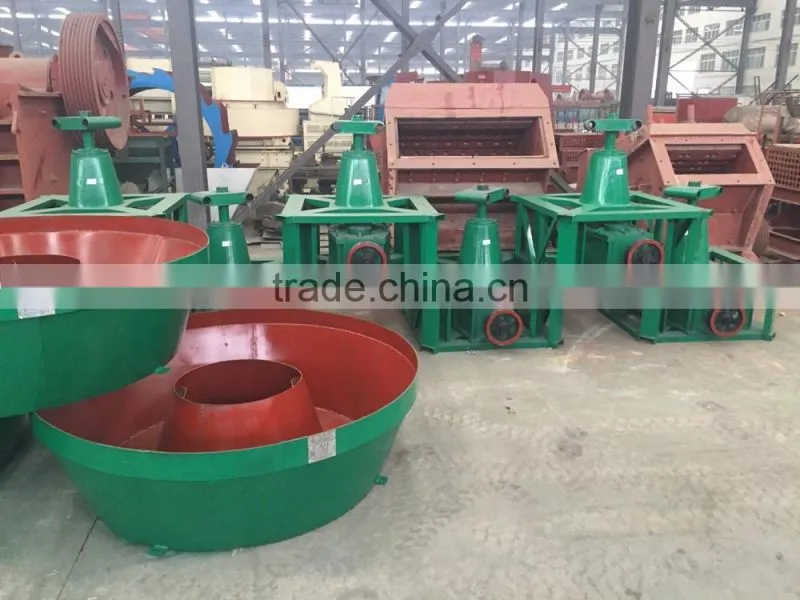

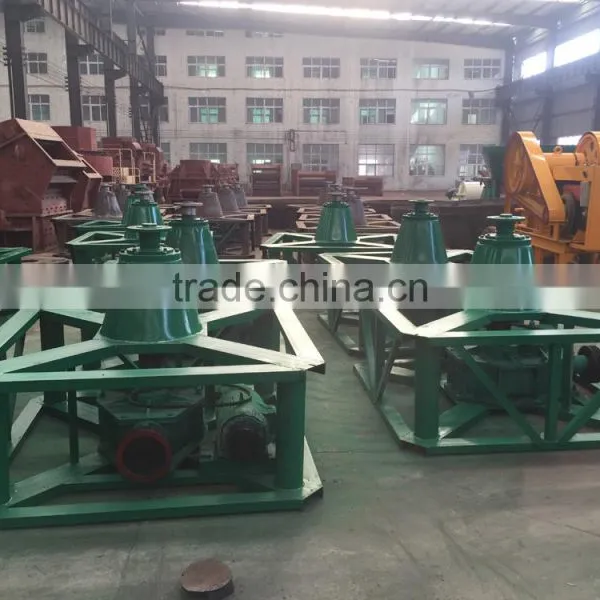

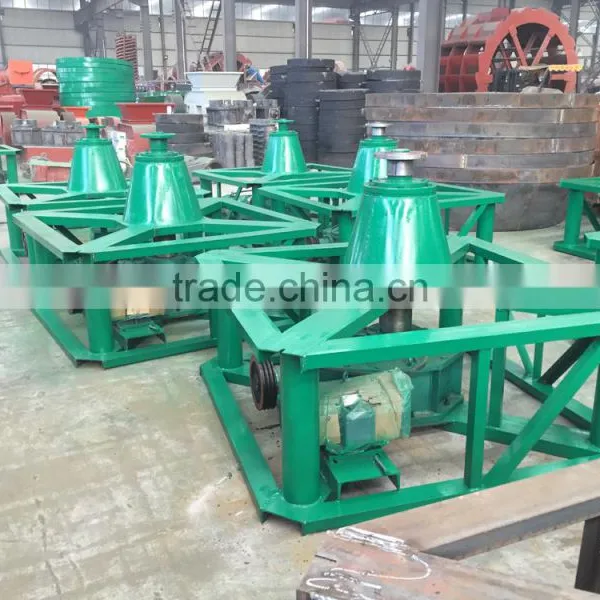

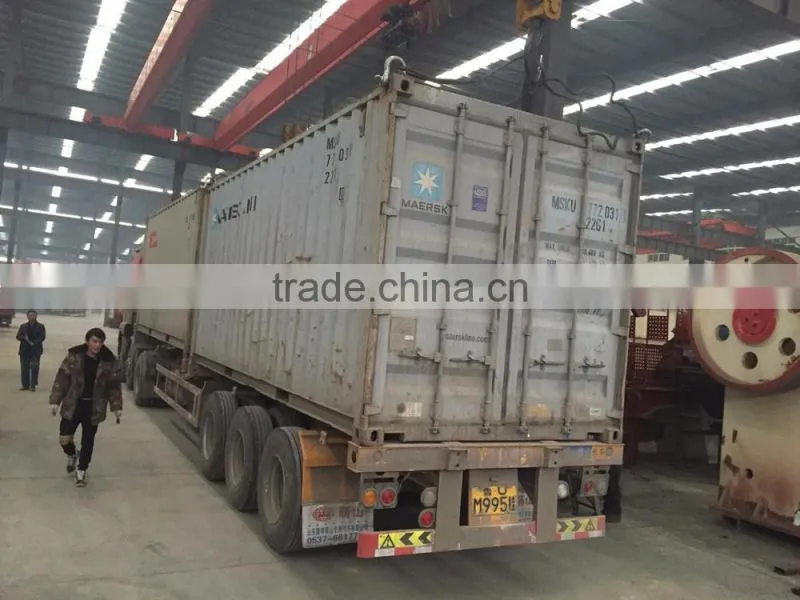

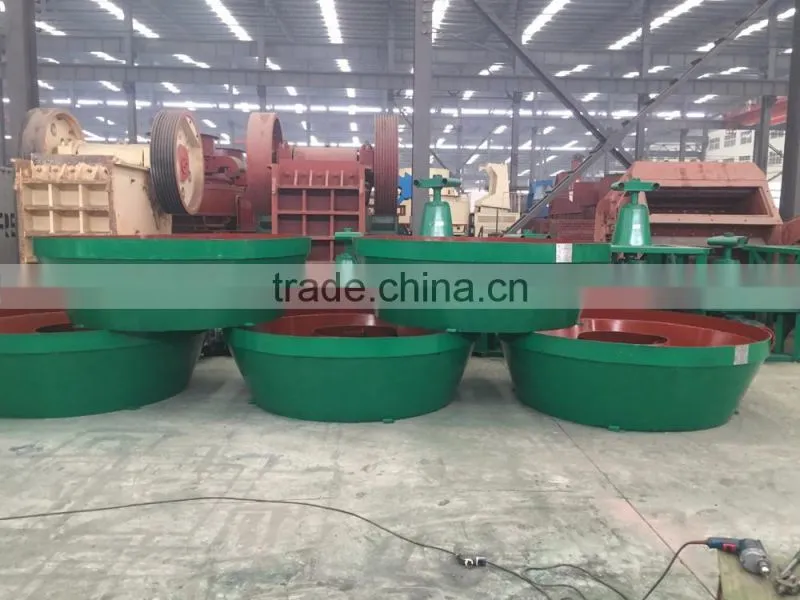

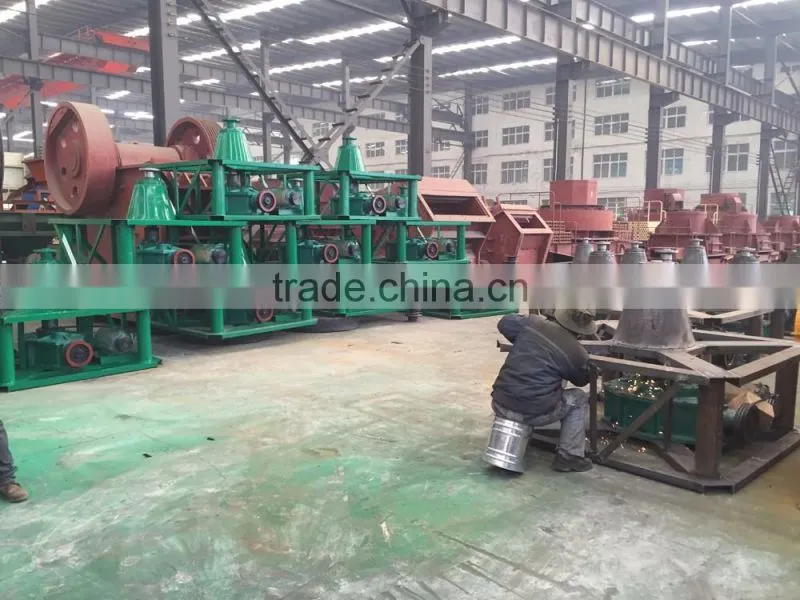

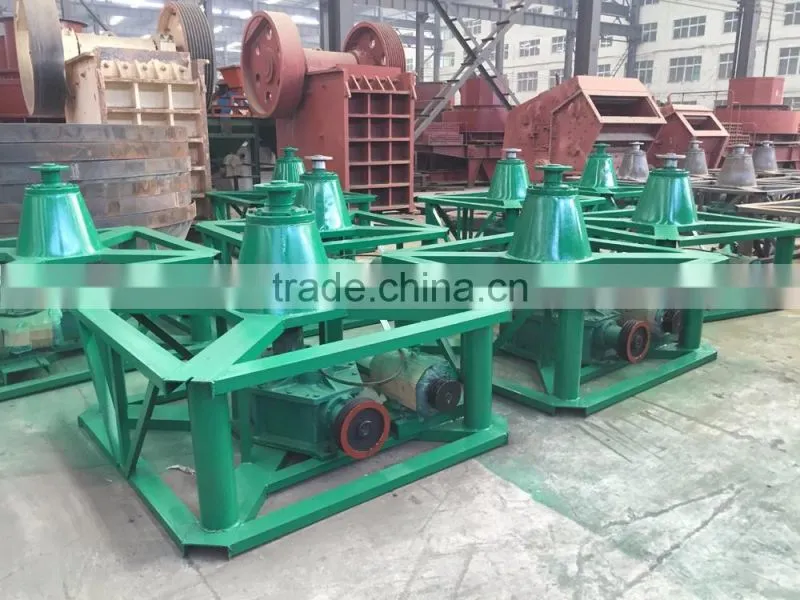

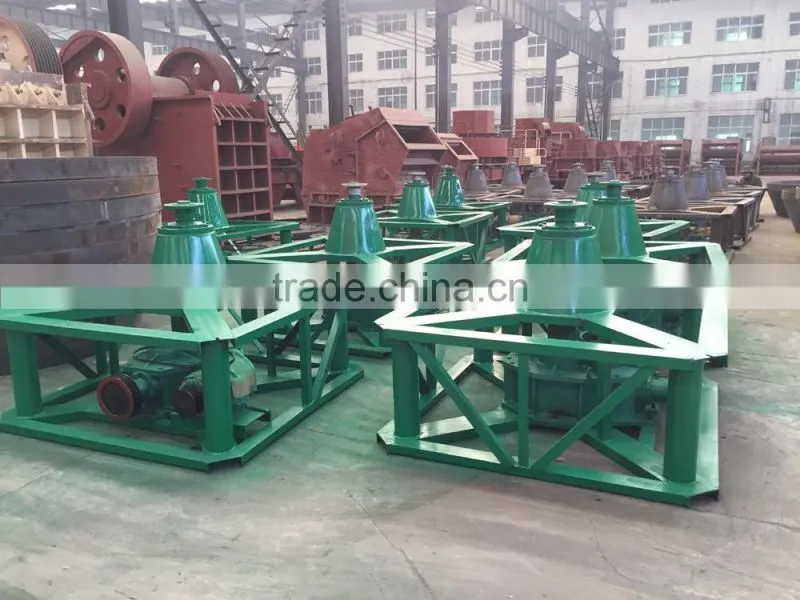

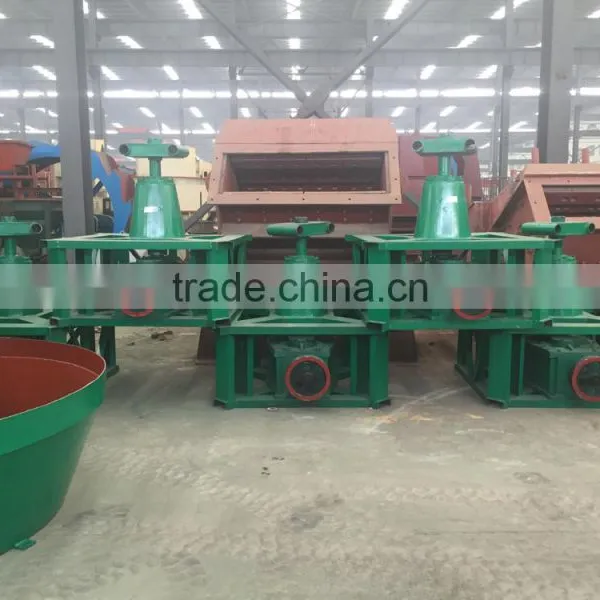

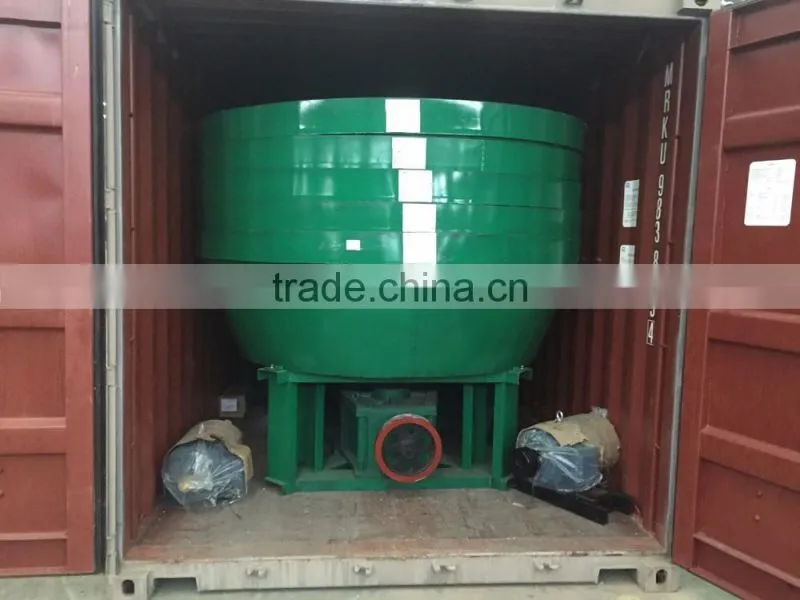

Gold dust wet grinding machine in large stock in our factor
Foreign Customer in visiting our
Technical Parameters of gold dust wet grinding machine
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3 |
3.2 |
