2014 New Raymond Mill,raymond Roller Mill,raymond Mill Price

2014 New Raymond Mill,raymond Roller Mill,raymond Mill Price thumbnail-1
2014 New Raymond Mill,raymond Roller Mill,raymond Mill Price photo-1
US$ 1 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Raymond Mill
Motor Type AC Motor
Power(W) Y160M-6-7.5
Capacity(t/h) 1-120/(t/8h)
Place of Origin Henan, China
Brand Name Huahong
Model Number Series
Dimension(L*W*H) According to size
Weight According to size
Certification ISO 9001:2008
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

2014 New raymond mill,raymond roller mill,raymond mill price

      2014 New raymond mill,raymond roller mill,raymond mill price





Why do customers choose Huahong?



Huahong raymond mill's applications:

Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass.

2014 New raymond mill,raymond roller mill,raymond mill price

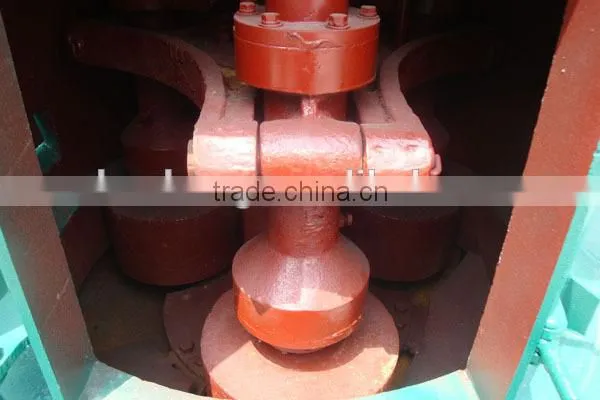

Huahong raymond mill's principles:

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate, since the pipeline joints are not airtight, the external air is sucked in and the circulation air massincreases.

2014 New raymond mill,raymond roller mill,raymond mill price

Huahong raymond mill's technical parameters:

Model data

3R1410

3R2615

3R2714

4R2714

3R3016

4R3016

4R3216

5R4119

6R4525

Max. feeding siz

          (mm)

5-8

20

20

15-25

15-25

15-25

25

30

30

Fineness of product

          (mm)

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

0.125-0.044

Capacity/Shift

          (t/8h)

(Range diff materials)

1-10

2-25

2-28

3-30

3-34

3-36

3-38

6-76

10-120

Speed (r/m)

280

170

170

170

178

178

130

105

82

Inner ring diameter

          (mm)

Φ405

Φ780

Φ830

Φ830

Φ910

Φ910

Φ970

Φ1280

Φ1770

Roller diameter

          (mm)

Φ140

Φ260

Φ270

Φ270

Φ300

Φ300

Φ320

Φ410

Φ450

Height (mm)

100

150

140

140

160

160

160

190

250

Main motor power(kw)

Y160M-6-7.5

Y225S-8-18.5

Y255M-8-18.5

Y225M-8-22

Y225M-8-30

Y225M-8-30

Y225S-4-37

Y280S-4-75

Y315M-4-132

Fan motor model

           (kw)

Y132S-4-5.5

Y180M-4-15

Y180M-4-18.5

Y180M-4-18.5

Y180L-4-22

Y180L-4-22

Y220M-4-30

Y25M-4-55

Y315M-4-132

Classifier  motor

           (kw)

Y90L-6-2.2

Y112M-6-2.2

Y112M-6-2.2

Y112M-6-2.2

Y132S-6-3

Y132S-6-3

YC1200-4A-5.5

YC1200-4B-7.5

Y160M-4-11

Dimensions(mm)

3340×2161×3246

5970×4000×5000

5970×4000×5000

5970×4000×5000

7500×4500×6200

7500×4500×6200

9900×5800×8500

7850×8000×9700

8850×10500×1100

Weight (kg)

2500

3800

3850

3900

7000

7500

14000

257000

2014 New raymond mill,raymond roller mill,raymond mill price

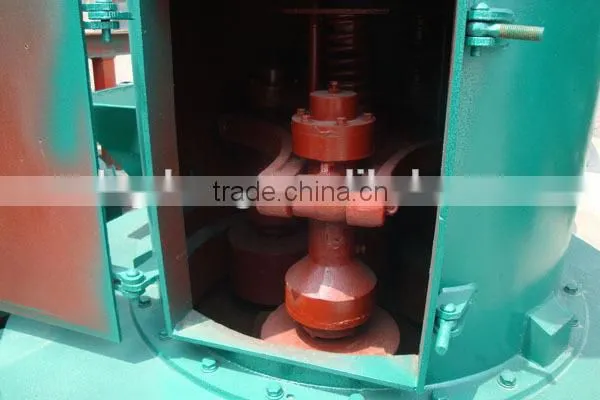

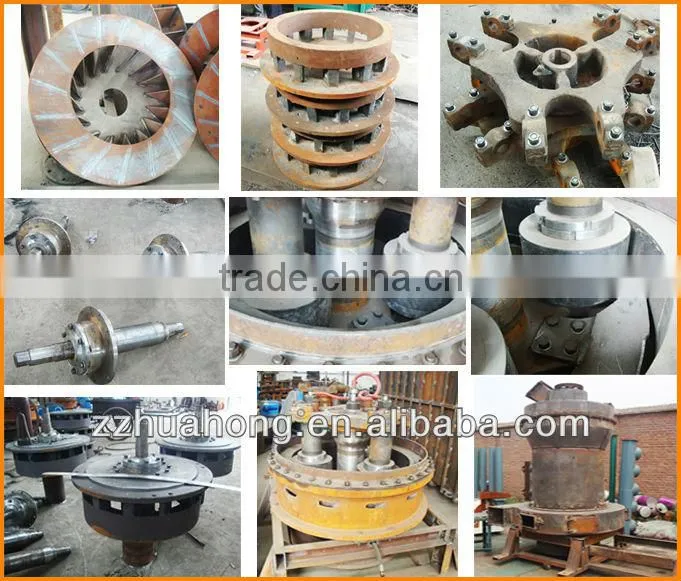

 Internal raw materials

2014 New raymond mill,raymond roller mill,raymond mill price

3R1410 Raymond mill

2014 New raymond mill,raymond roller mill,raymond mill price

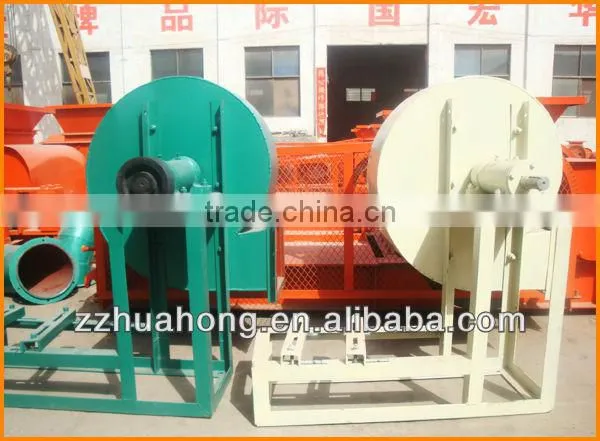

Air blower of 3R1410 raymond mill

2014 New raymond mill,raymond roller mill,raymond mill price

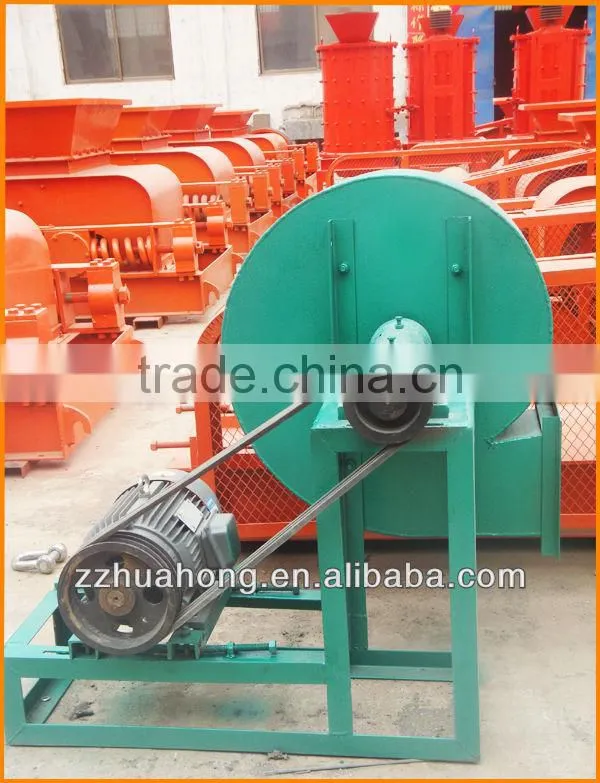

Air blower with motor

2014 New raymond mill,raymond roller mill,raymond mill price

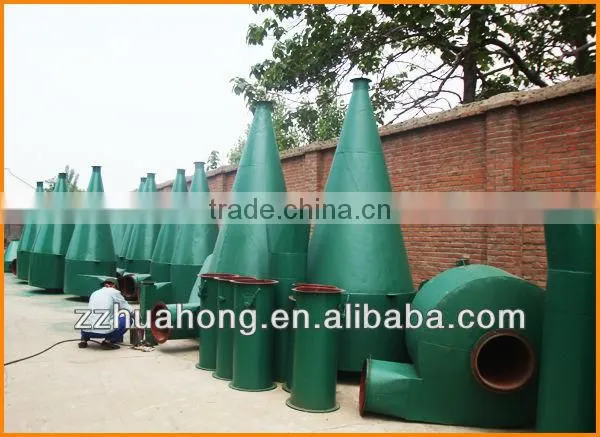

 Powder collector, air blowers and steel tubes

2014 New raymond mill,raymond roller mill,raymond mill price

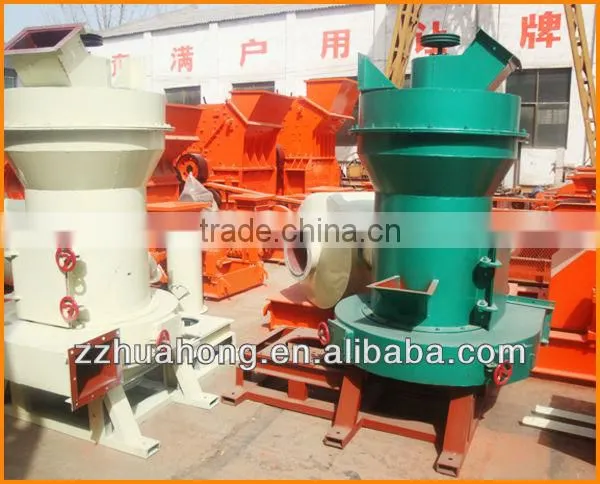

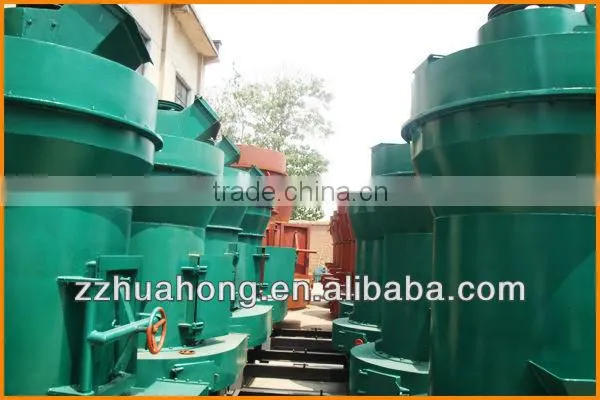

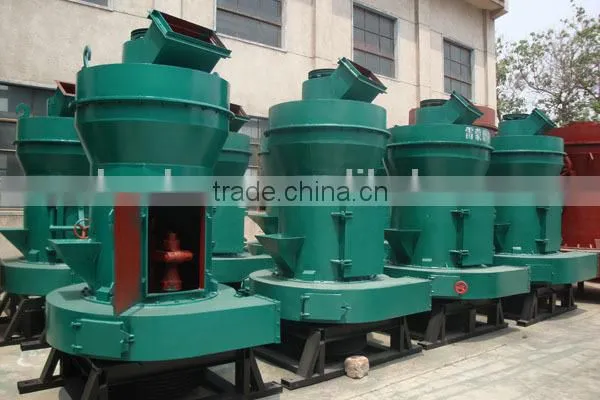

 Various raymond mills in our factory

2014 New raymond mill,raymond roller mill,raymond mill price

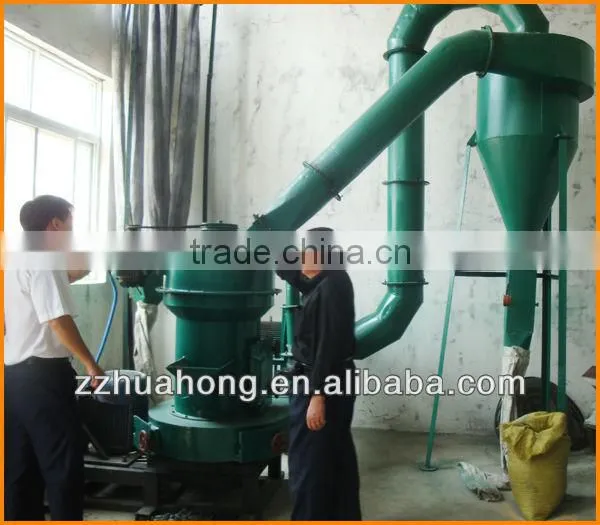

 Working site of mini raymond mill

2014 New raymond mill,raymond roller mill,raymond mill price

Working site of mini raymond mill

                                Welcome to visit our factory!

         We will provide you our best equipments at the

            reasonable price to meet your requirements.
