china supplyer sale Huahongexcellent perfor Raymond mill/raymond grinding mill price/powder grinding machine/raymond roller mill

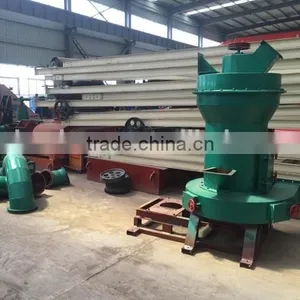

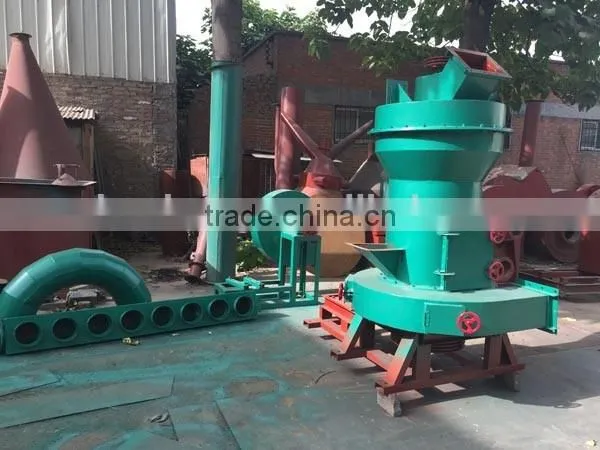

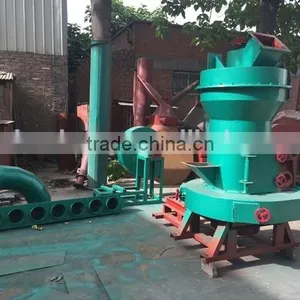

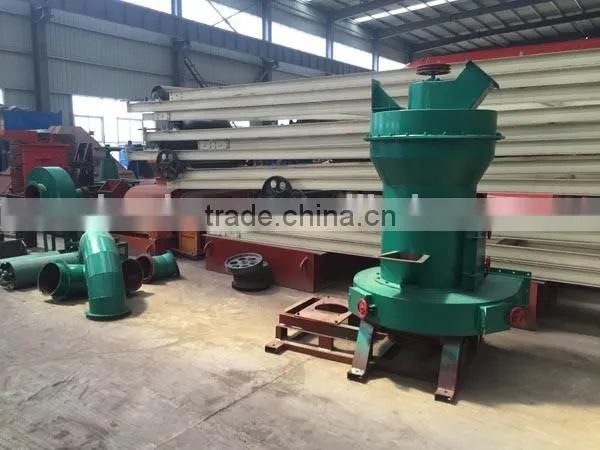

Raymond machine introduction
Raymond machine commonly used milling equipment, mainly used for barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation materials and other with hardness less than 9.3 and humidity below 6% non inflammable mineral, chemical, construction and other industries more than 280 kinds material high fine powder processing.
Advantage
1. Raymond mill the Raymond machine for vertical structure, the area is relatively small, the system, whether it is from rough machining of the raw material is transported to the milling and final packaging, can be an independent production system.
2. Raymond (Raymond Mill) compared with other milling equipment, its screen rate high, screening rates up to 99% is other milling equipment is generally not.
3. Raymond machine (Lei Mengmo) host transmission device adopts closed gearbox and belt wheel, transmission smooth, reliable operation.
4. Raymond Mill important parts are made of high quality casting and molding manufacture, sophisticated technology, strict process, to ensure the durability of the whole set of equipment.
The electrical system 5 Raymond Mill centralized control, mill shop basically no work can be realized, and the repair is convenient.
Working principle
Raymond mill working principle is grinding roller under the action of centrifugal force tightly rolled in grinding ring, by shovel knife to scrape up material sent to the grinding and grinding ring, material in the grinding pressure of broken into powder and in the role of wind machine to into powder material blown up through analysis of machine to achieve requirements of the fineness of the material through the analysis of machine, is not up to the requirements of the back grinding chamber to grinding, through analysis of material into the cyclone separating and collecting. The exhaust air exhaust time isolation industrial filter cloth into powder.
Applicable scope
Raymond mill, has the advantages of high efficiency, low energy consumption, small occupation area, less capital investment and no pollution to the environment. And is widely used in metallurgy, building materials, chemical industry, mining and other fields in mining materials of the grinding process, suitable for processing Mohs hardness below grade seven, humidity below 6% non flammable and explosive mineral, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, stone, bauxite, iron oxide red, iron ore and other, fineness between 613 micron ~440 microns (0.613mm -0.44 mm), through the analysis of turbine and can meet the requirements of different users.
Technical parameter of Raymond Mill:
Type | NO | Mater in grade (mm) | Fineness of product (mesh) | Capacity (t/h) |
Main power (kw) | Blower (kw) | Separator (kw) | Dimension (mm) |
3R1510 | 3 | 10 | 80-325 | 0.3-1.2 |
7.5 | 5.5 | 1.1 | 3200*2100*4500 |
3R2115 | 3 | 20 | 80-325 | 0.4-1.6 | 15 | 11 | 2.2 | 4100*3300*4500 |
3R2615 | 3 | 20 | 80-325 | 0.5-2.7 | 18.5 | 15 | 2.2 | 4300*3500*4500 |
3R2715 | 3 | 20 | 80-325 | 0.7-3 | 22 | 18.5 | 2.2 | 5300*4100*5200 |
4R3016 | 4 | 20 | 80-325 | 0.8-5 | 30 | 30 | 2.2 | 5300*4100*5200 |
4R3015 | 4 | 25 | 80-325 | 1.0-4 | 30 | 22 | 2.2 | 5500*4300*5400 |
4R3216 | 4 | 25 | 80-325 | 1.0-8 | 45 | 30 | 5.5 | 7100*5900*7900 |
4R3220 | 4 | 28 | 80-400 | 1-10 | 45 | 37 | 5.5 | 8000*6000*9500 |
5R4119 | 5 | 30 | 80-400 | 5-10 | 75 | 75 | 7.5 | 9200*7250*9700 |
6R4427 | 6 | 35 | 80-400 | 9-15 | 132 | 132 | 11 | 12550*5700*8355 |

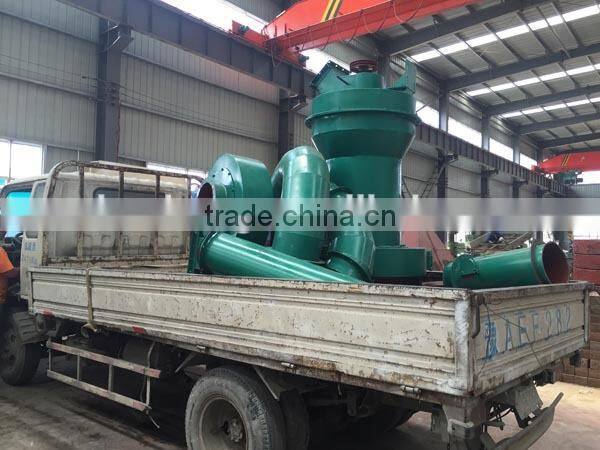

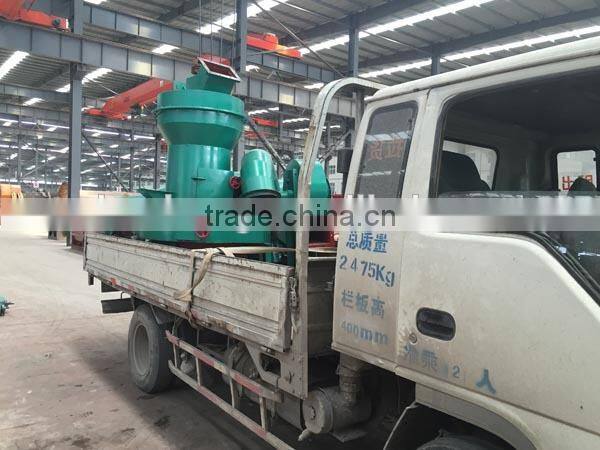

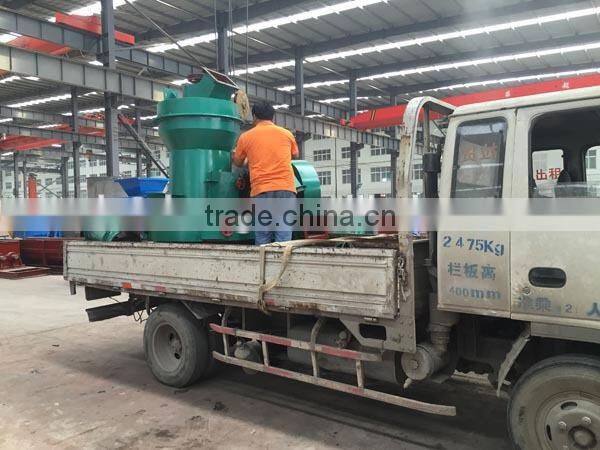

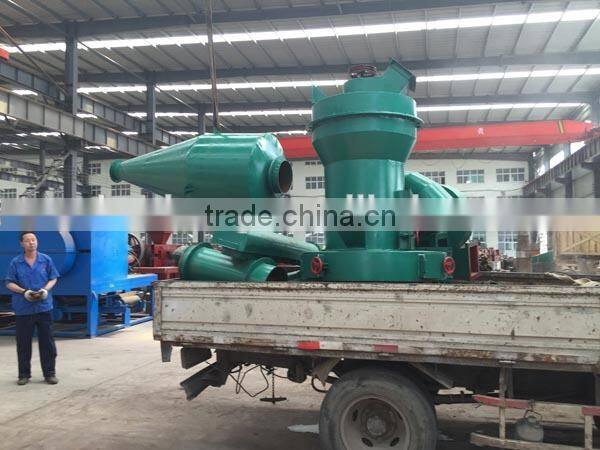

our raymond mill delivery
We are factory direct sales, our company can customize professional product according to customer 's requirements .
welcome to visit our factory !
