High quality Raymond mill machine,The Raymond Mill for quartz
Zhengzhou Huahong Machinery Co., Ltd is a manufacturer and trader specialized in the R&D and production of machinery for nearly 30 years.
Specifications
The Largest Pendulum Roller Grinding Mill in Asia.
Production Capacity:20-45T/H
Fneness:100-500 Mesh
Application of The Raymond Mill in Asia :
Also choice for nonflammable and non-explosive minerals of which Moh’s hardness is less than 9.3, moisture content is less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, Rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, Zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite.
Working Principles of The Raymond Mill in Asia :

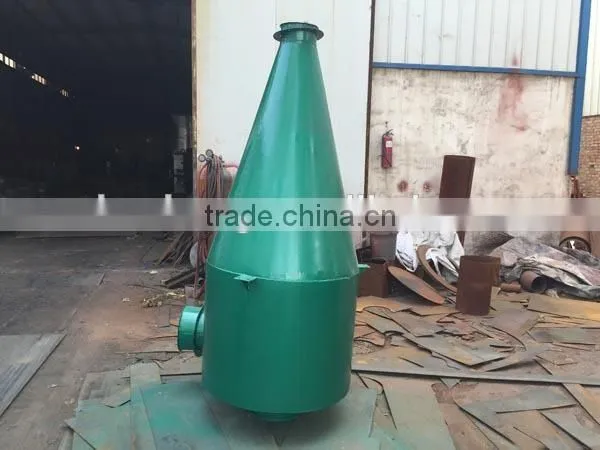

Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Advantages of The Raymond Mill in Asia :
1) The only professional producer of Raymond Mill in China.
2) Powder-saving and Higher Production Capacity (1-40T/H)
3) Smooth and Reliable Performance.
4) Fineness: 100—800 Mesh (Adjustable)
5) Run for 1000 hours without Lubrication
Technical parameters of Raymond Mill:
Type |
NO. |
Mater in grade (mm) |
Fineness of product (mesh) |
Capacity (t/h) |
Main power (kw) |
Blower (kw) |
Separator (kw) |
Dimension (mm) |
3R1510 |
3 |
10 |
80-325 |
0.3-1.2 |
7.5 |
5.5 |
1.1 |
3200*2100*4500 |
3R2115 |
3 |
20 |
80-325 |
0.4-1.6 |
15 |
11 |
2.2 |
4100*3300*4500 |
3R2615 |
3 |
20 |
80-325 |
0.5-2.7 |
18.5 |
15 |
2.2 |
4300*3500*4500 |
3R2715 |
3 |
20 |
80-325 |
0.7-3 |
22 |
18.5 |
2.2 |
5300*4100*5200 |
4R3016 |
4 |
20 |
80-325 |
0.8-5 |
30 |
30 |
2.2 |
5300*4100*5200 |
4R3015 |
4 |
25 |
80-325 |
1.0-4 |
30 |
22 |
2.2 |
5500*4300*5400 |
4R3216 |
4 |
25 |
80-325 |
1.0-8 |
45 |
30 |
5.5 |
7100*5900*7900 |
4R3220 |
4 |
28 |
80-400 |
1-10 |
45 |
37 |
5.5 |
8000*6000*9500 |
5R4119 |
5 |
30 |
80-400 |
5-10 |
75 |
75 |
7.5 |
9200*7250*9700 |
6R4427 |
6 |
35 |
80-400 |
9-15 |
132 |
132 |
11 |
12550*5700*8355 |

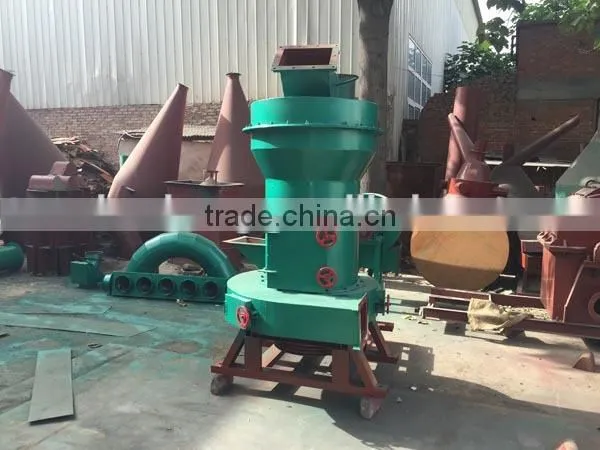

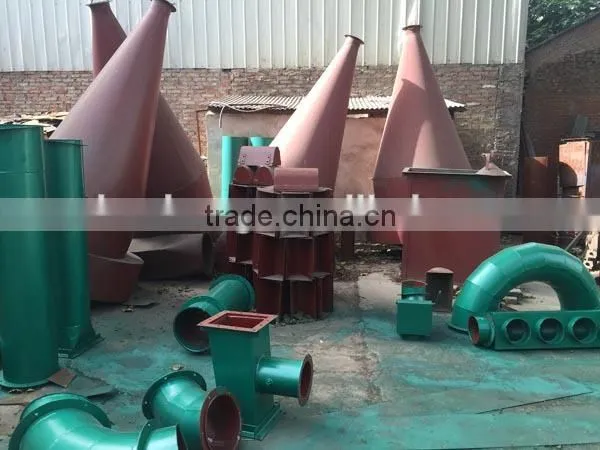

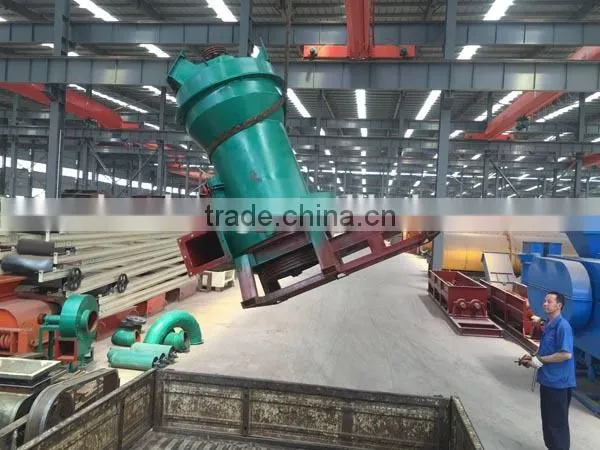

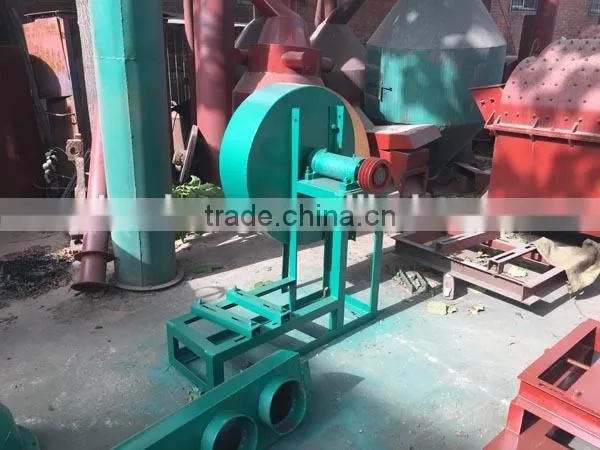

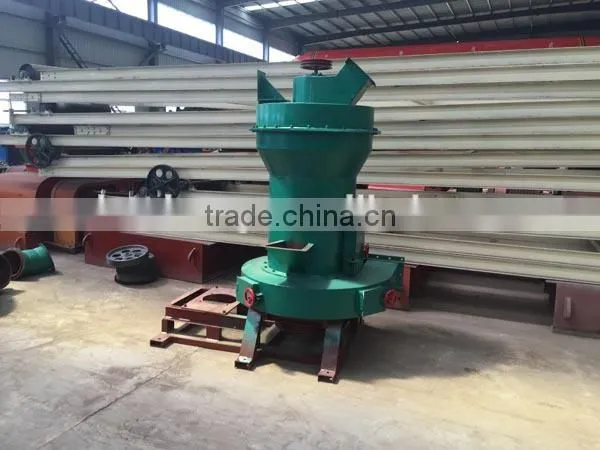

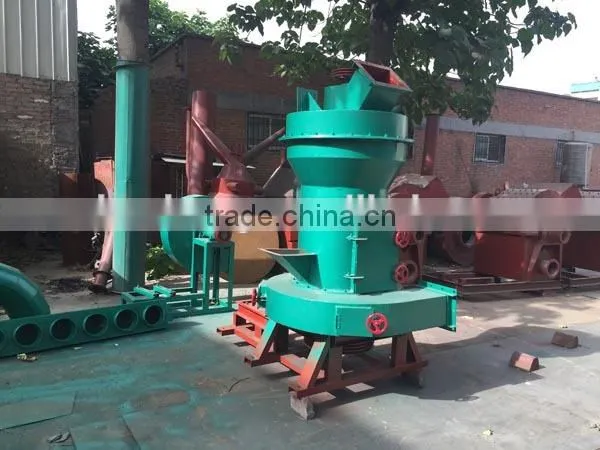

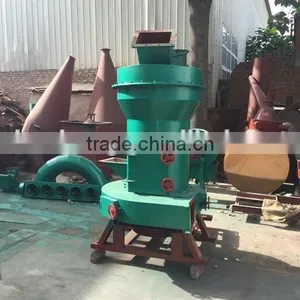

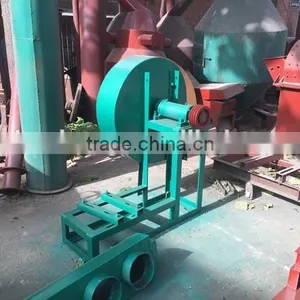

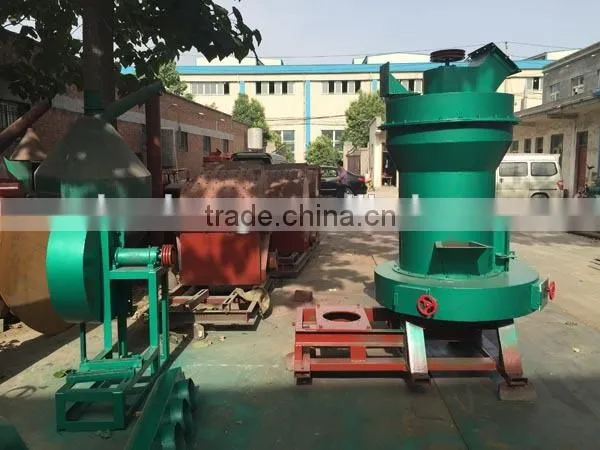

Raymond mill display
we are manufacture ,we can make machine according your requirement
If you want to know about it please contact me,we will provide for you with the most favourable price
