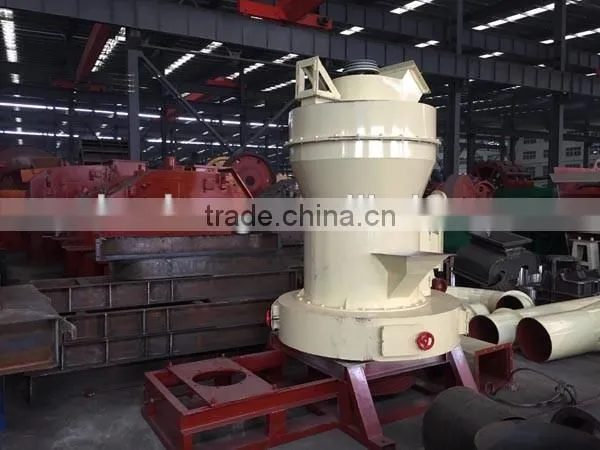

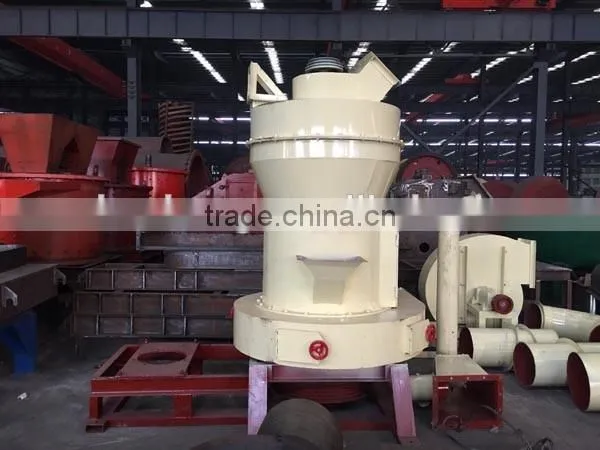

Raymond mill machine, grinding mills for sale,gold mining mills
The introduce of raymond mill ,grinding mill for sale
This type raymond mill zenith is mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite,barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassiumore pumice, etc
Working principle of Raymond mill , grinding mills for sale
With the centrifugal force, the roller of raymond mill is tightly rolled on the milling ring. The materials are scooped up between the milling roller and the milling ring by the shovel blade and are crushed into powder by the grinding pressure. The powder materials will be delivered to the analytical engine by the blower. The materials with qualified fineness will be delivered to the analytical engine, and unqualified materials will return to the grinding chamber for continuous milling. The materials through the analytical engine will be separated and collected in the cyclone separator.
Technical parameters of Raymond Mill:
Type |
NO. |
Mater in grade (mm) |
Fineness of product (mesh) |
Capacity (t/h) |
Main power (kw) |
Blower (kw) |
Separator (kw) |
Dimension (mm) |
3R1510 |
3 |
10 |
80-325 |
0.3-1.2 |
7.5 |
5.5 |
1.1 |
3200*2100*4500 |
3R2115 |
3 |
20 |
80-325 |
0.4-1.6 |
15 |
11 |
2.2 |
4100*3300*4500 |
3R2615 |
3 |
20 |
80-325 |
0.5-2.7 |
18.5 |
15 |
2.2 |
4300*3500*4500 |
3R2715 |
3 |
20 |
80-325 |
0.7-3 |
22 |
18.5 |
2.2 |
5300*4100*5200 |
4R3016 |
4 |
20 |
80-325 |
0.8-5 |
30 |
30 |
2.2 |
5300*4100*5200 |
4R3015 |
4 |
25 |
80-325 |
1.0-4 |
30 |
22 |
2.2 |
5500*4300*5400 |
4R3216 |
4 |
25 |
80-325 |
1.0-8 |
45 |
30 |
5.5 |
7100*5900*7900 |
4R3220 |
4 |
28 |
80-400 |
1-10 |
45 |
37 |
5.5 |
8000*6000*9500 |
5R4119 |
5 |
30 |
80-400 |
5-10 |
75 |
75 |
7.5 |
9200*7250*9700 |
6R4427 |
6 |
35 |
80-400 |
9-15 |
132 |
132 |
11 |
12550*5700*8355 |
we are manufacture ,we can make machine according your requirement
If you want to know about it please contact me,we will provide for you with the most favourable price
