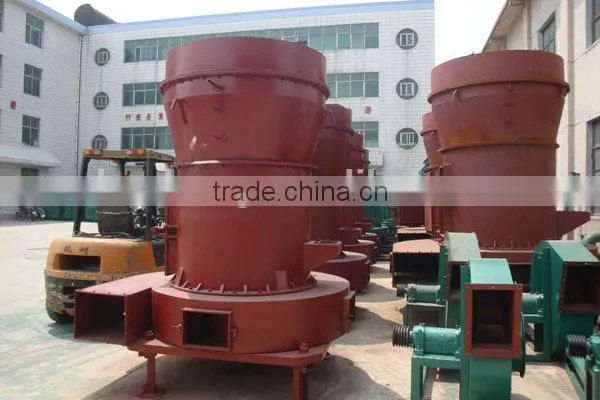

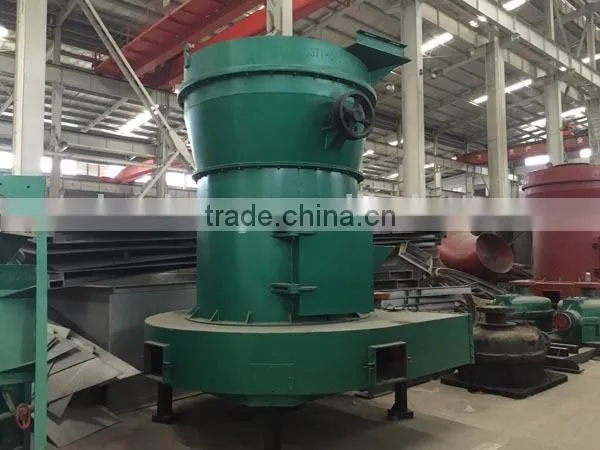

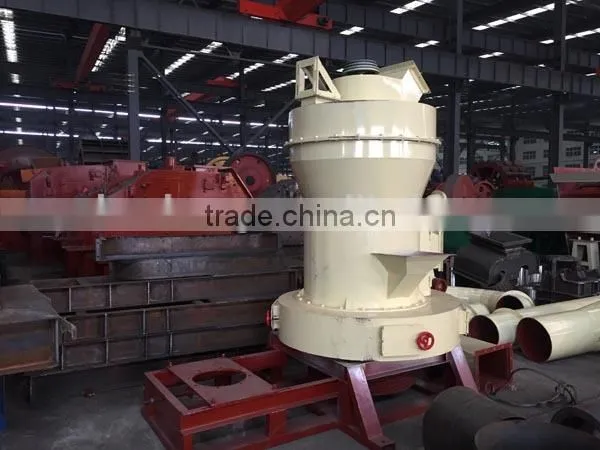

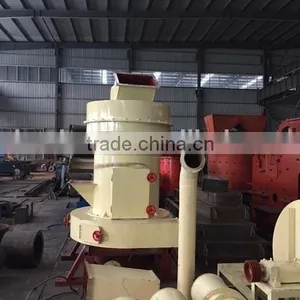

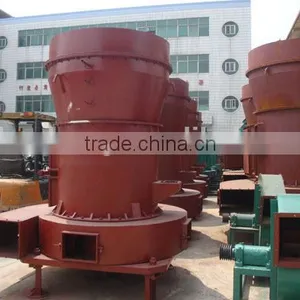

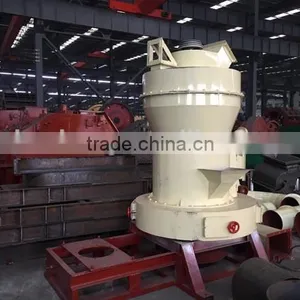

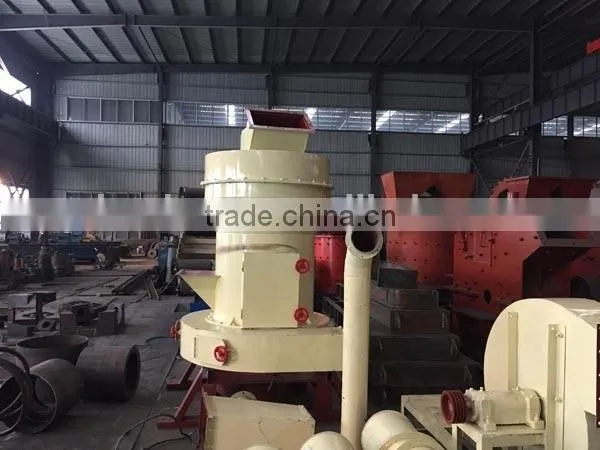

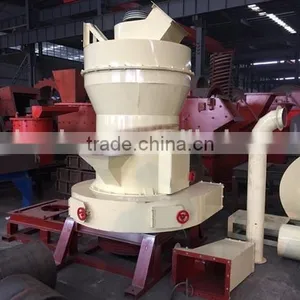

Help CenterHigh Capacity Ore Milling Equipment Raymond Mill,Raymond Grinding Mill With Competitive Price for Sale
Related Products
-
Stone Grinder Mill, Raymond Mill .100-325mesh Powder Mill for Sale With ISO & CEUS$ 5,000 - 50,000MOQ: 1 Set -
High Capacity Raymond Vertical Mill/ Powder Making Machine With Low Price and ISO & CEUS$ 5,000 - 50,000MOQ: 1 Set
-
China Supplier Best Quality Raymond Mill, Raymond Grinding Mill With ISO & CE for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
Raymond Mill Machine, Grinding Mills for Sale,gold Mining MillsUS$ 1,000 - 3,500MOQ: 1 Set
-
Gypsum Powder Making Machine for SaleUS$ 1 - 3,800MOQ: 1 Set

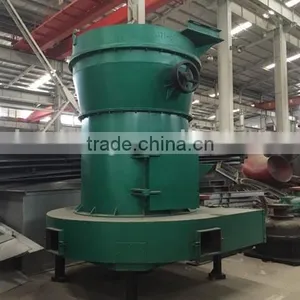

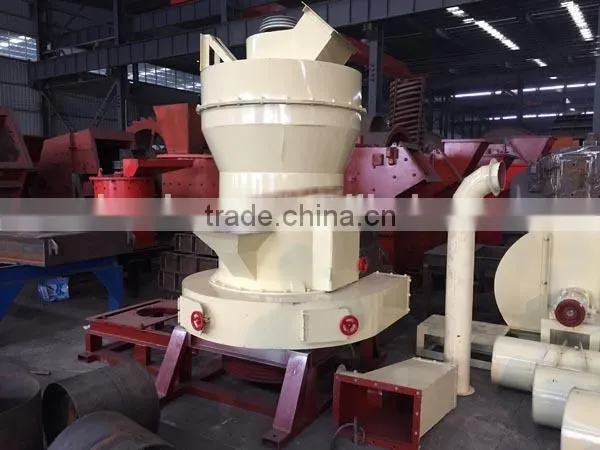

The introduce of raymond mill ,grinding mill for sale
This type raymond mill zenith is mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite,barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassiumore pumice, etc
Working principle of Raymond mill , grinding mills for sale
With the centrifugal force, the roller of raymond mill is tightly rolled on the milling ring. The materials are scooped up between the milling roller and the milling ring by the shovel blade and are crushed into powder by the grinding pressure. The powder materials will be delivered to the analytical engine by the blower. The materials with qualified fineness will be delivered to the analytical engine, and unqualified materials will return to the grinding chamber for continuous milling. The materials through the analytical engine will be separated and collected in the cyclone separator.
Technical parameters of Raymond Mill:
Type |
NO. |
Mater in grade (mm) |
Fineness of product (mesh) |
Capacity (t/h) |
Main power (kw) |
Blower (kw) |
Separator (kw) |
Dimension (mm) |
3R1510 |
3 |
10 |
80-325 |
0.3-1.2 |
7.5 |
5.5 |
1.1 |
3200*2100*4500 |
3R2115 |
3 |
20 |
80-325 |
0.4-1.6 |
15 |
11 |
2.2 |
4100*3300*4500 |
3R2615 |
3 |
20 |
80-325 |
0.5-2.7 |
18.5 |
15 |
2.2 |
4300*3500*4500 |
3R2715 |
3 |
20 |
80-325 |
0.7-3 |
22 |
18.5 |
2.2 |
5300*4100*5200 |
4R3016 |
4 |
20 |
80-325 |
0.8-5 |
30 |
30 |
2.2 |
5300*4100*5200 |
4R3015 |
4 |
25 |
80-325 |
1.0-4 |
30 |
22 |
2.2 |
5500*4300*5400 |
4R3216 |
4 |
25 |
80-325 |
1.0-8 |
45 |
30 |
5.5 |
7100*5900*7900 |
4R3220 |
4 |
28 |
80-400 |
1-10 |
45 |
37 |
5.5 |
8000*6000*9500 |
5R4119 |
5 |
30 |
80-400 |
5-10 |
75 |
75 |
7.5 |
9200*7250*9700 |
6R4427 |
6 |
35 |
80-400 |
9-15 |
132 |
132 |
11 |
12550*5700*8355 |
| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
ISO9001:2008
CE certificate
