HUAHONG wet drum permanent magnetic separator mining magnetic separator
- 60 Set / Sets per Month
- shanghai tianjin qingdao
- T/T L/C D/P D/A Credit Card PayPal
- HUAHONG professional and reliable iron ore wet magnetic separator of China Manufacture, hematite magnetic machine
- HUAHONG High Gauss ferromagnetic iron ore wet magnetic separator of China Manufacture, hematite magnetic machine
- HUAHONG High Strength Permanent Wet/Dry Magnetic Separator With High Recovery
- HUAHONG dry and wet magnetic separator /rotary magnetic separator with 100% quality guarantee and cheapest price
- HUAHONG dry and wet magnetic separator for gold, iron ore, mine
- HUAHONG dry and wet magnetic separator for gold ore with long service time and better property
Product Details
Condition: | New | Type: | Magnetic Separator | Place of Origin: | Henan, China |
Brand Name: | HUAHONG | Voltage: | 220v,380V | Certification: | ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude packs, in bulk or others
Product Description
Brief introduction of wet magnetic separator
This series of magnetic separator is used in wet magnetic separation of materials with granularity below 3mm like magnetite, manganese ore, limonite, bake ore and etc. They remove contaminants from the product stream, increasing product purity and plant productivity. In the applications where the product purity is most essential the wet drum separators can use powerful rare earth magnets which can remove very fine and weak contaminants even from dense materials.
According to customers’ demands, it can provide magnetic separation with different magnetic induction like forward flow, semi counter flow and counter flow. The products have features, such as simple structure, high yield, convenient operation and easy maintenance.
Wet magnetic separator features:
(1) Wet drum magnets have high magnetic recovery and discharge.
(2) The feed slurries recover the magnetic.
(3) It is available in single or multiple drum applications.
(4) Recover magnetic solids in as clean as a magnetic concentrate.
(5) Permanent magnet assembly eliminates coil burn-outs
(6) The magnet/pole elements are bolted to a mild steel shaft.
(7) The drum is made from thick stainless steel for long service life.
(8) Wet drum separators are available in different configuration like single drum, double drum and multiple drum. In double drum two separators are arranged back to back with a common feed back.
Main Technical Parameters of magnetic separator:
Model |
Barrel Diameter (mm) |
Barrel Length(mm) | Capacity(t/h) |
Barrel Rotate Speed (r/min) |
Motor Power(kw) | Weight(kg) |
CTB618 | 600 | 1800 | 18-35 | 40 | 2.2 | 1655 |
CTB712 | 750 | 1200 | 12-30 | 35 | 3 | 1682 |
CTB718 | 750 | 1800 | 20-45 | 35 | 3 | 1992 |
CTB918 | 900 | 1800 | 28-60 | 27 | 4 | 3162 |
CTB1018 | 1050 | 1800 | 36-72 | 22 | 4 | 3801 |
CTB1024 | 1050 | 2400 | 52-100 | 22 | 5.5 | 4319 |
CTB1030 | 1050 | 3000 | 64-125 | 22 | 7.5 | 4976 |
CTB1218 | 1200 | 1800 | 55-95 | 19 | 7.5 | 5263 |
CTB1224 | 1200 | 2400 | 65-110 | 19 | 7.5 | 5927 |
CTB1230 | 1200 | 3000 | 85-120 | 19 | 7.5 | 6325 |
CTB1530 | 1500 | 3000 | 95-160 | 16 | 11 | 8665 |
CTB1540 | 1500 | 4000 | 120-190 | 16 | 11 | 9871 |

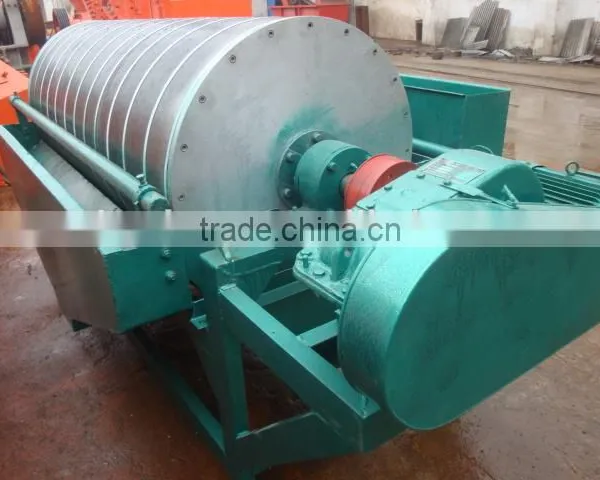

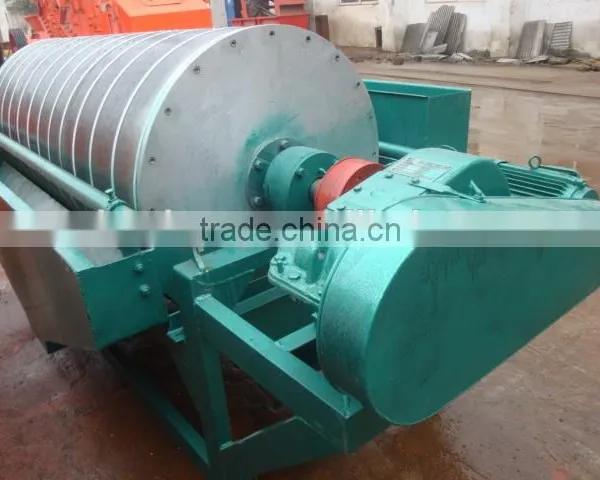

View of magnetic separator:
Minging magnetic separator flowchart
Structure of magnetic separator:
Working condition :
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
HUAHONG equipment machinary Co,.Ltd of Zhengzhou .this is a mainly in production of large medium-size crusher (broken flour mill ) , research & development, production , sales as one of a limited liability company.
1.The main productd of our company include more than 10 series: sand making machine , hammer crusher, mobile crushing plant , vibrating feeder , linear vibrating screen , stone washing machine , ball mill ,etc..
2.Widely used in mining , coal , chemical , metallurgy , building materials and other industries.
3.Our company has a large number of rich-experience and professional staff.Reliable quality and nice service make our company enjoys a good reputation overseas.Which has been sold in Hongkong , Indonesia , Russia, Australia and other countries.
4.The product has approved by ISO9001:2000 international quality system.
